Overview

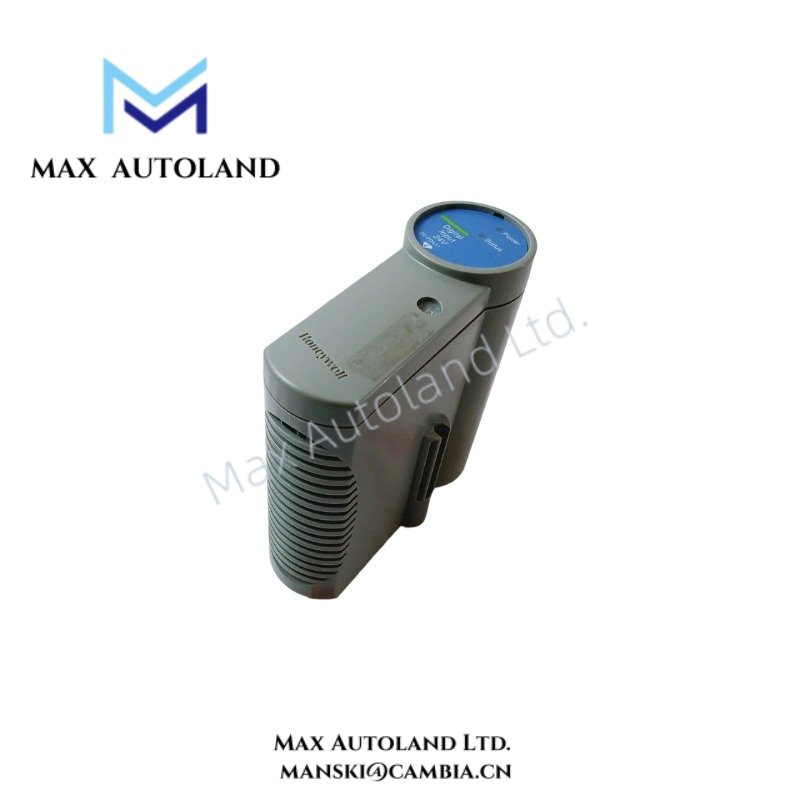

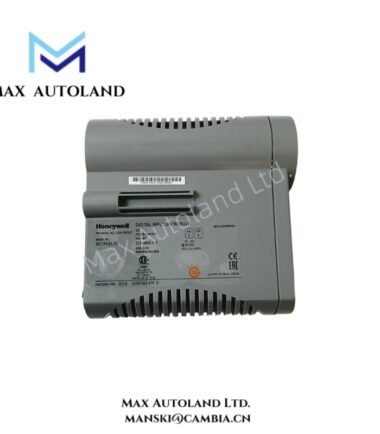

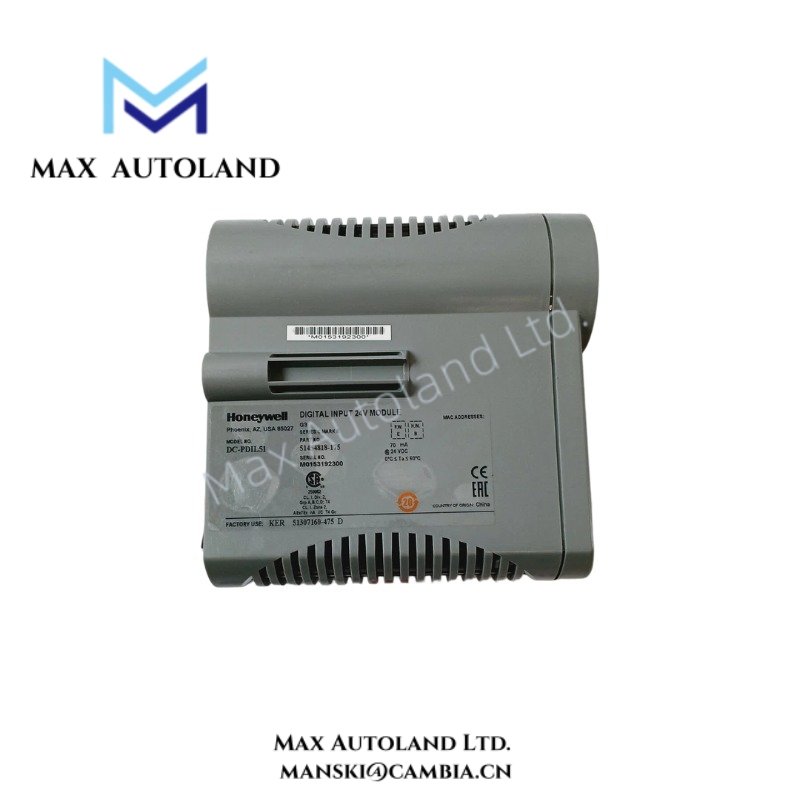

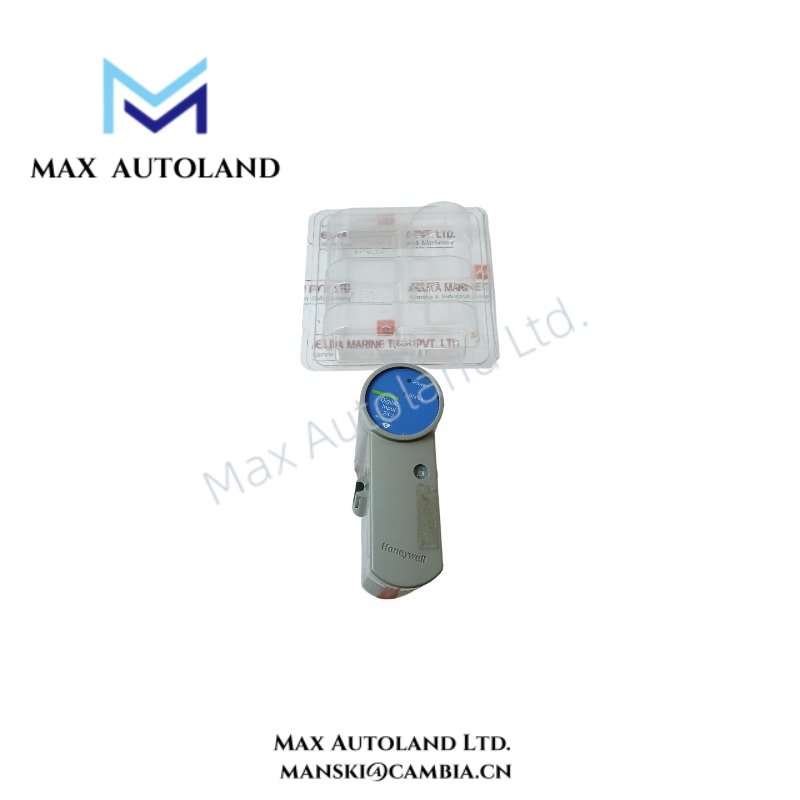

Configured for 32-channel digital input acquisition in Honeywell Experion PKS and related DCS I/O architectures, the Honeywell DC-PDIL51 51454818-175 (DC-PDIL51 Digital Input Module) provides direct electrical interface for 18 to 30 VDC field signals through optical isolation and integrated input filtering.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DC-PDIL51 51454818-175 |
| Brand | Honeywell |
| Product Type | Digital Input Module |
| Origin | USA |
| Weight | 0.3 kg |
| Dimensions | 6 x 15.7 x 14.2 cm |
| Input Channels | 32 |
| Input Voltage Range | 18 to 30 VDC |
| ON Sense Threshold | 13 VDC minimum or 3 mA minimum |
| OFF Sense Threshold | 5 VDC maximum or 1.2 mA maximum |
| Input Impedance | 4.2 kOhm |
| Galvanic Isolation | 1000 VAC RMS |
| Isolation Technique | Optical (in IOM) |
| Input Filter Delay | 5 ms ±20% |
| Field Resistance for Guaranteed ON | 300 Ohm maximum at 15 VDC |
| Operating Temp | Not specified in provided data |
| Power Consumption | Not specified in provided data |
Channel Isolation and Diagnostic Functions
This module uses optical isolation within the I/O module assembly to separate field wiring from the internal control electronics. The 1000 VAC RMS galvanic isolation rating reduces the propagation of field-side electrical disturbances into the controller backplane.
Integrated diagnostics monitor input signal integrity and module operation. The module supports:
- Direct or reverse input indication
- Internal or external field power selection
- Non-incendive field power supply capability
- Optional redundancy configurations
- Internal diagnostic monitoring for data integrity
Open-wire detection is not provided for this model.
Frequently Asked Questions
Q: What field signal range is accepted by the module?
A: The module is designed for 18 to 30 VDC digital input signals with ON recognition at 13 VDC minimum or 3 mA minimum.
Q: Does the module provide galvanic isolation?
A: Yes. It provides 1000 VAC RMS galvanic isolation using optical isolation within the I/O module.
Q: Is open-wire detection available on the DC-PDIL51?
A: No. The provided specifications explicitly state that open-wire detection is not included.
Field Installation Guidelines
- Verify that field supply voltage remains within the 18 to 30 VDC operating range before energizing the module.
- Use shielded field wiring where required by the site grounding standard and terminate shields according to the plant grounding philosophy.
- Maintain separation between low-level signal wiring and higher-energy power conductors to reduce coupled electrical noise.
- Confirm polarity when using direct or reverse input indication modes during commissioning.
- When redundancy is implemented, validate wiring symmetry and module addressing before placing the redundant channel into service.
