Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TAON11 |
| Brand | Honeywell |
| Origin | USA |
| Part Number | 51306521-175 |
| System Compatibility | Honeywell Experion PKS Series C / C300 Controller |
| Signal Type | Analog Output, 4-20 mA DC / 0-10 VDC |
| Channel Capacity | Supports Series C Analog Output modules according to connected IOM configuration |
| Operating Voltage | 24 VDC supplied through Series C IOTA carrier and bus connection |
| Weight | Approx. 0.56 kg |
| Dimensions | Approx. 3.0 cm x 31.3 cm x 27.8 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Supplied through connected Series C I/O infrastructure; consumption depends on installed IOM module |
Process Control Analog Signal Interface Characteristics

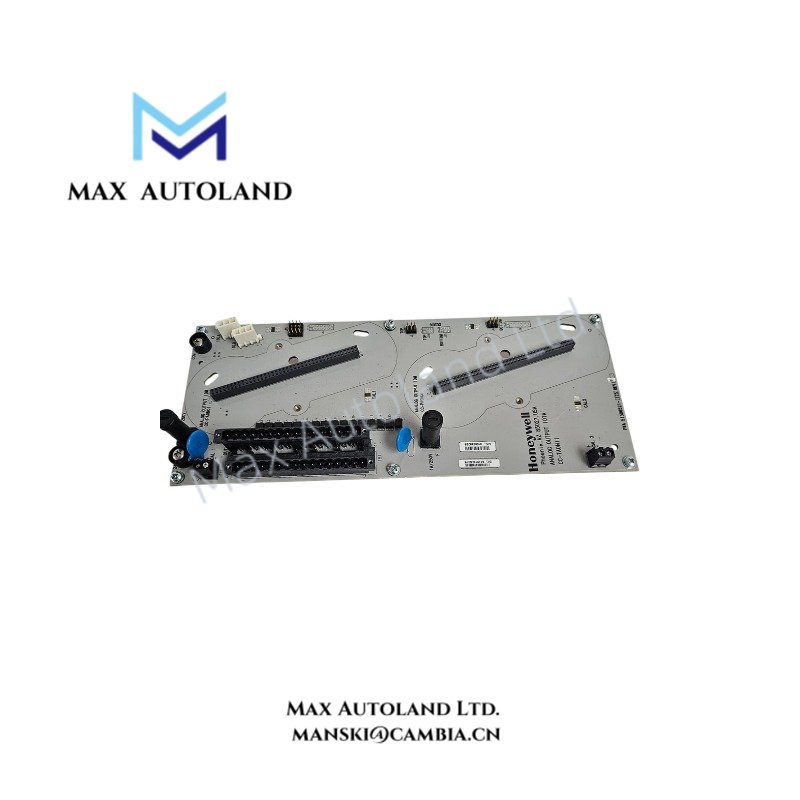

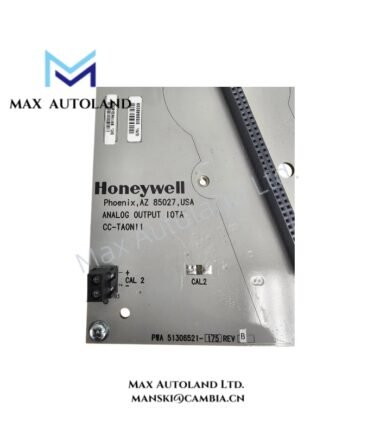

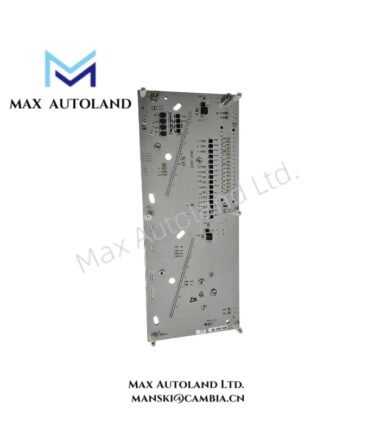

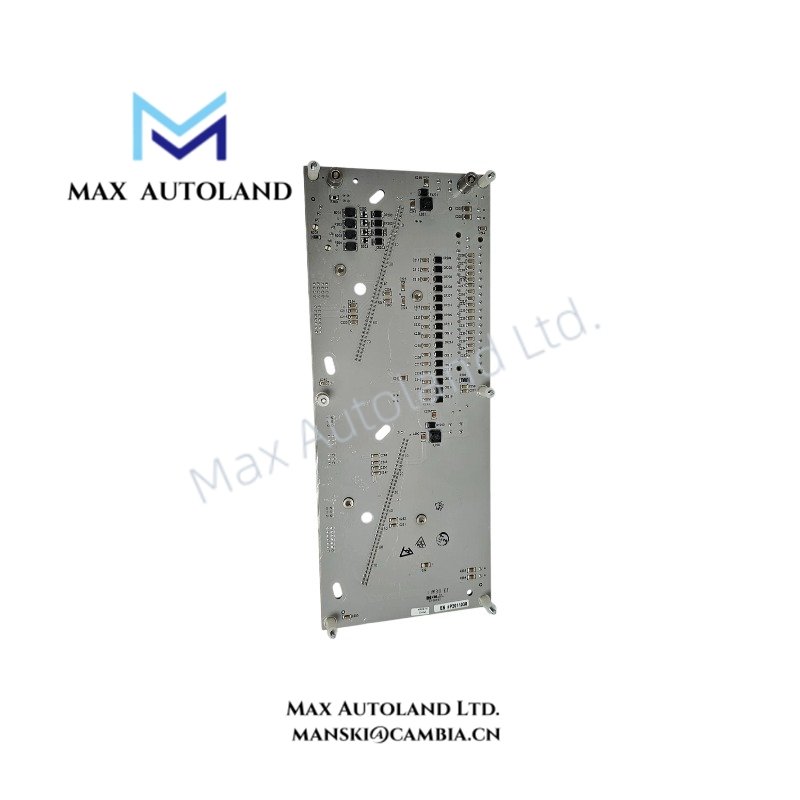

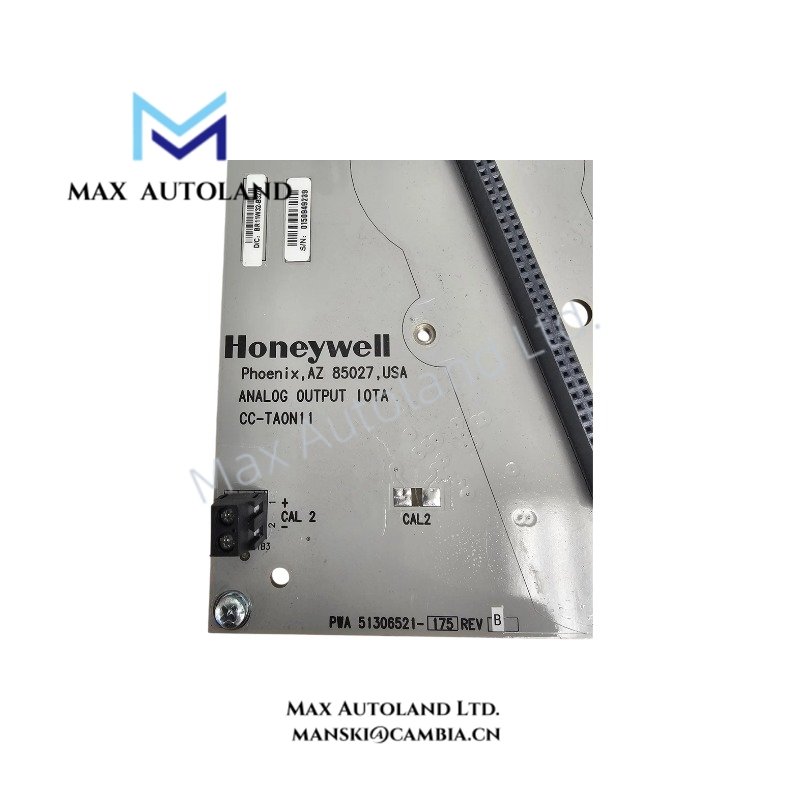

The Honeywell CC-TAON11 provides direct termination between field analog output devices and Series C Analog Output modules. It routes control signals from the IOM to field equipment such as control valves, actuators, and positioners.
In addition, the assembly supports Honeywell process control signal standards, including 4-20 mA current loop transmission and voltage output interfaces. The IOTA design minimizes external marshalling requirements because it integrates field wiring termination, module connection, and signal distribution functions on one hardware assembly.
Furthermore, the analog output interface maintains channel separation through structured terminal routing. This configuration helps reduce wiring complexity inside control cabinets and supports organized DCS panel layouts.
Frequently Asked Questions
Q: Does the CC-TAON11 support redundant analog output operation?
A: No. The CC-TAON11 is a non-redundant Analog Output IOTA designed for single-channel interface configurations.
Q: Can the CC-TAON11 operate as a standalone analog output module?
A: No. The assembly functions as a termination interface and requires a compatible Honeywell Series C Analog Output module and IOTA carrier connection.
Q: What field signals can connect through the CC-TAON11?
A: The assembly supports analog output signals such as 4-20 mA DC and 0-10 VDC interfaces according to the connected Series C Analog Output module specifications.
Field Installation Guidelines
Install the CC-TAON11 on the Honeywell Series C I/O carrier using the specified mechanical mounting arrangement. Verify that the connected Analog Output module matches the configured IOTA type before applying power.
Route field signal cables separately from high-voltage power conductors to reduce electrical interference. Use proper shield termination practices according to the plant grounding standard, and connect cable shields at the designated grounding point.
Confirm terminal wiring, polarity, and channel assignments before commissioning. Inspect the module seating connection and verify that the IOTA assembly is fully engaged with the corresponding I/O hardware.
Avoid unauthorized modifications to terminal wiring or internal circuitry because the assembly is designed for a defined Experion PKS Series C hardware configuration.
