Overview

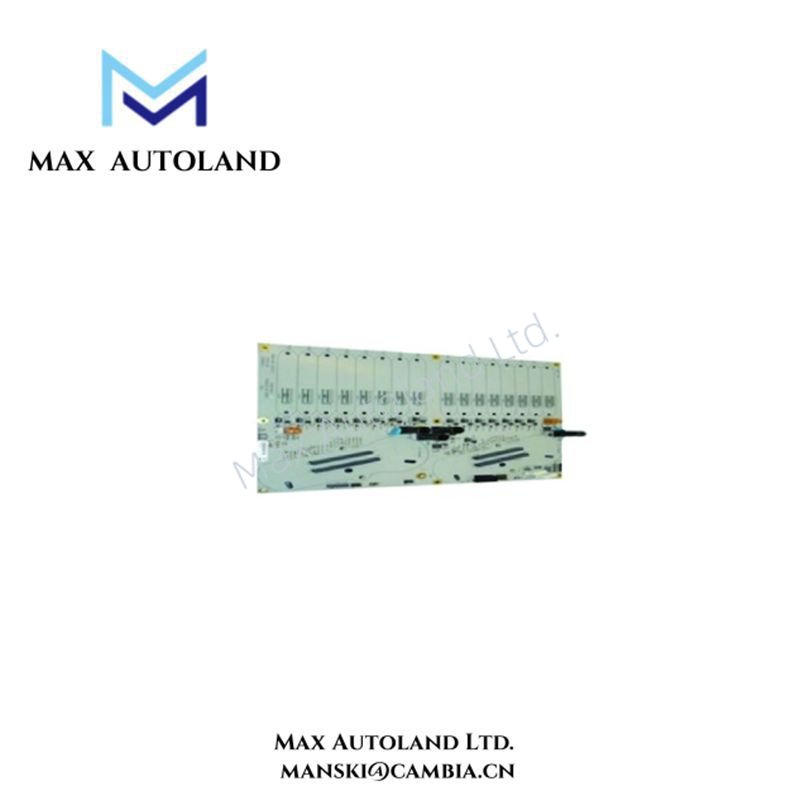

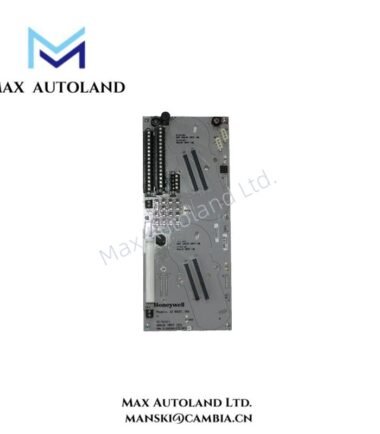

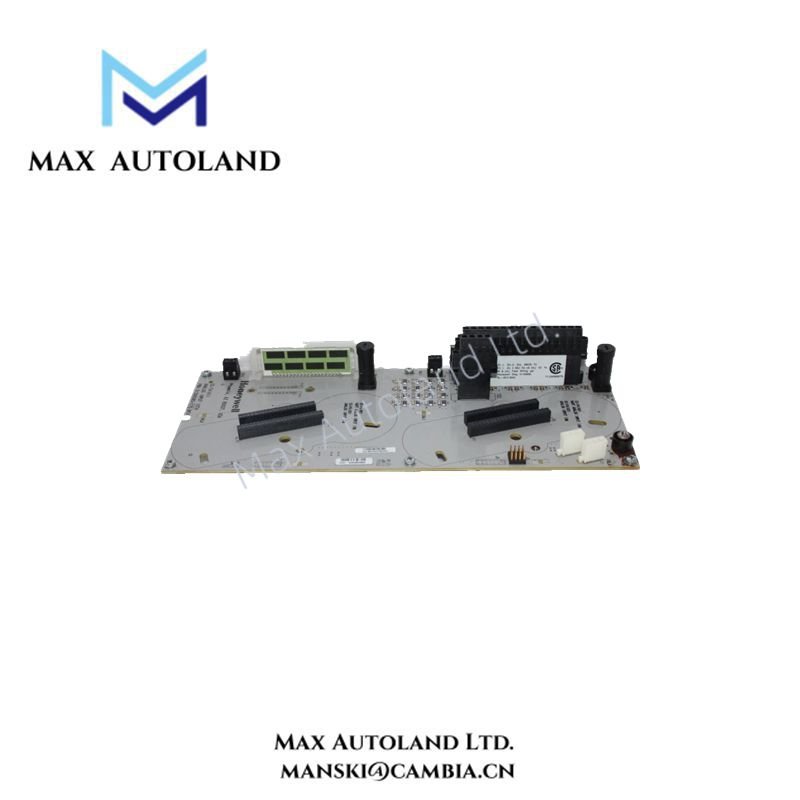

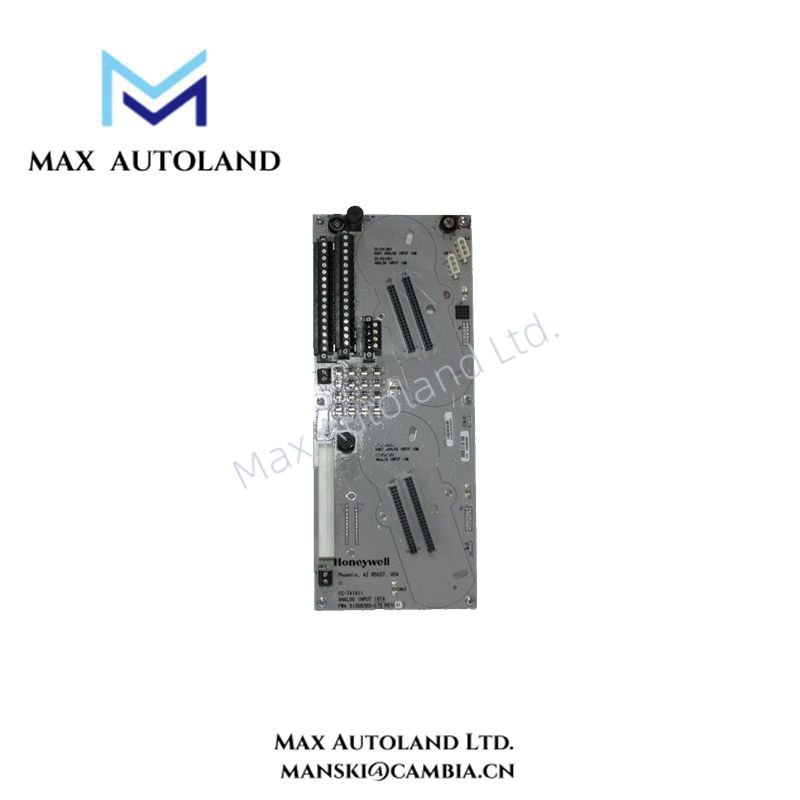

The Honeywell CC-GAOX11 is a redundant analog output IOTA module from the Experion Series C, designed to deliver 16 channels of high-level 4–20 mA signals. It provides precise control for actuators and recording/indicating devices, ensuring safe and reliable operation in demanding industrial automation applications. Additionally, the module supports HART-enabled multivariable instruments and configurable FAILOPT behaviors for enhanced process safety.
The Analog Output (AO) Module delivers high-level constant current to actuators and recording/indicating devices.
Specification
| Parameter | Specification |
|---|---|
| Model | CC-GAOX11 |
| IOTA Size | Redundant 12” |
| Output Channels | 16 |
| Output Type | 4–20 mA |
| Output Ripple | <100 mV peak-to-peak at 250 Ω load |
| Temperature Drift | 0.005% of Full Scale/°C |
| Readback Accuracy | ±4% of Full Scale |
| Current Linearity | ±0.05% of Full Scale nominal |
| Resolution | ±0.05% of Full Scale |
| Calibrated Accuracy | ±0.35% of Full Scale at 25°C including linearity |
| Directly Settable Range | 0 mA, 2.9 mA to 21.1 mA |
| Maximum Resistive Load | 800 Ω (24 V supply: 22–28 V DC) |
