Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-SCMB05 |
| Brand | Honeywell |
| Product Type | Memory Backup Module |
| System Platform | Honeywell Experion PKS C300 Series |
| Module Function | C300 controller memory backup assembly |
| Origin | USA |
| Weight | 0.12 kg |
| Dimensions | 14 x 18.8 x 6.5 cm |
| Operating Temp | 0 deg C to 70 deg C |
| Power Consumption | 24 VDC supply, 150 mA current draw |
| Power Requirements | 24 V DC |
| Tariff Code | 8537101190 |
| Shipment Location | Xiamen, China |
C300 Controller Memory Retention Function

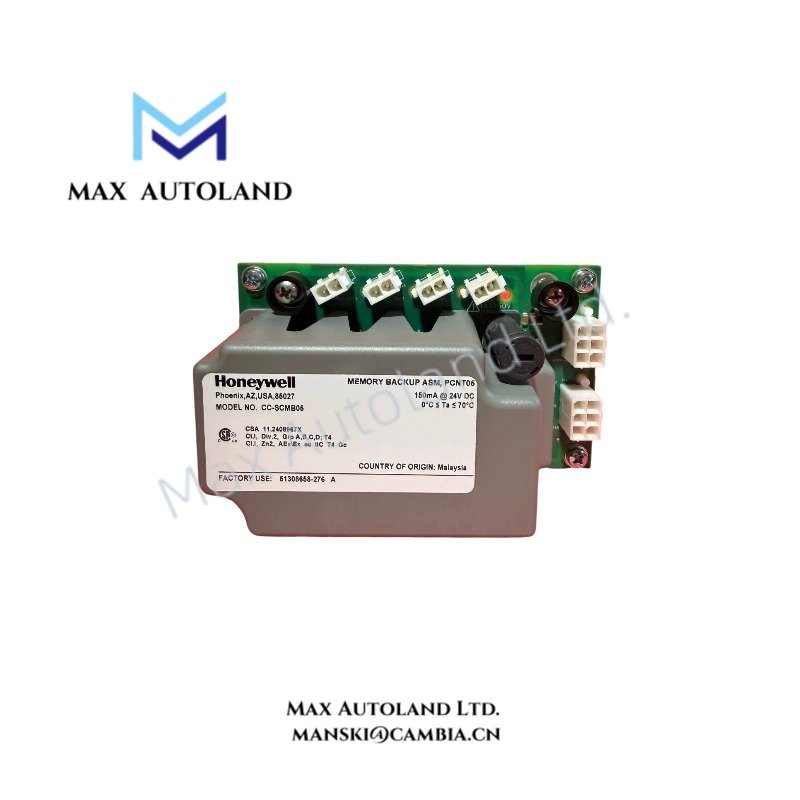

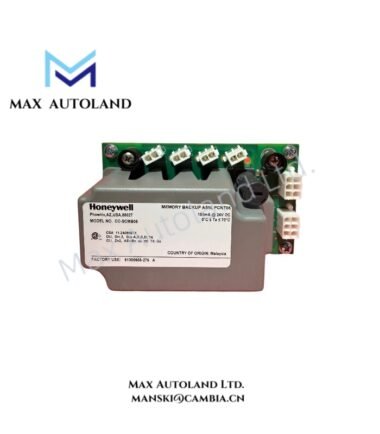

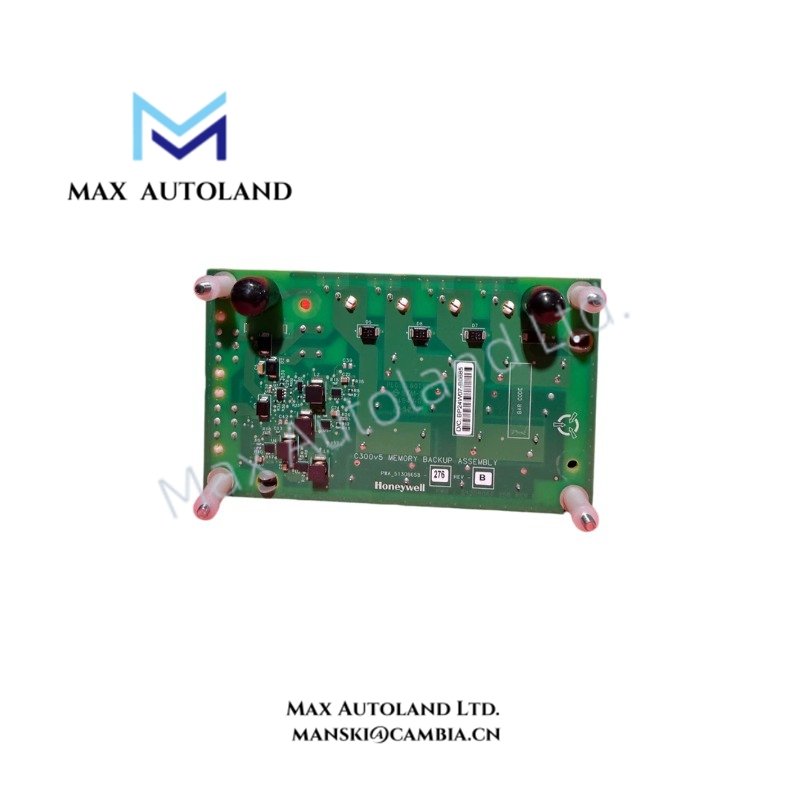

The Honeywell CC-SCMB05 provides memory backup capability for C300v5 controller hardware. It maintains controller memory availability when the primary controller power source is removed or interrupted.
The module operates with a 24 V DC supply input and draws approximately 150 mA during operation. Therefore, system designers must verify power distribution capacity when integrating multiple C300 controller assemblies.
The CC-SCMB05 is designed for installation within the Honeywell Experion PKS C300 controller hardware architecture. It supports controller data retention functions without processing field I/O signals or executing control algorithms.
Frequently Asked Questions
Q: What is the primary function of the Honeywell CC-SCMB05 module?
A: The CC-SCMB05 functions as a C300 controller memory backup assembly. It provides backup support for controller memory retention during power loss conditions.
Q: What power supply does the CC-SCMB05 require?
A: The module requires a 24 V DC power supply and has a typical current draw of 150 mA.
Q: Can the CC-SCMB05 process field signals?
A: No. The CC-SCMB05 does not provide analog or digital I/O processing. It performs memory backup functions within the C300 controller hardware system.
Field Installation Guidelines
- Install the CC-SCMB05 according to Honeywell C300 controller hardware installation procedures.
- Verify that the 24 V DC power supply wiring matches the controller cabinet power distribution design.
- Maintain proper cabinet grounding practices to reduce electrical interference during controller operation.
- Separate power wiring from high-current switching circuits and field signal cables where applicable.
- Confirm connector seating and mechanical mounting before energizing the controller assembly.
- Inspect the module status after installation through the associated controller diagnostic functions.
