Overview

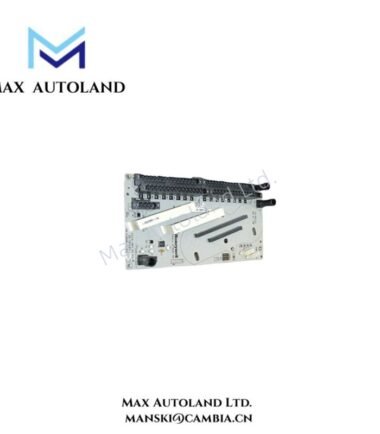

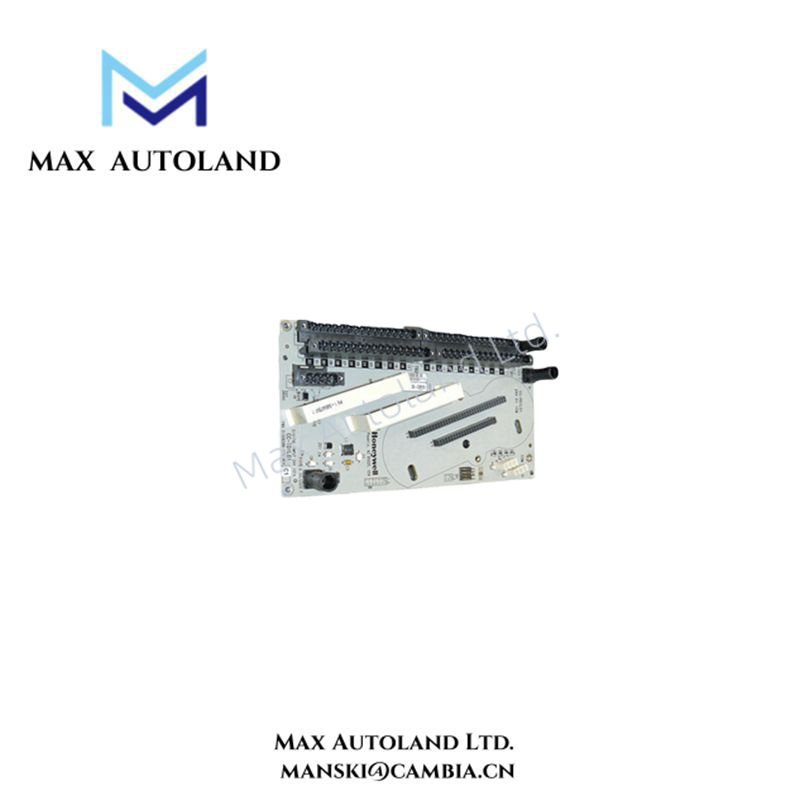

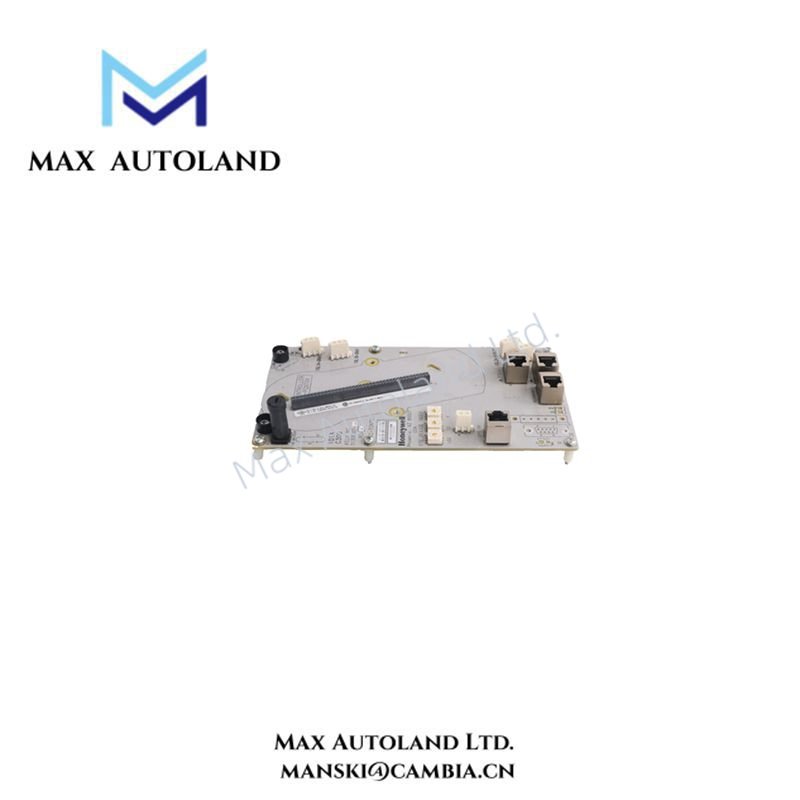

The CC-TDI230 from Honeywell’s Series C I/O family delivers high-voltage digital input processing for Experion C300 controllers. It supports redundancy and ensures accurate detection of 220 VAC signals with optical isolation to protect control systems.
The Digital Input High Voltage accepts 120VAC / 125VDC (CC-TDI110, 120), 120VAC (CC-TDI151 PROX) or 250VAC (CC-TDI2xx) signals as discrete inputs. The same IOM but different IOTA is used for both the 120VAC / 125VDC and 250VAC models. This reduces the number of spares required to support Series C system maintenance.
Specification
| Feature | Specification |
|---|---|
| Model | CC-TDI230 |
| Manufacturer | Honeywell |
| Series | Experion Series C |
| Module Type | Digital Input IOTA Module (Redundant) |
| Input Voltage Range | 180–264 VAC RMS (Nominal 240 VAC) |
| Channels | 32 inputs |
| Isolation | Optical, 1500 VAC RMS or ±1500 VDC |
| Sense Current (ON) | ≥1.11 mA RMS |
| Sense Current (OFF) | ≤0.32 mA RMS |
| Pick-Up Voltage | 180 VAC RMS |
| Drop-Out Voltage | 50 VAC RMS |
| Input Delay (Max) | 25 ms |
| Frequency Range | 47–63 Hz |
| Weight | ~1.0 kg |
| Warranty | 12 months |
Manual/Datasheet PDF
CC-TDI230 Honeywell C300 DI 220VAC IOTA Red Redundant datasheet
