Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-TP0XA1 |
| Brand | Honeywell |
| Origin | USA |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Passive terminal assembly, no independent power consumption |
| Product Series | Experion PKS Series 8 I/O |
| Component Type | I/O Terminal Assembly (TA) |
| Mounting Type | DIN rail mounting |
| Field Connection Type | Screw or compression terminal interface |
| Environmental Rating | Conformal coating support for industrial environments |
| Humidity Range | 5% to 95% non-condensing |
| Isolation Type | Channel-to-system isolation compliant with Series 8 I/O standards |
Process Control I/O Termination and Isolation Features

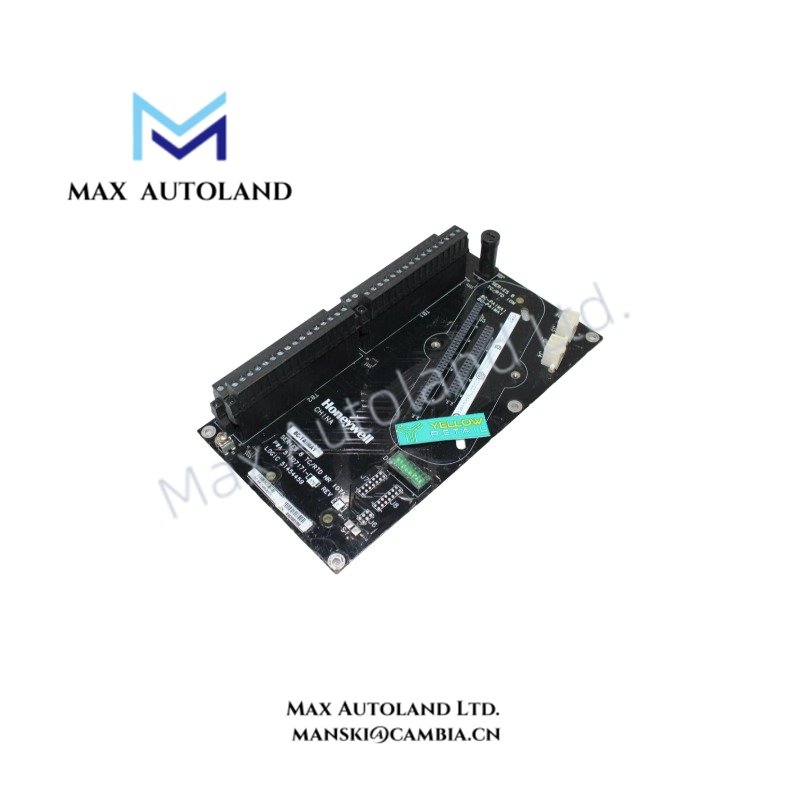

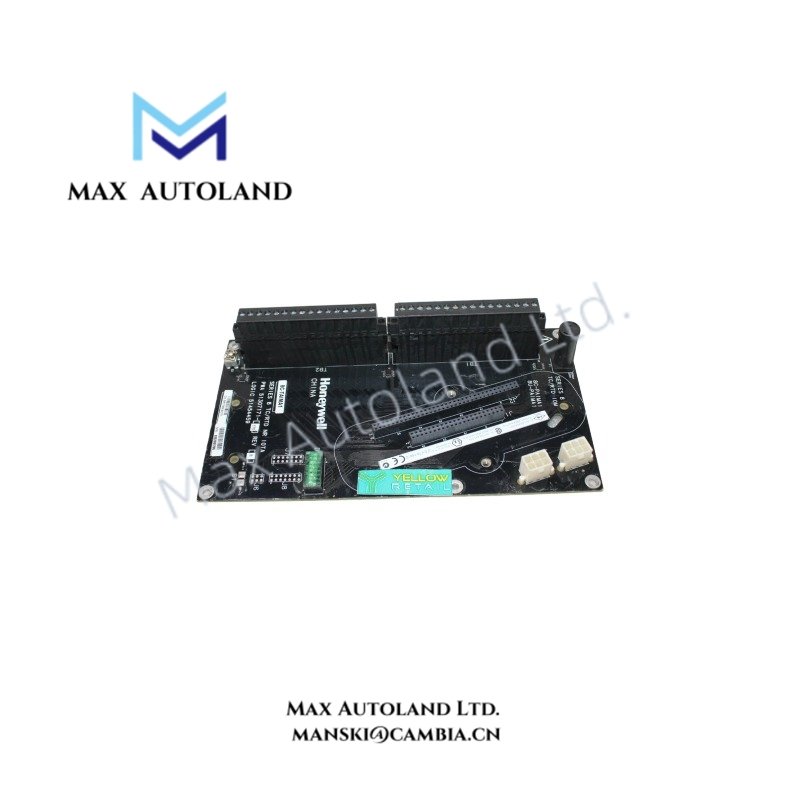

The Honeywell 8C-TP0XA1 provides the physical termination interface between field wiring and Series 8 Input/Output Modules. It separates field connection points from active electronic modules, allowing I/O module replacement without removing field cables.
In addition, the terminal assembly supports channel-to-channel isolation requirements used in process control signal interfaces. For Honeywell Experion PKS installations, the termination structure supports signal integrity through controlled grounding points and shield connection paths.
The module architecture aligns with Honeywell DCS I/O practices, including field instrument signal handling for 4-20 mA HART loop protocol interfaces, FOUNDATION Fieldbus connectivity, and Profibus PA network implementations when used with compatible Series 8 I/O modules.
Frequently Asked Questions
Q: Does the Honeywell 8C-TP0XA1 require external power input?
A: No. The 8C-TP0XA1 is a passive terminal assembly and does not contain active processing electronics or require independent power.
Q: Can the 8C-TP0XA1 support I/O module replacement without disconnecting field wiring?
A: Yes. The terminal assembly design separates field wiring from the active I/O module interface, allowing maintenance procedures without removing field terminals.
Q: How should field cable shielding be connected on the 8C-TP0XA1?
A: Shield connections should follow the Experion PKS installation guidelines. Shield conductors should terminate at designated grounding points to reduce electrical noise and maintain signal quality.
Field Installation Guidelines
- Install the 8C-TP0XA1 on a compatible DIN rail inside the control cabinet.
- Verify terminal identification before connecting field conductors. Maintain correct polarity for analog and digital signal wiring.
- Connect cable shields only at specified grounding terminals. Avoid multiple grounding points that may introduce ground loops.
- Route field signal cables separately from high-voltage power cables and switching circuits to reduce electromagnetic interference.
- Confirm mechanical engagement between the terminal assembly and the corresponding Series 8 I/O module before system commissioning.
- Inspect terminal clamping force and conductor seating during installation maintenance activities.
