Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 8C-PAONA1 51454469-175 |
| Brand | Honeywell |
| Product Type | Analog Output Module |
| Origin | USA |
| Weight | 0.32 kg |
| Dimensions | 4.4 x 15.2 x 14.3 cm |
| Operating Temp | Not specified |
| Power Consumption | 24 VDC, 190 mA module current rating |
| Output Type | 4-20 mA |
| Output Channels | 16 |
| Output Ripple | Less than 100 mV peak-to-peak at power line frequency |
| Output Temperature Drift | 0.005% of Full Scale/deg C |
| Output Current Linearity | +/- 0.05% of Full Scale nominal |
| Load Resistance | 50-800 ohm |
| Voltage Rating | 24 VDC |
| Resolution | +/- 0.05% of Full Scale |
| Directly Settable Output Current Range | 2.9 mA to 21.1 mA |
| Maximum Open Circuit Voltage | 22 V |
| Communication Function | Analog Output without HART |
| Diagnostics | Extensive self-diagnostics |
| Redundancy Function | Optional redundancy configuration |
| Fail-Safe Function | Configurable FAILOPT safe-state behavior per channel |
| Tariff Code | 8537101190 |
Process Control Signal Interface and Channel Isolation

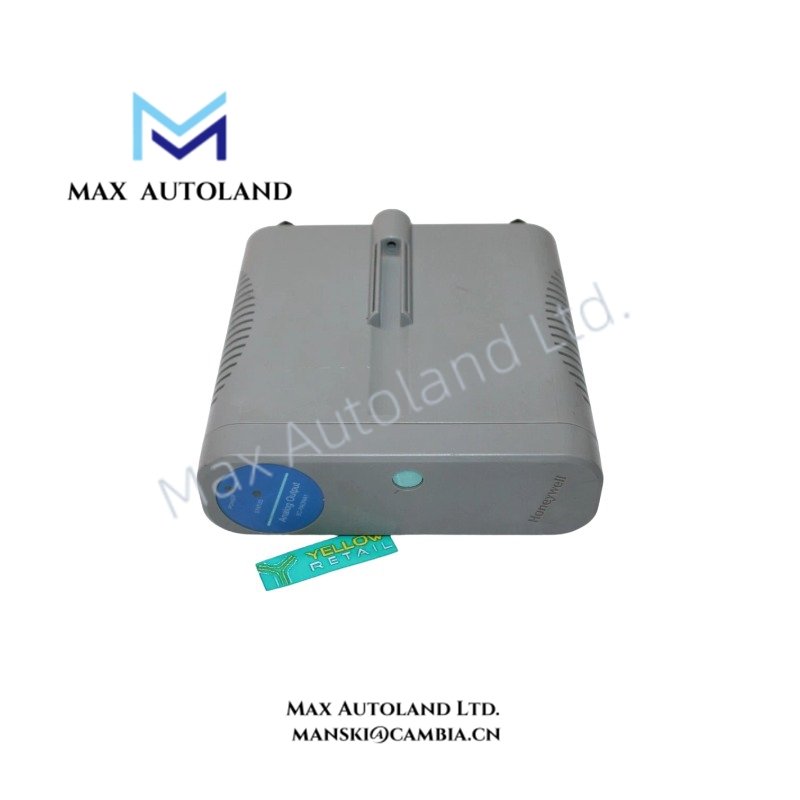

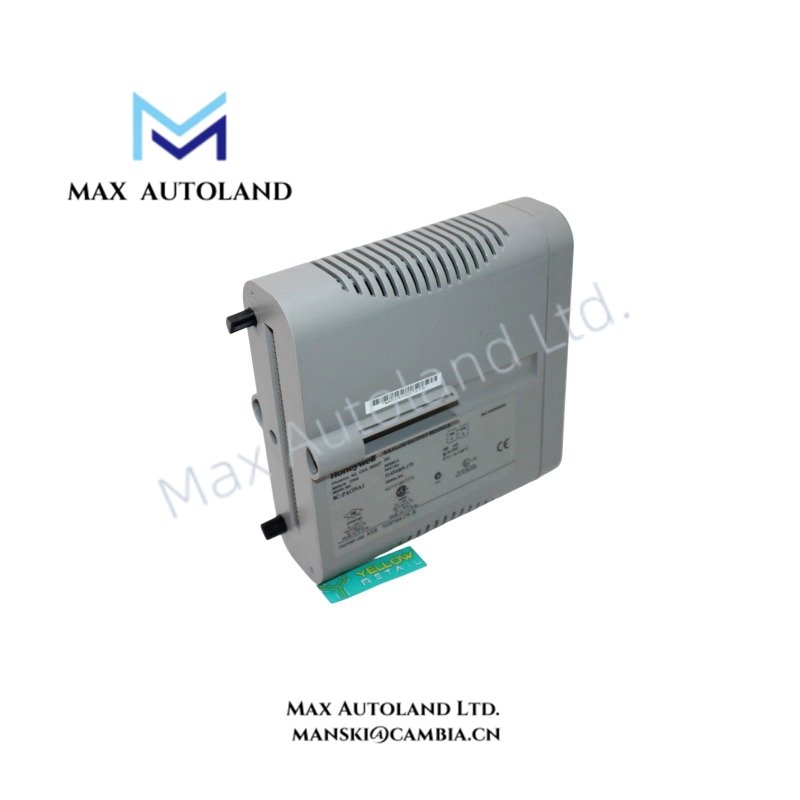

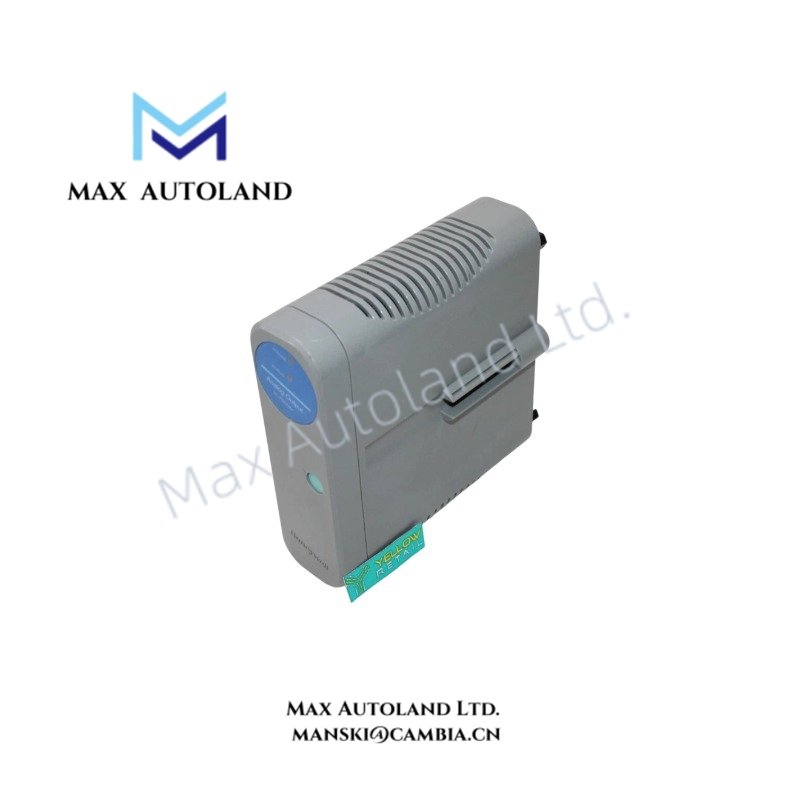

The Honeywell 8C-PAONA1 51454469-175 operates as a Series 8 analog output interface for Experion PKS process control architectures. It generates 16 independent 4-20 mA current outputs for actuator commands, valve positioning signals, and other field control loops.
The module uses channel-level configuration to define output behavior during abnormal conditions. In addition, the FAILOPT function allows each output channel to enter a predefined safe-state mode according to application requirements.
The module supports process instrumentation environments where analog loop accuracy, output stability, and diagnostic monitoring are required. Furthermore, the output circuit maintains specified linearity and temperature drift performance across operating conditions.
Frequently Asked Questions
Q: Does the 8C-PAONA1 51454469-175 support HART communication?
A: No. This module provides analog output without HART communication support. It outputs standard 4-20 mA current signals.
Q: How many output channels does the Honeywell 8C-PAONA1 provide?
A: The module provides 16 analog output channels with configurable channel-level FAILOPT behavior.
Q: What power supply does the module require?
A: The module operates with a 24 VDC supply and has a module current rating of 190 mA.
Field Installation Guidelines
- Install the module in the designated Honeywell Series 8 I/O mounting assembly according to system hardware configuration requirements.
- Verify that the 24 VDC supply wiring meets the required polarity and grounding specifications before energizing the module.
- Route analog output wiring separately from high-voltage power cables to reduce electrical interference.
- Use appropriate shielded cables for 4-20 mA field loops and connect cable shields according to the plant grounding standard.
- Confirm field device load resistance remains within the specified 50-800 ohm operating range.
- Configure channel output states and FAILOPT parameters before placing connected field devices into operational service.
