Overview

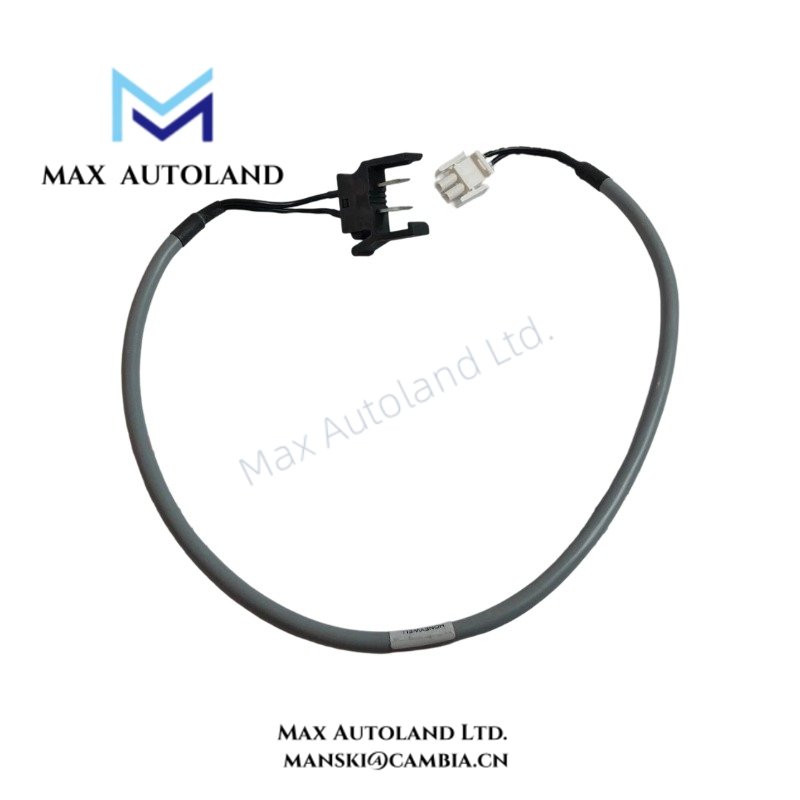

Configured for 24 VDC power transfer within Honeywell Safety Manager systems, the Honeywell FS-PDC-MB24-1P (FS-PDC-MB24-1P Power Distribution Cable) connects the FS-MB-0001 main power rail with compatible power distribution boards or FTAs. It uses a 2 x 6 mm2 cable and keyed connectors for the specified 24 VDC distribution path.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FS-PDC-MB24-1P |
| Brand | Honeywell |
| Product Type | 24 VDC Power Distribution Cable |
| Application | Safety Manager power distribution |
| Origin | USA |
| Weight | 0.55 kg |
| Dimensions | 30.8 x 12.1 x 5.5 cm estimated shipping size |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | Not specified; passive cable assembly |
| Voltage | 24 VDC +/-20% |
| Current Rating | 1 A continuous |
| Current Rating, Typical | 5-10 A |
| Conductor | 2 x 6 mm2 (AWG 10) |
| Cable Length | 145 cm (57.1 in) |
| Mains Power Rail Connector | 2-pole Squeeze-To-Release D-TAB-200-STR |
| FTA/Board Connector | 2-pole keyed header, Weidmuller BVZ 7.62HP/02F SN |
| Connector Keying | 24 VDC, Weidmuller BV/SV7.62HP KO |
Safety Manager Power Distribution Interface

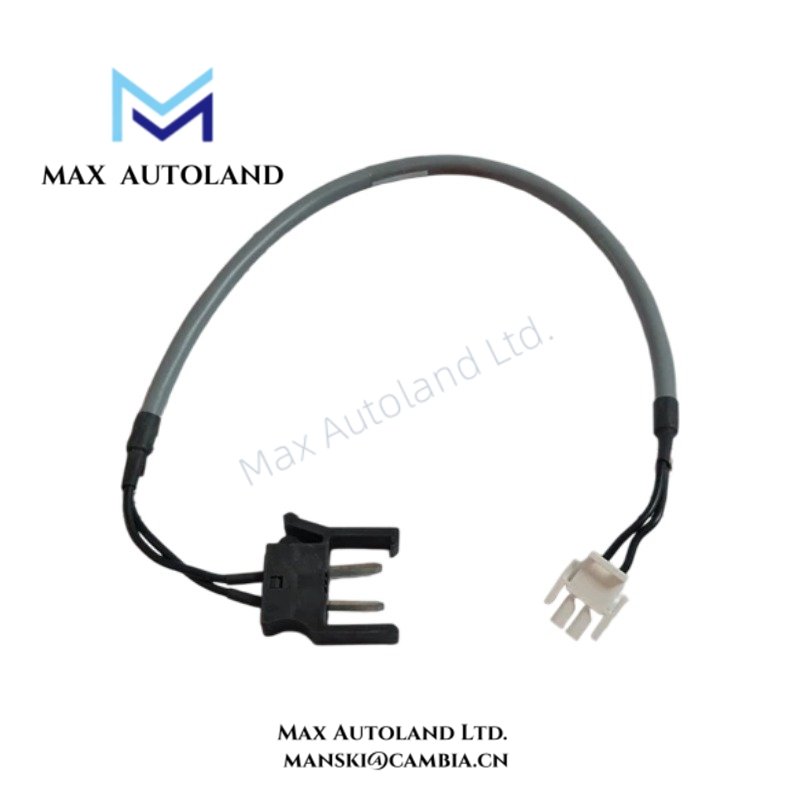

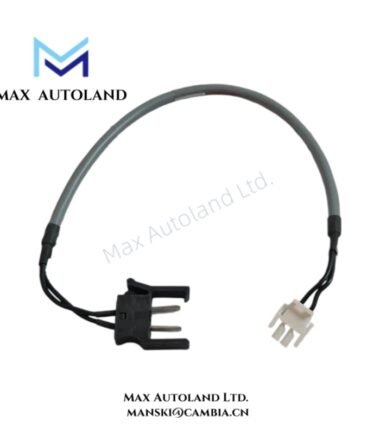

The FS-PDC-MB24-1P carries 24 VDC from the FS-MB-0001 main power rail to a compatible power distribution point. The cable assembly uses a 2-pole Squeeze-To-Release connector on the power-rail side.
On the FTA or board side, the cable uses a keyed 2-pole Weidmuller header. The specified 24 VDC keying prevents insertion into an incompatible keyed position and maintains the intended connection orientation.

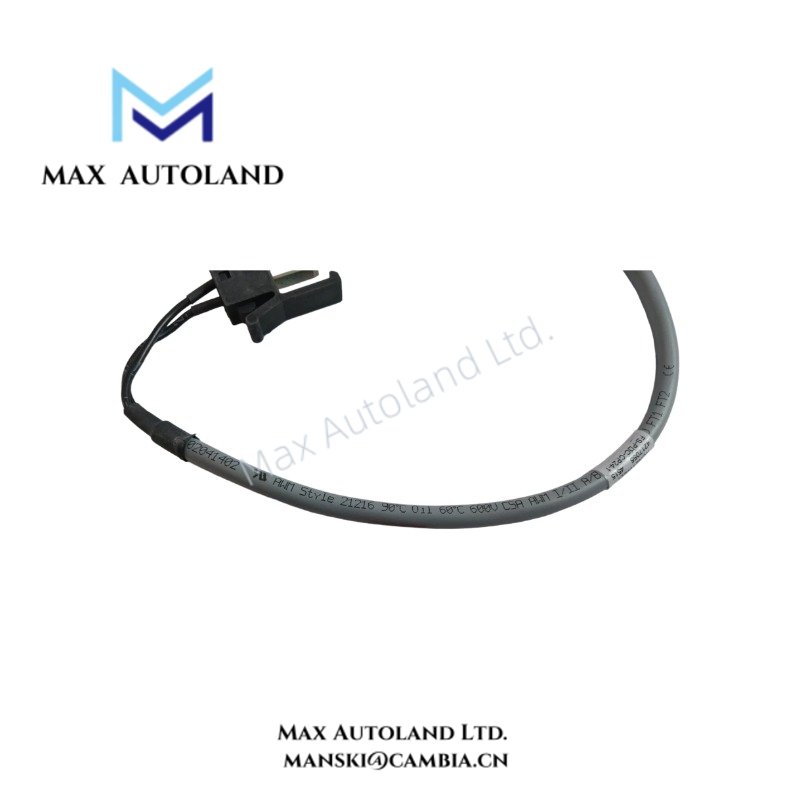

The 2 x 6 mm2 conductor construction provides the stated cable conductor size for the power distribution path. Therefore, installation should follow the applicable Honeywell Safety Manager wiring and load requirements rather than treating the cable rating as an independent system load specification.
Frequently Asked Questions
Q: What voltage does the FS-PDC-MB24-1P distribute?
A: The cable distributes 24 VDC, with the supplied specification stating a voltage range of 24 VDC +/-20%.
Q: What connectors does the FS-PDC-MB24-1P use?
A: The power-rail side uses a 2-pole D-TAB-200-STR Squeeze-To-Release connector. The FTA or board side uses a keyed 2-pole Weidmuller BVZ 7.62HP/02F SN header with BV/SV7.62HP KO 24 VDC keying.
Q: What conductor size does the cable use?
A: The cable uses 2 x 6 mm2 conductors, corresponding to AWG 10.
Field Installation Guidelines
Install the FS-PDC-MB24-1P between the specified FS-MB-0001 power rail and the compatible FTA or power distribution interface.
- Verify that the 24 VDC keyed connector matches the intended mating header before insertion.
- Confirm connector orientation and keying before applying mechanical force.
- Route the cable without sharp bends, crushing, or excessive mechanical tension.
- Keep the power cable separated from signal and communication wiring where the cabinet layout permits.
- Secure the cable so that connector bodies do not carry cable weight or installation strain.
- Check conductor insulation and connector engagement before energizing the power rail.
- Follow the applicable Honeywell Safety Manager cabinet wiring, grounding, and segregation requirements for the complete installation.
