Overview

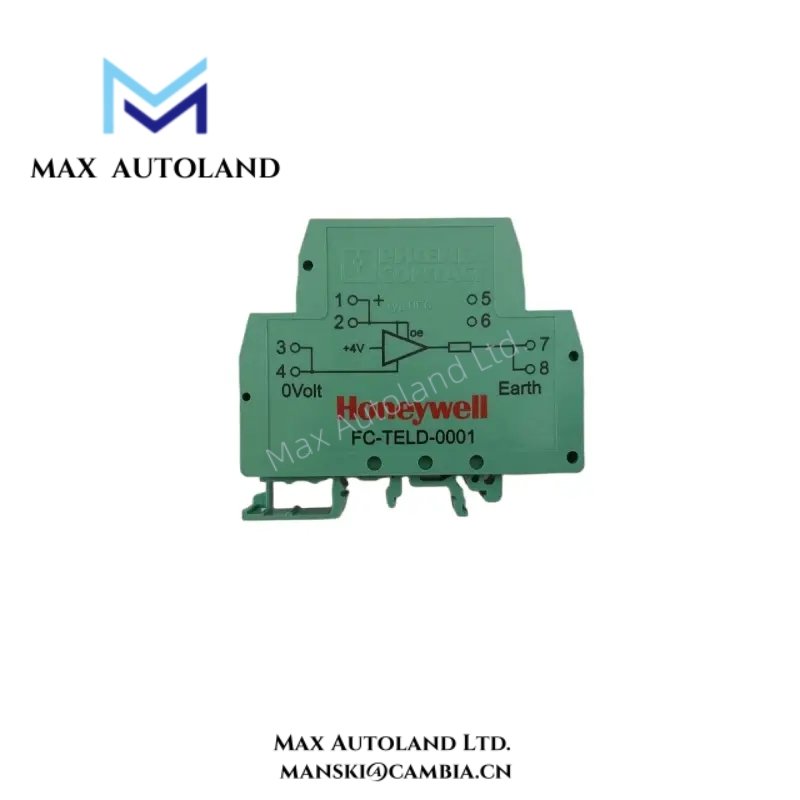

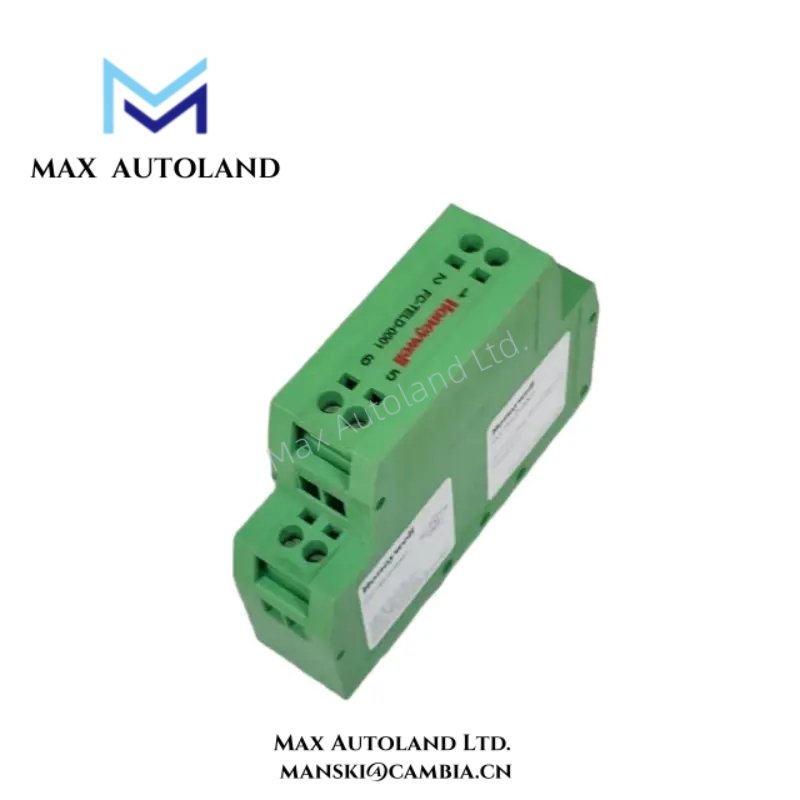

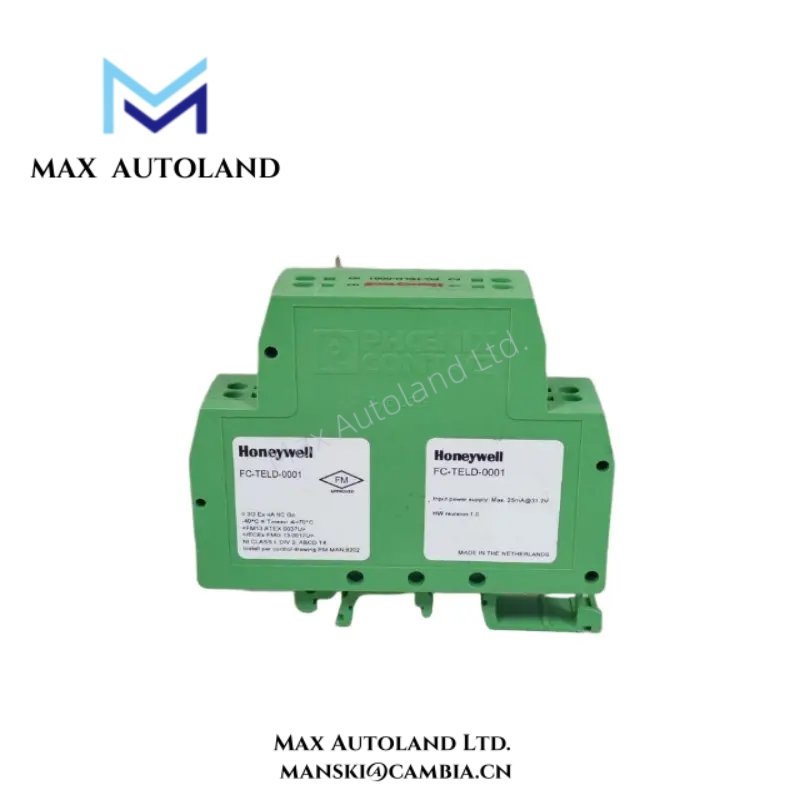

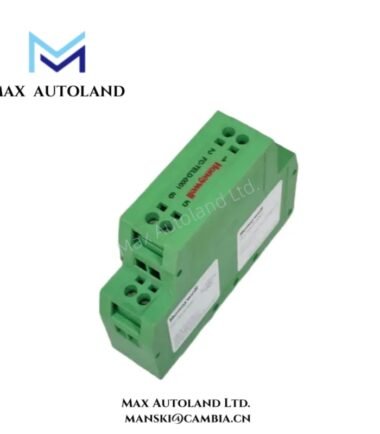

The FC-TELD-0001 Honeywell FSC Series Earth Leakage Detector Terminal provides precise monitoring of ground fault currents in safety-critical industrial environments. Moreover, it integrates seamlessly with Honeywell FSC safety systems, ensuring reliable detection and rapid system response. Therefore, engineers can maintain continuous safety compliance while preventing equipment damage and electrical hazards.
Specification
| Parameter | Specification |
|---|---|
| Model | FC-TELD-0001 |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Module Type | Earth Leakage Detector Terminal |
| Detection Type | Earth leakage / ground fault current |
| Measurement Range | 0–30 mA typical |
| Response Time | <50 ms to trip signal |
| Signal Output | Safety logic compatible digital output |
| Power Supply | Derived from FSC system backplane |
| Connection Type | Screw terminal connectors for field wiring |
| Mounting | FSC chassis mounting or DIN rail compatible |
| Dimensions (W × H × D) | Approx. 60 × 90 × 75 mm |
| Weight | Approx. 0.35 kg |
| Operating Temperature | –5 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95%, non-condensing |
| Diagnostics | Trip status, leakage detection, connection fault |
| Typical Applications | Safety shutdown, ground fault monitoring, industrial protection |
| System Compatibility | Honeywell FSC Series Safety Manager systems |
FAQ
Q1: What is the main function of the FC-TELD-0001 module?
A1: The FC-TELD-0001 continuously monitors earth leakage currents and signals the FSC safety system.
Q2: Is the module compatible with all FSC systems?
A2: Yes, it integrates directly with Honeywell FSC Series Safety Manager systems.
Q3: What is the response time of the detector?
A3: The FC-TELD-0001 triggers within <50 ms upon detecting abnormal leakage currents.
Q4: Does it require an external power supply?
A4: No, it draws power directly from the FSC system backplane.
Q5: Are these modules brand new?
A5: Yes, all units are original Honeywell, brand-new products.
Q6: What are shipping and return policies?
A6: Stock is available; shipping occurs within 3 days to 2 weeks, and 30-day returns are supported for quality issues.
