Overview

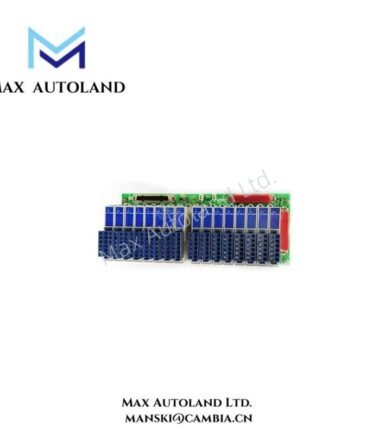

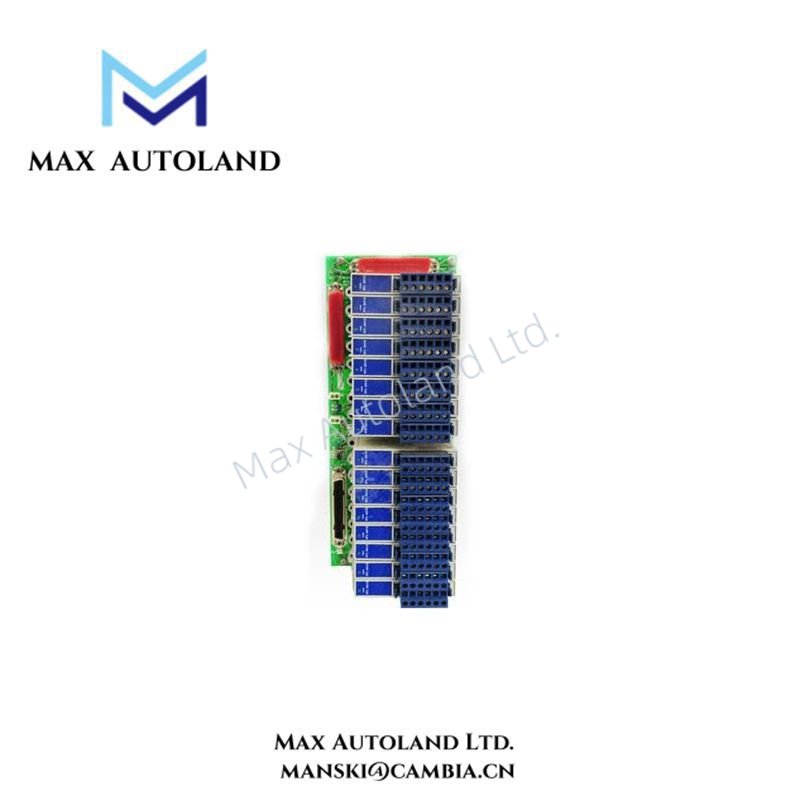

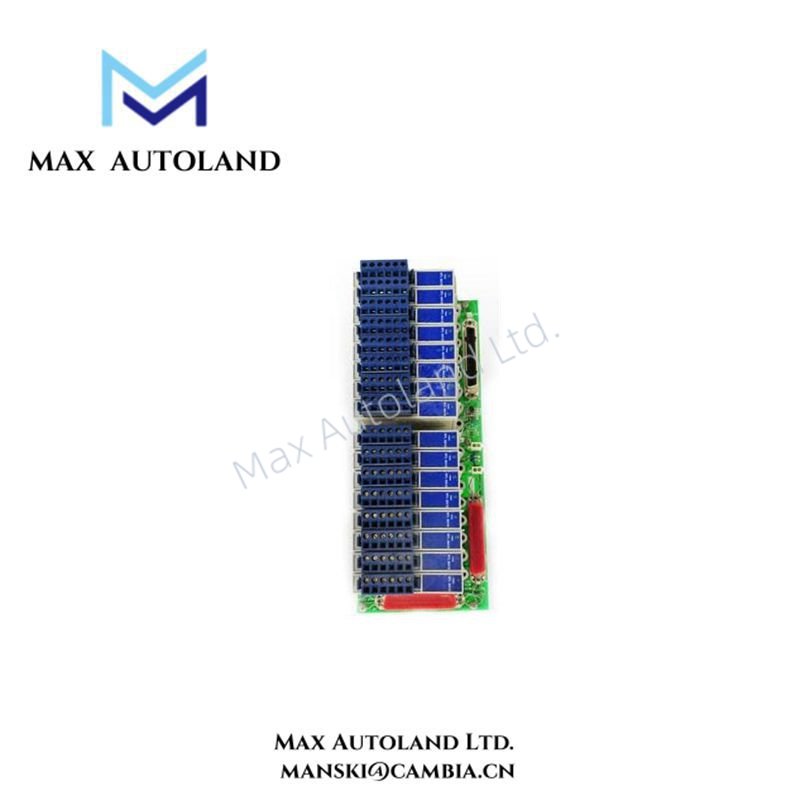

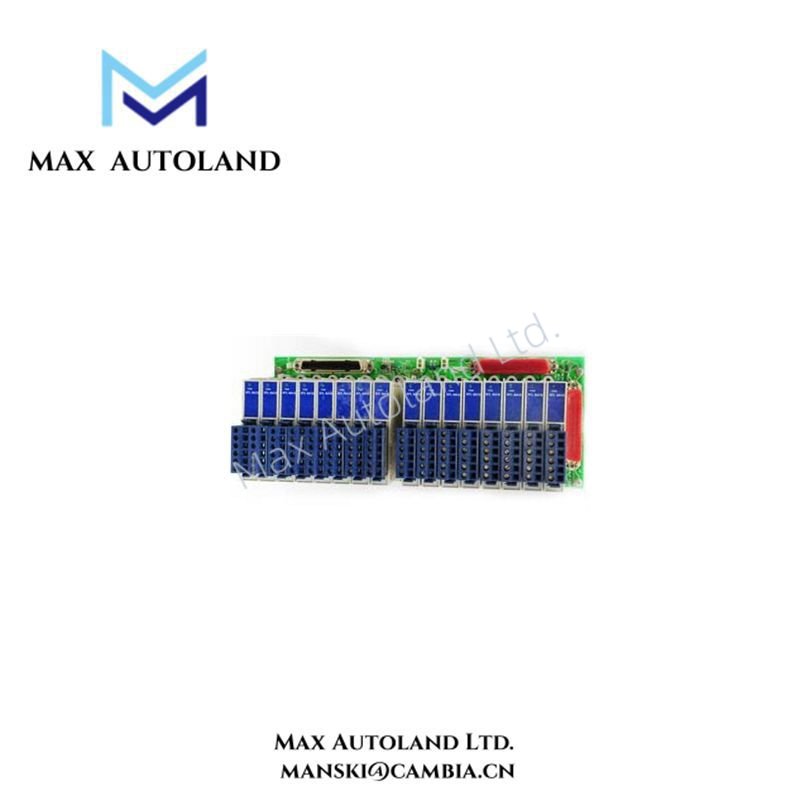

The Honeywell MC-GA1H13 51304718-175 is a high-level analog input module designed for precise signal processing in industrial control systems. It features galvanic isolation, redundancy, and compression terminals, ensuring reliable performance in demanding environments.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-GA1H13 51304718-175 |
| Module Type | Analog Input, Field Termination Assembly (FTA) |
| Channels | 16 |
| Galvanic Isolation | Yes |
| Redundancy | Yes |
| Terminals | Compression |
| Size | 12.1 inches (307 mm) |
| Weight | 2.0 kg (approx. 4.4 lbs) |
| Certifications | CE compliant, conformally coated |
| Power Supply | Provides DC power to energize 4–20mA transmitters |
| Safety Description | 20 Vdc max, 300 ohms, 93 milliamps max |
| Mounting Type | Compatible with DIN rail mounting |
