Overview

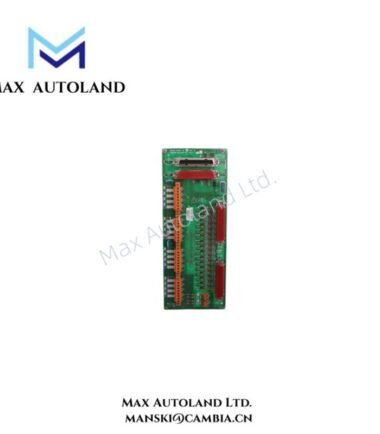

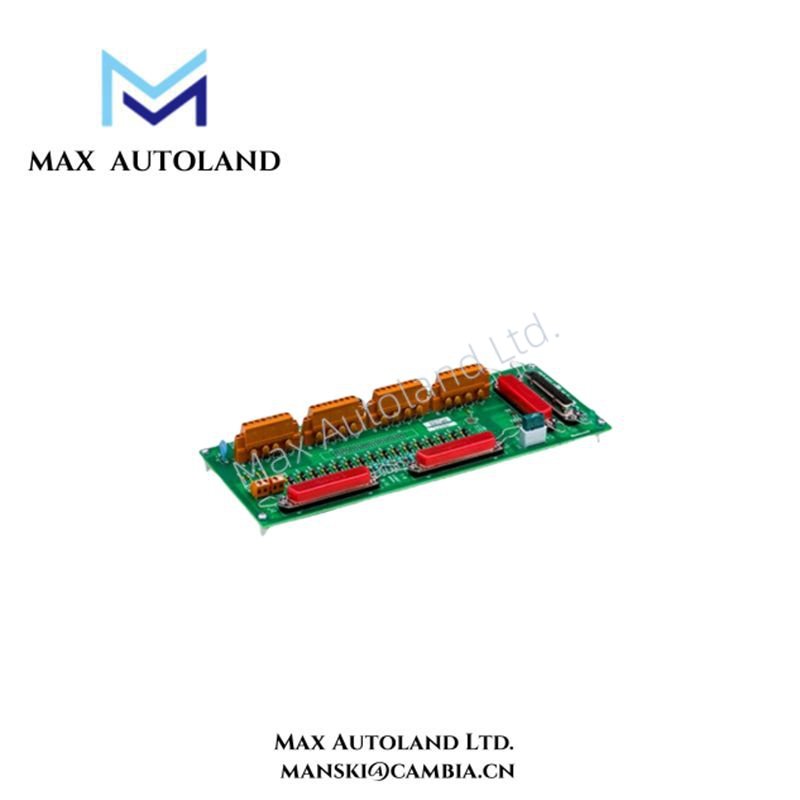

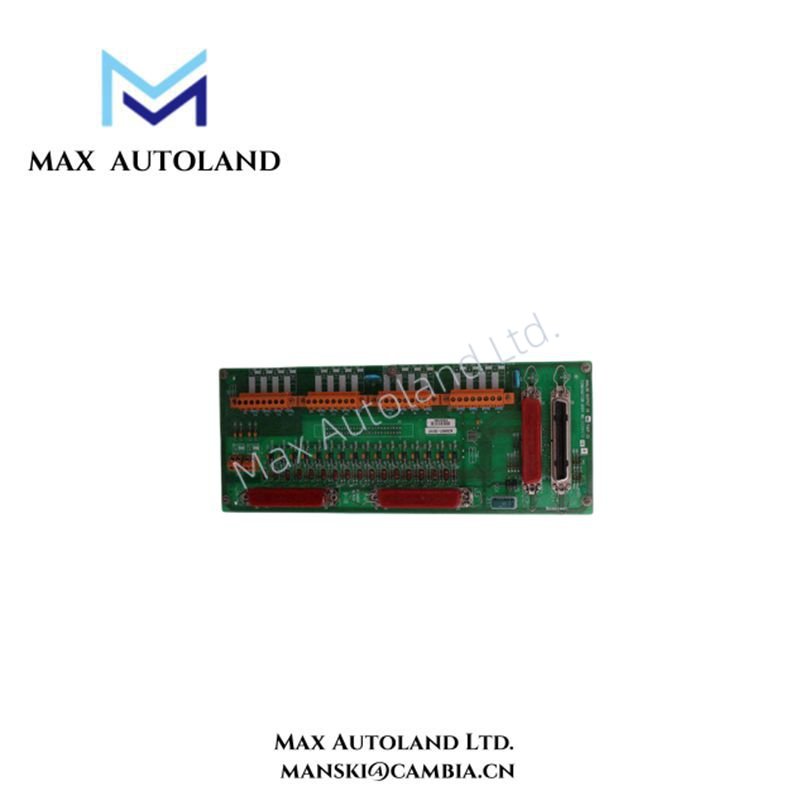

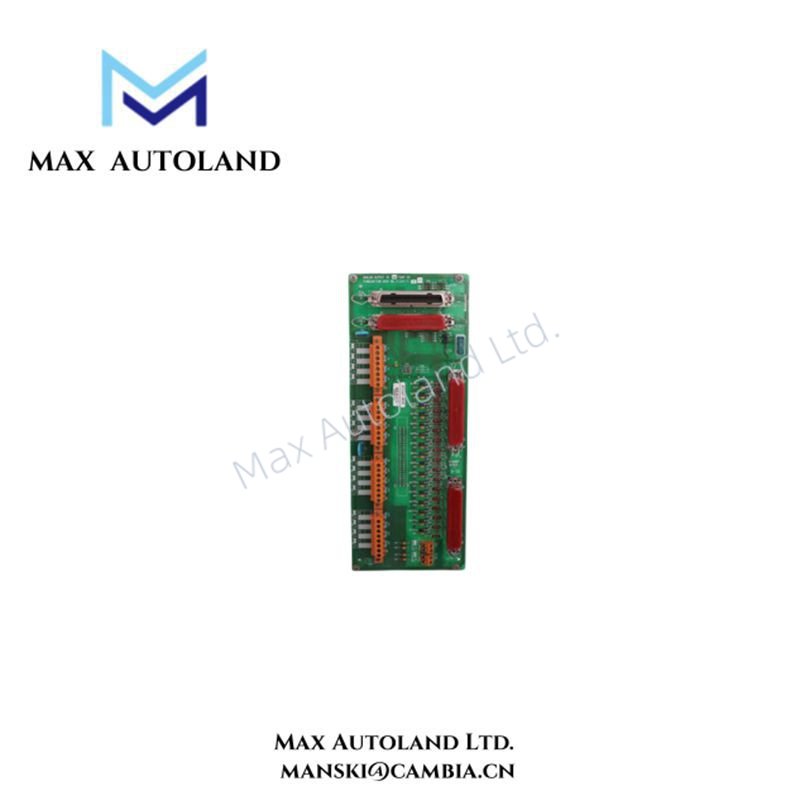

The Honeywell MC-TAOY22 80366481-175 is a high-density Analog Output Module designed for Honeywell FSC systems. It offers 16 channels, each providing a 4–20 mA current loop output, making it ideal for controlling field devices such as valves, actuators, and positioners in industrial automation applications.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-TAOY22 80366481-175 |
| Module Type | Analog Output Module |
| Output Channels | 16 |
| Output Type | 4–20 mA current loop |
| Output Ripple | 100 mV peak-to-peak at power line frequency, across 250 Ω load |
| Output Temperature Stability | ±0.02% Full Scale/°C |
| Output Accuracy | ±4% of reading |
| Output Linearity | ±0.05% nominal |
| Resolution | ±0.05% |
| Dimensions | 90 mm x 120 mm x 60 mm |
| Weight | 0.5 kg |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24 VDC |
| Mounting | Compression terminals |
| Compliance | CE, conformally coated |
