Overview

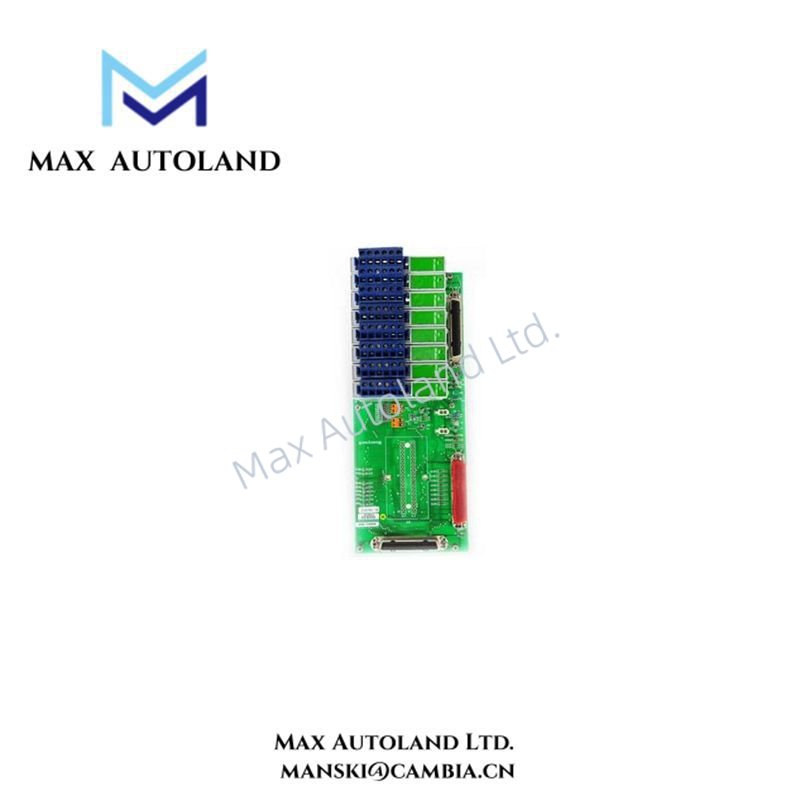

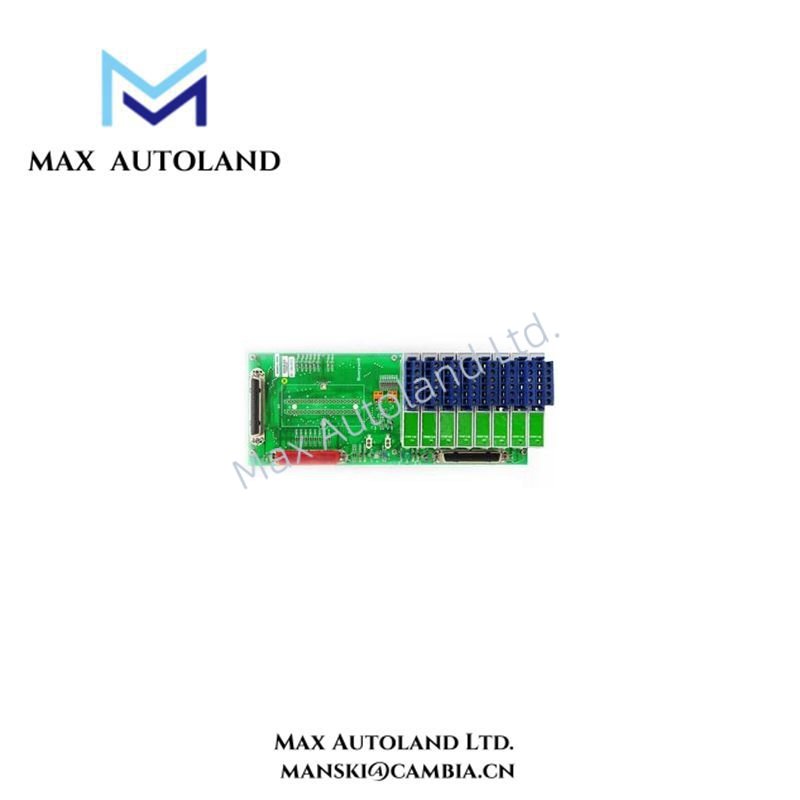

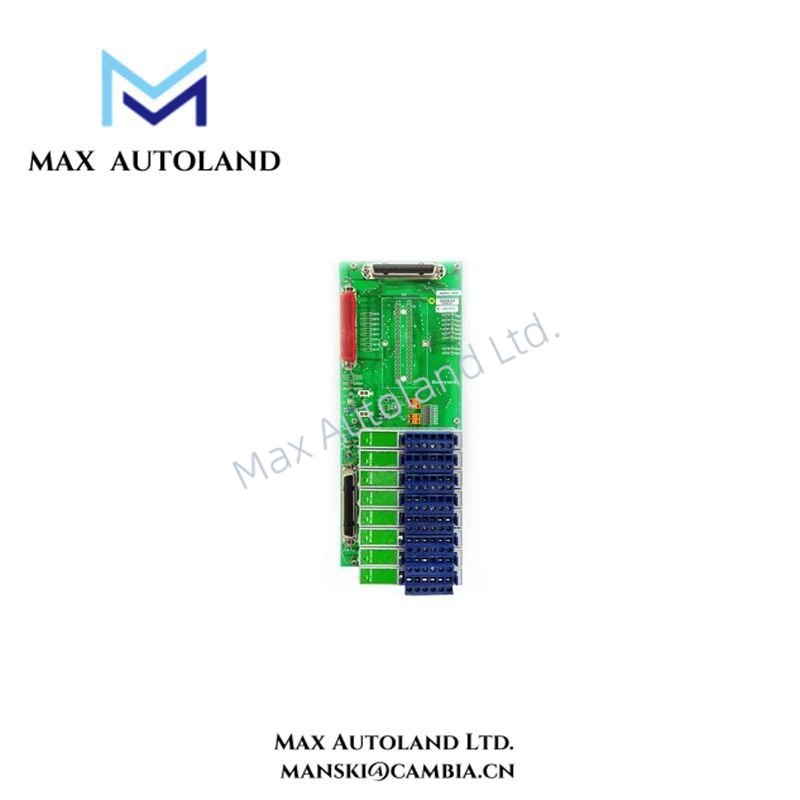

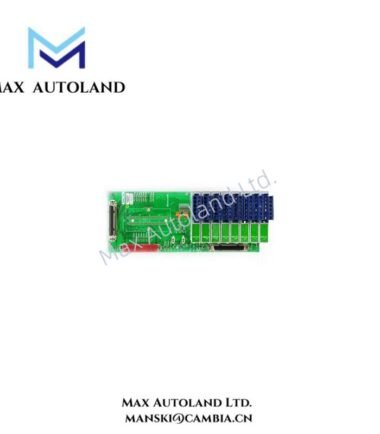

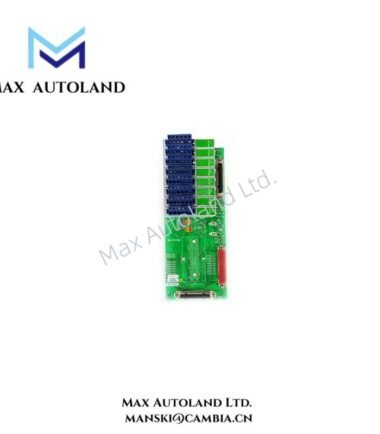

The Honeywell MC-GAOX02 51304638-175 is a high-performance analog output module designed for the FSC system. It features 16 channels with galvanic isolation, ensuring reliable signal transmission in industrial automation applications. The module supports compression-type terminals, facilitating secure and efficient wiring.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-GAOX02 51304638-175 |
| Module Type | Analog Output, Field Termination Assembly (FTA) |
| Channels | 16 |
| Galvanic Isolation | Yes |
| Terminals | Compression |
| Size | 12.1 inches (307 mm) |
| Weight | 2.0 kg (approx. 4.4 lbs) |
| Certifications | CE compliant, conformally coated |
| Power Supply | Provides DC power to energize 4–20mA transmitters |
| Safety Description | 20 Vdc max, 300 ohms, 93 milliamps max |
| Mounting Type | Compatible with DIN rail mounting |
