Overview

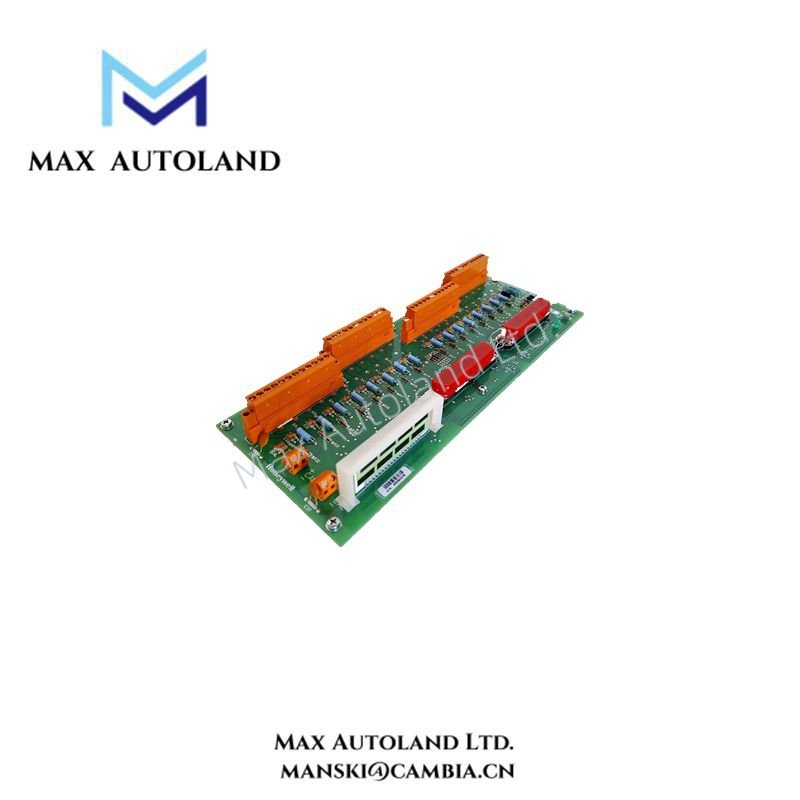

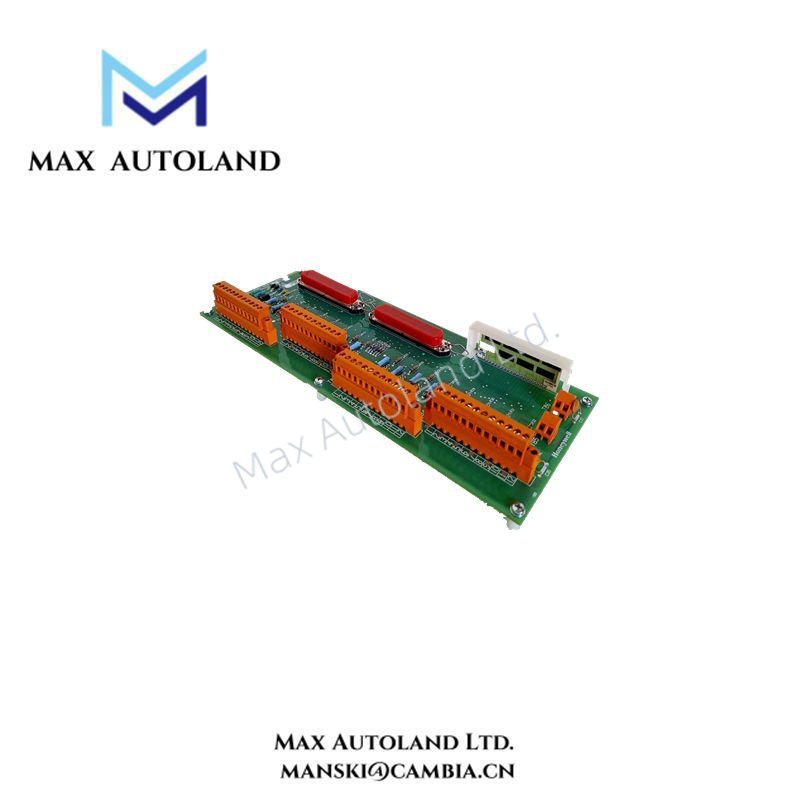

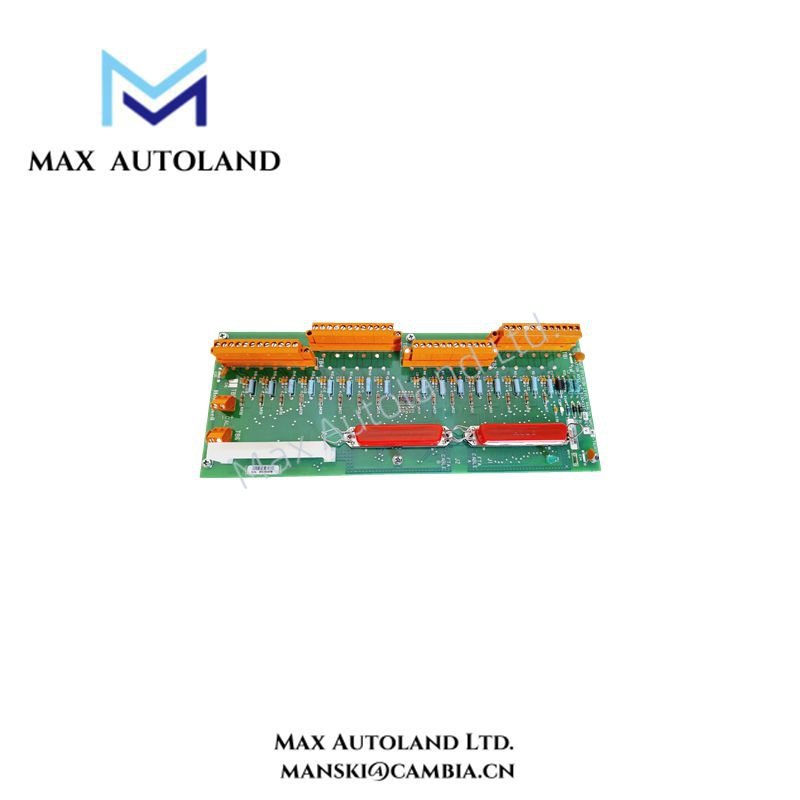

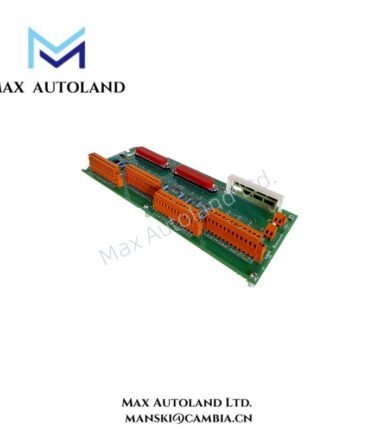

The Honeywell MC-TAIH12 51304337-150 is a high-performance High-Level Analog Input Module designed for Honeywell FSC systems. It offers 16 configurable input channels, supporting both single-ended and differential signal configurations. This module ensures precise analog signal processing, making it ideal for industrial automation applications requiring high accuracy and reliability.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-TAIH12 51304337-150 |
| Module Type | High-Level Analog Input Module |
| Input Channels | 16 |
| Input Configuration | Single-ended or differential |
| Input Voltage Range | 0–10 V, 0–20 mA, 4–20 mA |
| A/D Converter Resolution | 16 bits (14 bits used) |
| Accuracy | ±0.1% of reading |
| Common Mode Rejection Ratio | 70 dB (dc to 60 Hz) |
| Normal Mode Rejection Ratio | 32 dB (at 60 Hz) |
| Crosstalk | 60 dB (dc to 60 Hz) |
| Isolation | 500 V |
| Sampling Rate | 100 samples/sec |
| Dimensions | 30.7 cm x 12 cm x 5 cm |
| Weight | 0.35 kg |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24 VDC |
| Redundancy Supported | Yes |
| Terminals | Compression |
| Compliance | Non-CE Compliant, Conformal Coated |
