Overview

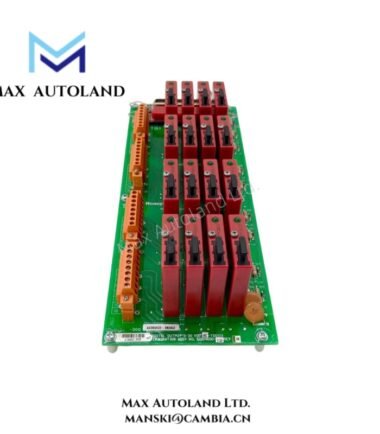

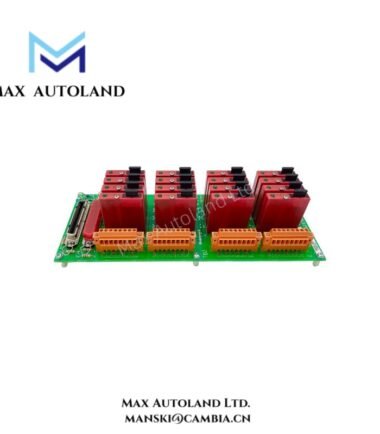

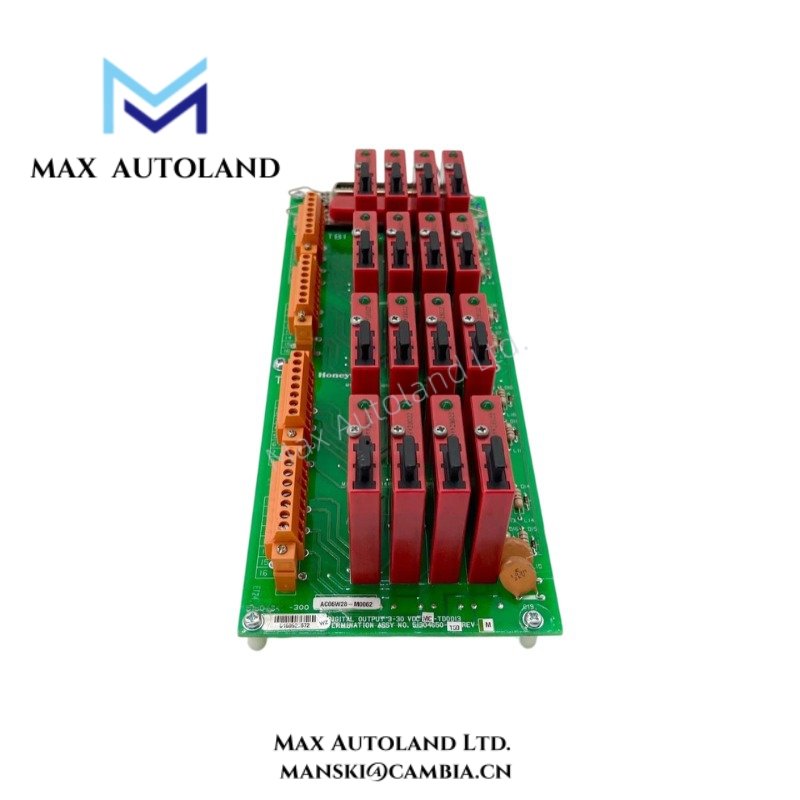

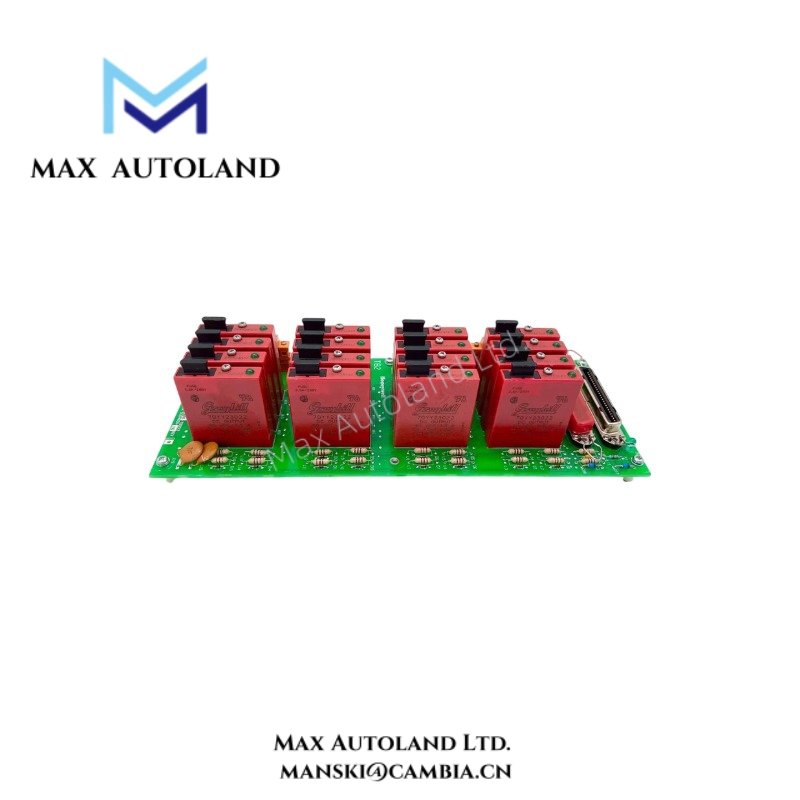

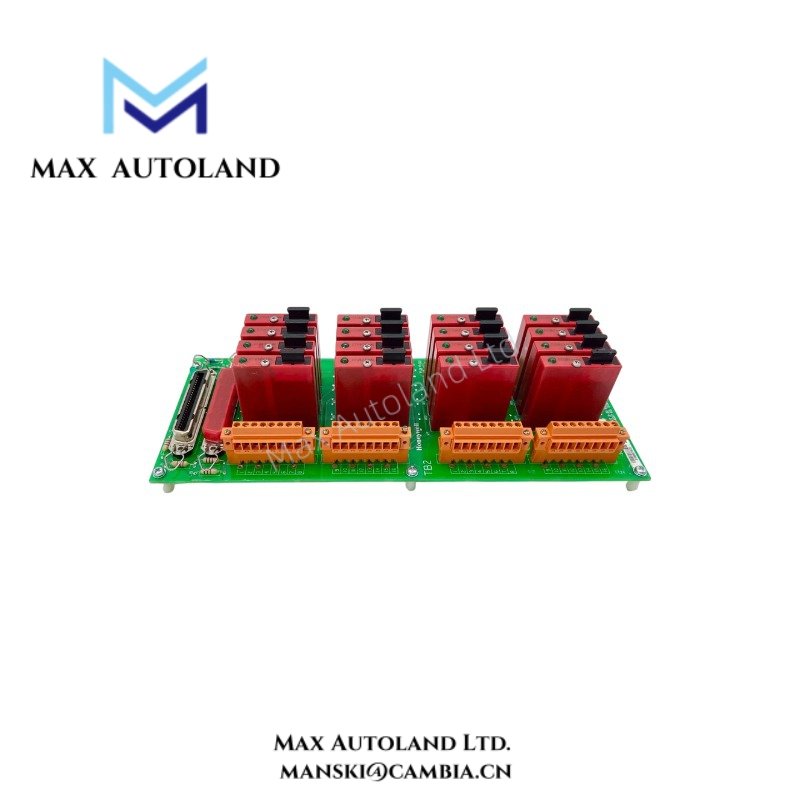

The Honeywell MC-TDODI3 51304650-150 delivers reliable digital output control for industrial automation and process systems.
It converts control logic signals into stable switching outputs for field devices and actuators.
Moreover, the module integrates seamlessly into Honeywell UCN architectures, ensuring consistent and accurate system response.
Engineers choose MC-TDODI3 51304650-150 for its stable performance, rugged design, and long operational life.
Specification
| Parameter | Specification |
|---|---|
| Model | MC-TDODI3 51304650-150 |
| Manufacturer | Honeywell |
| Product Type | Digital Output Module |
| Series | Honeywell UCN (Universal Control Network) |
| Output Channels | 16 digital output channels |
| Output Type | 24V DC switching output |
| Output Current per Channel | Up to 0.5 A |
| Total Load Capacity | Distributed load across channels |
| Switching Response Time | ≤ 10 ms fast response |
| Signal Type | Discrete ON/OFF control signals |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Interface | UCN backplane communication interface |
| Connector Type | Industrial screw terminal block |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 6W typical |
| Energy Storage | Internal capacitors for voltage stabilization |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.55 kg |
| Mounting Method | Rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Industrial EMC standards compliant |
| Protection Features | Overcurrent and transient voltage protection |
| LED Indicators | Channel status and diagnostic LEDs |
| Wiring Method | Screw terminal field wiring |
| Redundancy Support | Compatible with redundant system configurations |
