Overview

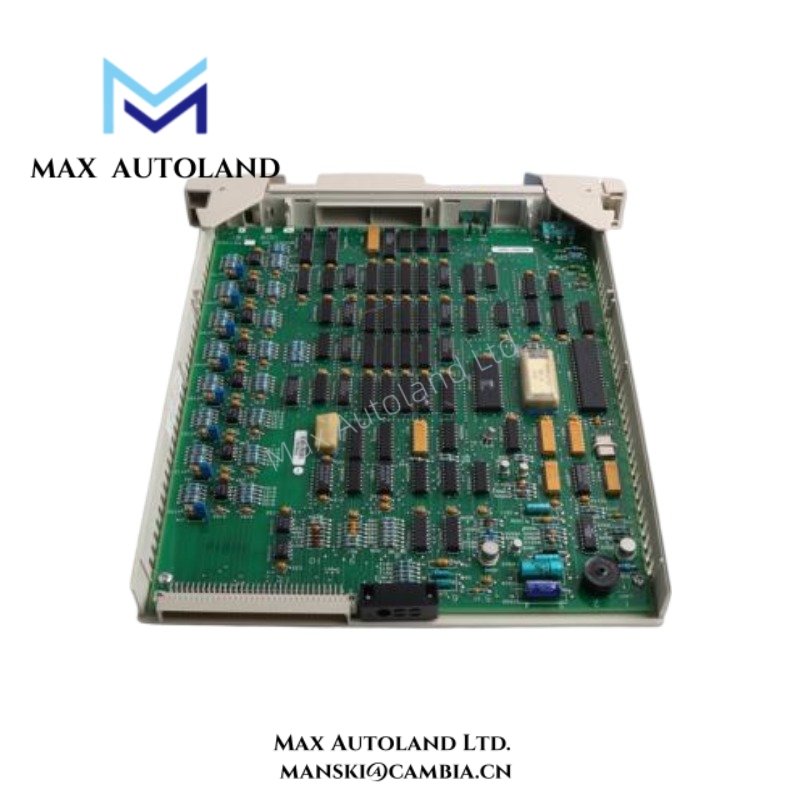

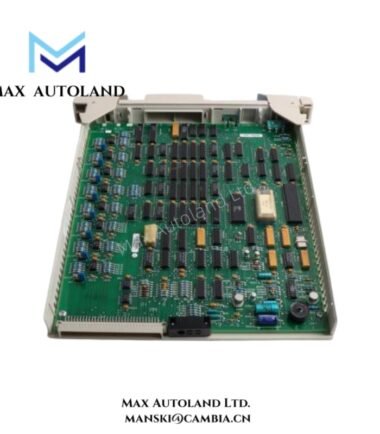

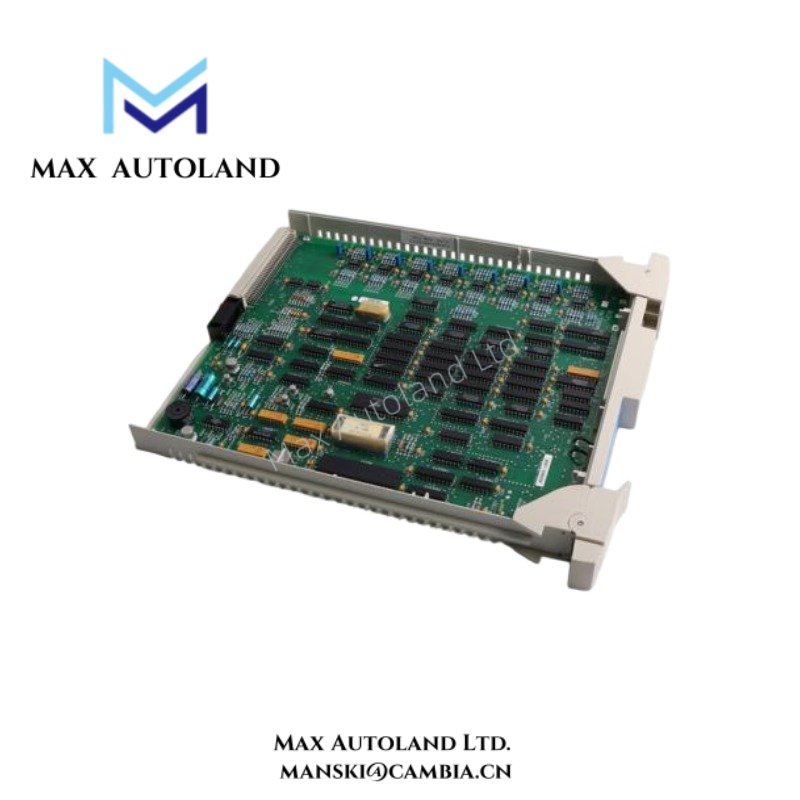

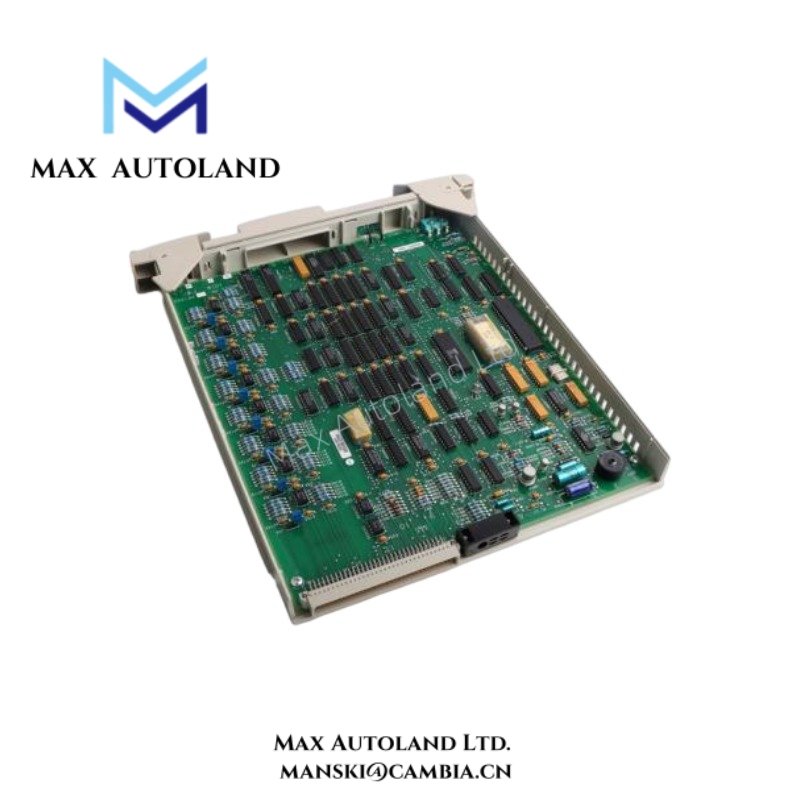

The Honeywell MC-PPIX02 51304386-150 provides accurate pulse signal processing for industrial automation and monitoring systems.
It converts high-frequency pulse inputs into stable digital data for control system processing.
Moreover, the module integrates seamlessly into Honeywell UCN architectures, ensuring reliable system synchronization and data accuracy.
Engineers select MC-PPIX02 51304386-150 for its fast response, stable counting performance, and robust industrial design.
Specification
| Parameter | Specification |
|---|---|
| Model | MC-PPIX02 51304386-150 |
| Manufacturer | Honeywell |
| Product Type | Pulse Input Processor Module |
| Series | Honeywell UCN / FSC System |
| Input Channels | 8 pulse input channels |
| Input Signal Type | Digital pulse signals |
| Input Frequency Range | Up to 50 kHz high-speed counting |
| Input Voltage Range | 5–24V DC compatible |
| Counting Mode | Frequency, totalization, event counting |
| Resolution | High-resolution pulse measurement |
| Accuracy | ±0.1% counting accuracy |
| Response Time | ≤ 1 ms fast processing |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Interface | UCN backplane communication interface |
| Connector Type | Industrial screw terminal block |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 5W typical |
| Energy Storage | Internal capacitors for signal stabilization |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.5 kg |
| Mounting Method | Rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Industrial EMC standards compliant |
| Noise Filtering | Built-in digital filtering and debounce control |
| LED Indicators | Channel status and diagnostic LEDs |
| Wiring Method | Screw terminal field wiring |
| Redundancy Support | Compatible with redundant system architecture |
