Overview

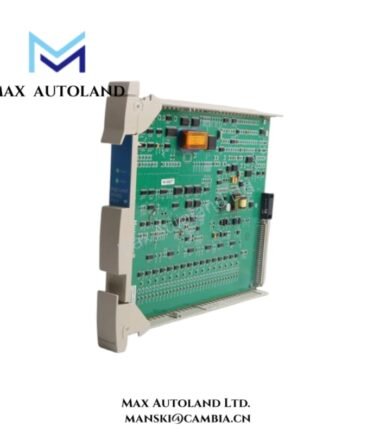

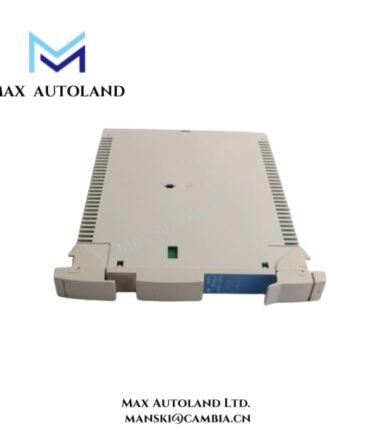

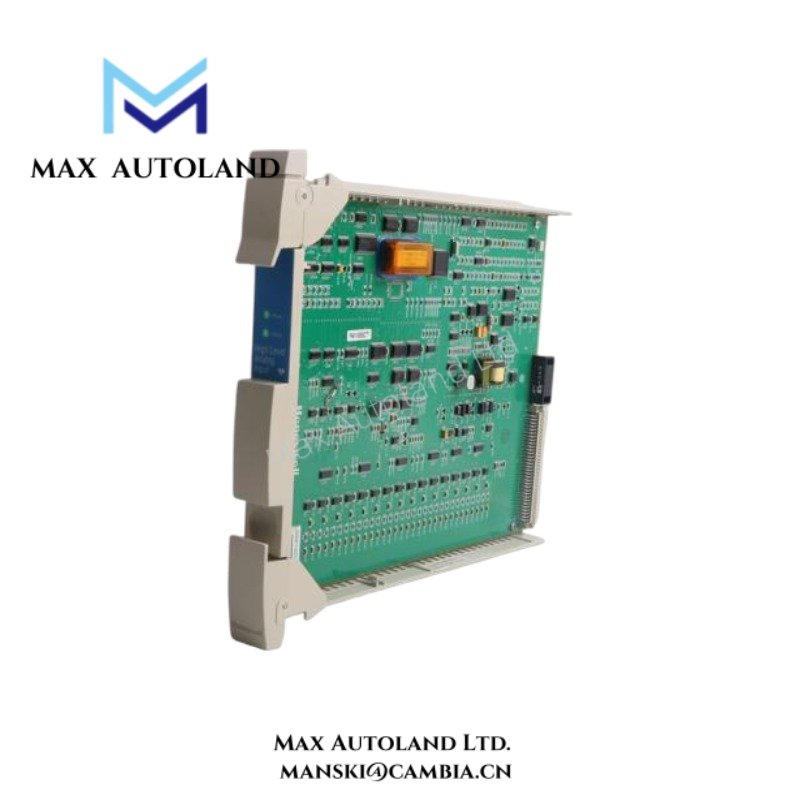

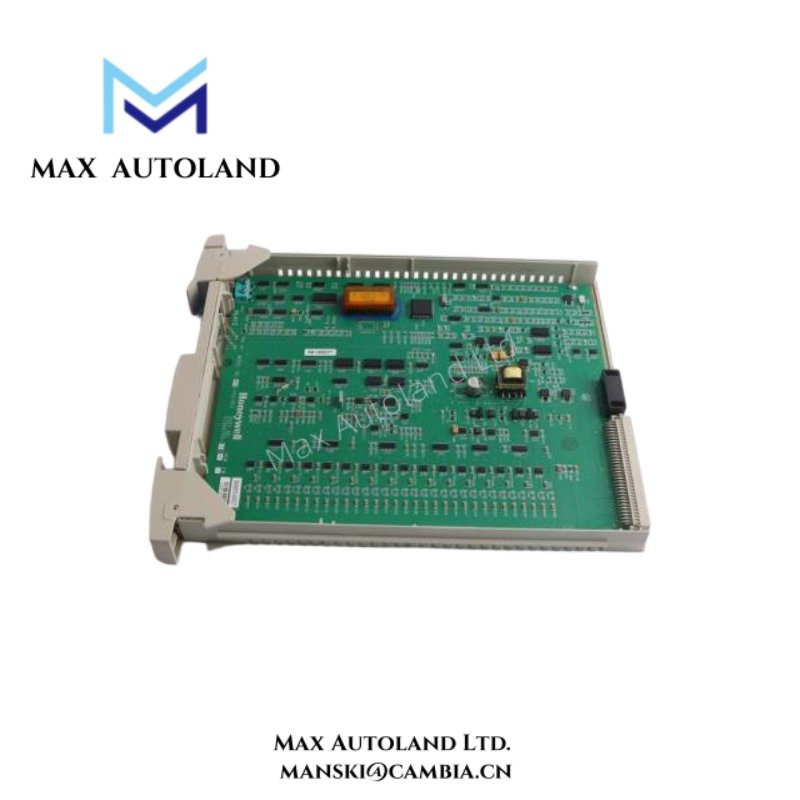

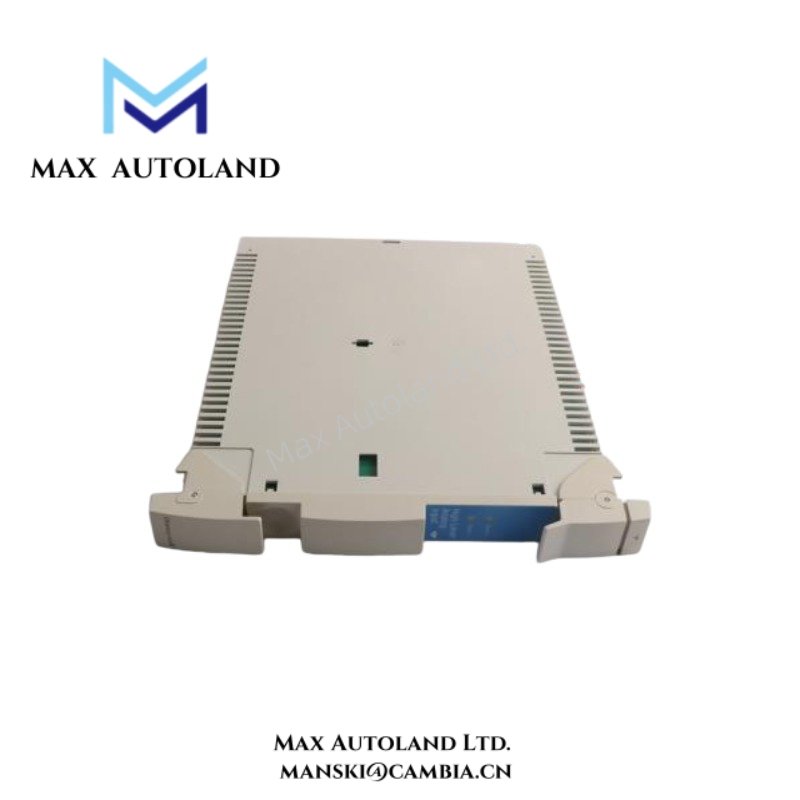

The Honeywell MC-PAIH03 51304754-150 delivers reliable digital output control for advanced industrial automation systems.
It converts control signals into stable switching outputs, which ensures precise actuator and field device operation.
Moreover, the module integrates smoothly into Honeywell UCN architectures, improving system coordination and response accuracy.
Engineers select MC-PAIH03 51304754-150 for its robust performance, stable output behavior, and long service life.
Specification
| Parameter | Specification |
|---|---|
| Model | MC-PAIH03 51304754-150 |
| Manufacturer | Honeywell |
| Product Type | Digital Output Module |
| Series | Honeywell UCN (Universal Control Network) |
| Output Channels | 16 digital output channels |
| Output Type | 24V DC switching output |
| Output Current per Channel | Up to 0.5 A |
| Total Output Load | System dependent, distributed load design |
| Response Time | ≤ 10 ms fast switching response |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Interface | UCN backplane communication interface |
| Connector Type | Industrial screw terminal block |
| Signal Type | Discrete ON/OFF control signals |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 6W typical |
| Energy Storage | Internal capacitors for signal stabilization |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.55 kg |
| Mounting Method | Rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Industrial EMC standard compliant |
| Protection Features | Overcurrent and transient voltage protection |
| LED Indicators | Channel status and diagnostic LEDs |
| Wiring Method | Screw terminal field wiring |
| Redundancy Support | Compatible with redundant system architecture |
FAQ
Q1: How many output channels does the module provide?
The MC-PAIH03 51304754-150 provides 16 independent digital output channels for industrial control.
Q2: What is the output voltage level?
The MC-PAIH03 51304754-150 supports 24V DC switching output for field devices.
Q3: What is the delivery time?
We keep MC-PAIH03 51304754-150 in stock, and we ship within 3 days to 2 weeks.
Q4: Which logistics services do you use?
We usually ship MC-PAIH03 51304754-150 via DHL and other reliable international carriers.
Q5: Can I return the product if quality issues occur?
Yes, we support returns within 30 days if any quality issue occurs after delivery.
Q6: Is the product new and original?
We provide MC-PAIH03 51304754-150 as brand new, original, and factory-sealed inventory.
