Overview

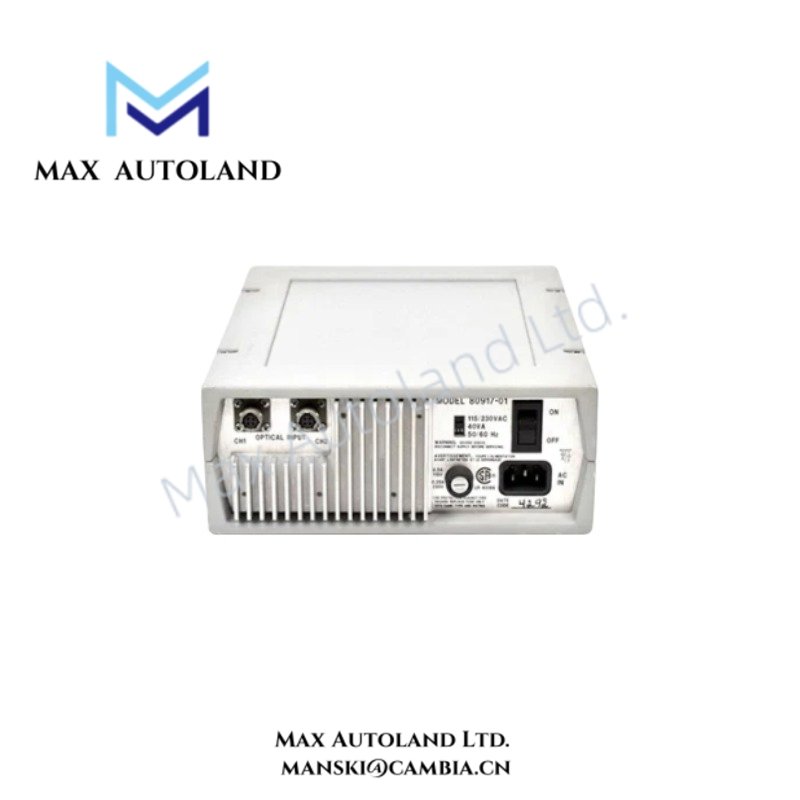

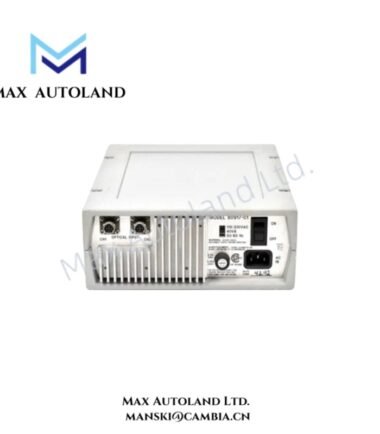

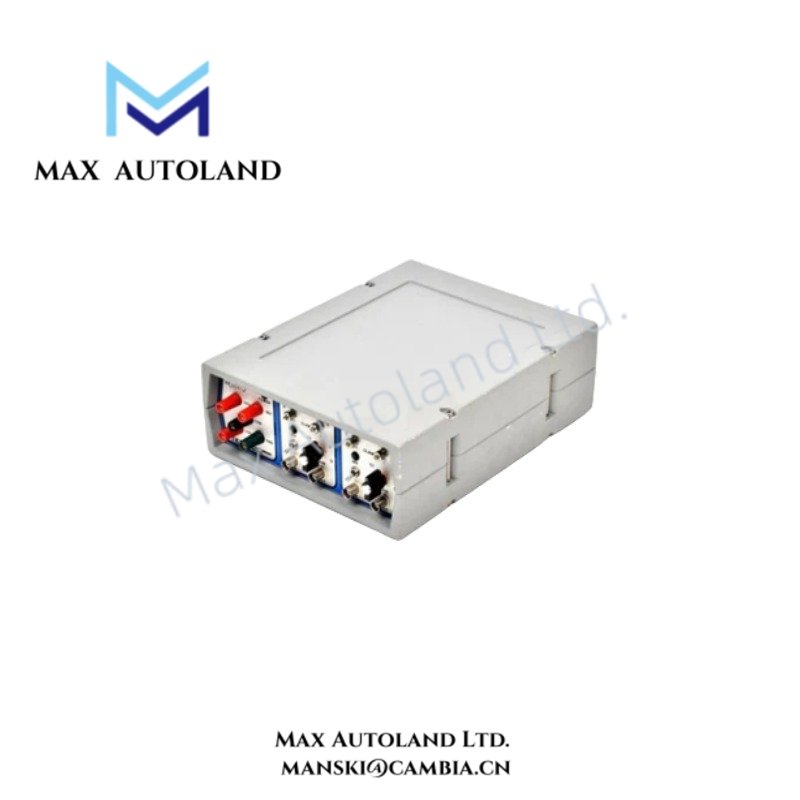

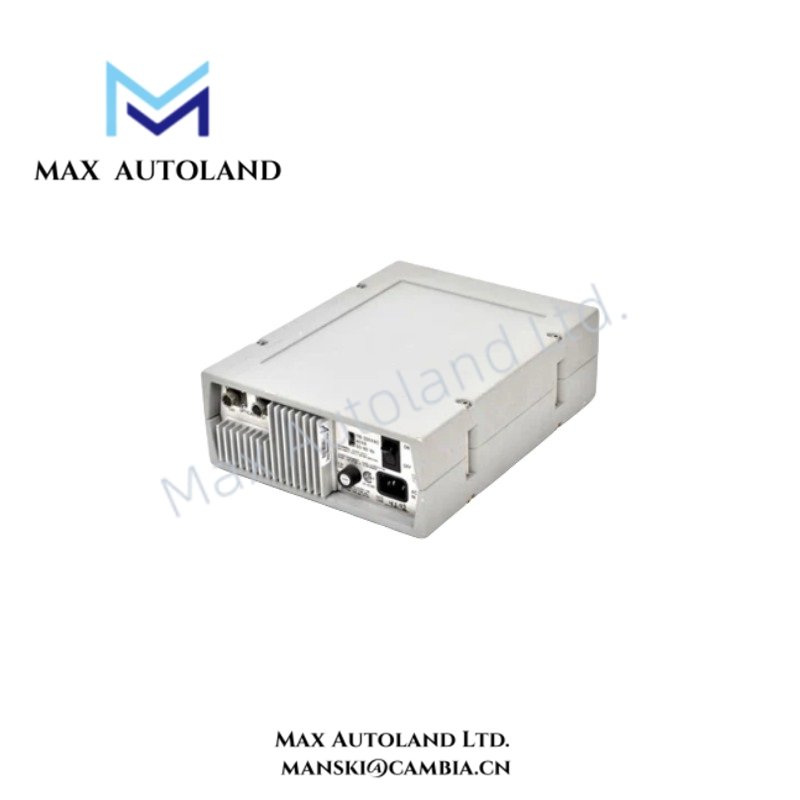

The Bently Nevada TK15 (80917-01), also cataloged as the TK15 Keyphasor Conditioner and Power Supply, operates as a dedicated hardware component for Keyphasor signal conditioning and transducer power supply within machinery diagnostic systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK15 / 80917-01 |
| Brand | Bently Nevada |
| Product Type | Keyphasor Conditioner and Power Supply |
| Origin | USA |
| Channel Configuration | Dual-channel signal conditioning |
| Supported Inputs | Proximity probes, velocity sensors, acceleration sensors, optical pickups |
| Primary Function | Provides transducer excitation power and conditioned phase reference output |
| Signal Application | Keyphasor phase reference, speed measurement, rotor analysis |
| Installation Type | Portable field diagnostic equipment |
Rotor Dynamics Signal Conditioning
The Bently Nevada TK15 processes Keyphasor reference signals for rotor dynamics measurement and phase-based analysis. It conditions raw transducer signals into stable outputs for diagnostic instruments. Therefore, technicians can verify rotational phase information during field testing without requiring a permanent monitoring rack.
The unit supports proximity probe applications that require eddy-current probe scaling verification and gap voltage validation. For Bently Nevada proximity systems, engineers commonly verify probe operation near the -10 VDC gap voltage target to confirm correct mechanical positioning and signal response.
The TK15 also reduces measurement errors caused by unstable signal levels. Its conditioning function supports rotor phase tracking, vibration diagnostics, and temporary monitoring configurations.
Frequently Asked Questions
Q: Does the TK15 provide permanent machinery protection monitoring functions?
A: No. The TK15 is a portable conditioner and power supply designed for field signal preparation and diagnostic measurements. It does not replace a permanent machinery protection system.
Q: Can the TK15 power different transducer types?
A: The TK15 supports multiple industrial transducer types, including proximity probes, velocity sensors, acceleration sensors, and optical pickups. The connected sensor requirements must match the configured channel characteristics.
Q: Does the TK15 support Keyphasor signal analysis for rotor diagnostics?
A: Yes. The unit provides conditioned Keyphasor outputs used for phase reference measurements, speed verification, and rotor dynamics analysis.
Field Installation Guidelines
- Connect the selected transducer to the correct TK15 input channel according to the sensor wiring requirements.
- Use shielded instrumentation cable for signal connections. Connect cable shields according to the site grounding practice to reduce electrical interference.
- Maintain separation between sensor signal wiring and high-current power cables to minimize induced noise.
- Verify transducer polarity, signal level, and mechanical installation condition before collecting diagnostic data.
- When using proximity probes, confirm probe gap condition and validate the output voltage before performing rotor phase measurements.
- Avoid placing the portable unit near strong electromagnetic sources during field measurements.
