Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

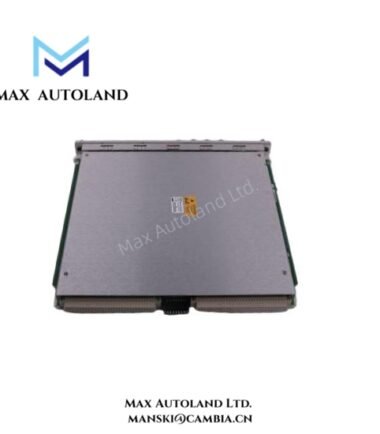

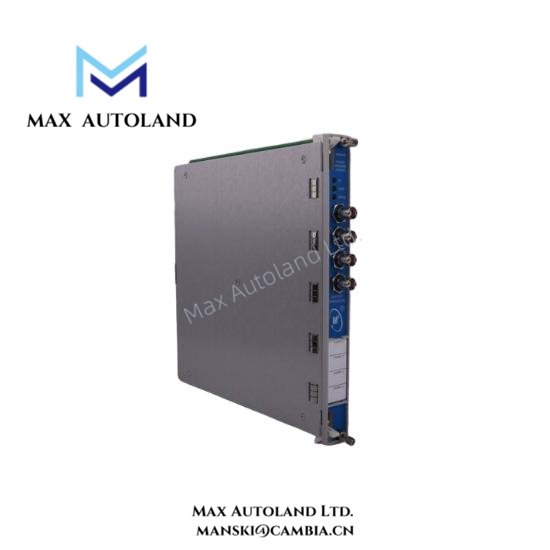

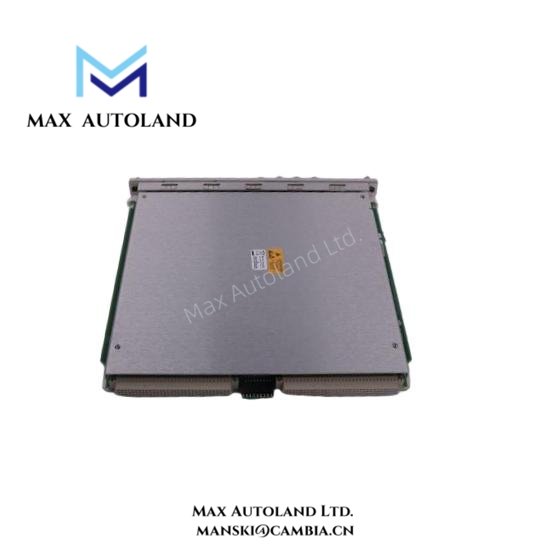

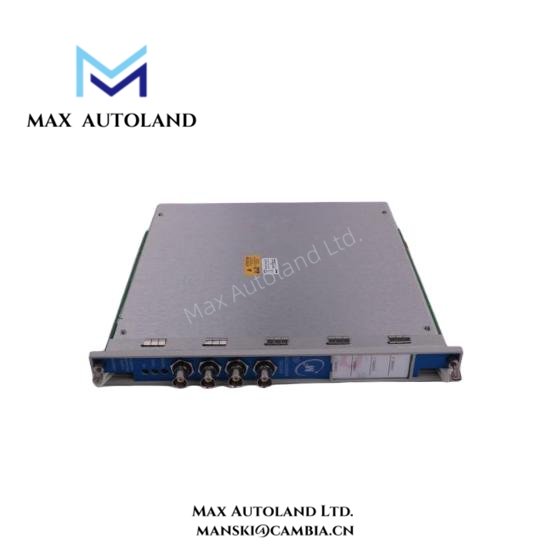

| Model | 176449-05 | Bently Nevada Dynamic Pressure Monitor |
| Manufacturer | Bently Nevada | Part of 3500 Machinery Protection Systems |
| Module Type | Dynamic Pressure Monitor | Measures dynamic pressure in machinery |
| Measurement Range | 0–100 psi typical | Consult datasheet for full ranges |
| Accuracy | ±0.25% of full scale | High-precision monitoring |
| Frequency Response | DC to 1 kHz | Suitable for high-speed machinery |
| Output Signal | 4–20 mA analog | Compatible with 3500 input modules |
| Input Power | 24 VDC typical | Operational range: 18–30 VDC |
| Operating Temperature | -20°C to +70°C | Industrial-grade performance |
| Storage Temperature | -40°C to +85°C | Ensures durability during storage |
| Humidity | 5%–95% non-condensing | Standard industrial specification |
| Mounting | DIN rail or panel mount | Flexible installation options |
| Dimensions (L×W×H) | 100 × 50 × 25 mm | Compact design for easy integration |
| Weight | 0.28 kg | Lightweight for installation convenience |
| Protection | Overvoltage, transient, and short-circuit | Maintains signal integrity |
| Compliance | CE, RoHS | Meets international safety and environmental standards |
FAQ
Q1: Is the 176449-05 module compatible with existing 3500 systems?
A1: Yes, it fully integrates with all standard Bently Nevada 3500 modules.
Q2: What is the typical delivery time for this module?
A2: Stocked modules ship within 3–14 days depending on order size and logistics.
Q3: Can it operate in high-humidity industrial environments?
A3: Yes, it supports 5%–95% non-condensing humidity for industrial applications.
Q4: What signal type does it output?
A4: The module provides a standard 4–20 mA analog output compatible with 3500 inputs.
Q5: Is the module suitable for extreme temperatures?
A5: Yes, it operates from -20°C to +70°C and can be stored from -40°C to +85°C.
Q6: What if there’s a quality issue with the product?
A6: We support a 30-day return policy for any manufacturing defects or issues.
