Overview
Specification
| Parameter | Description |
|---|---|

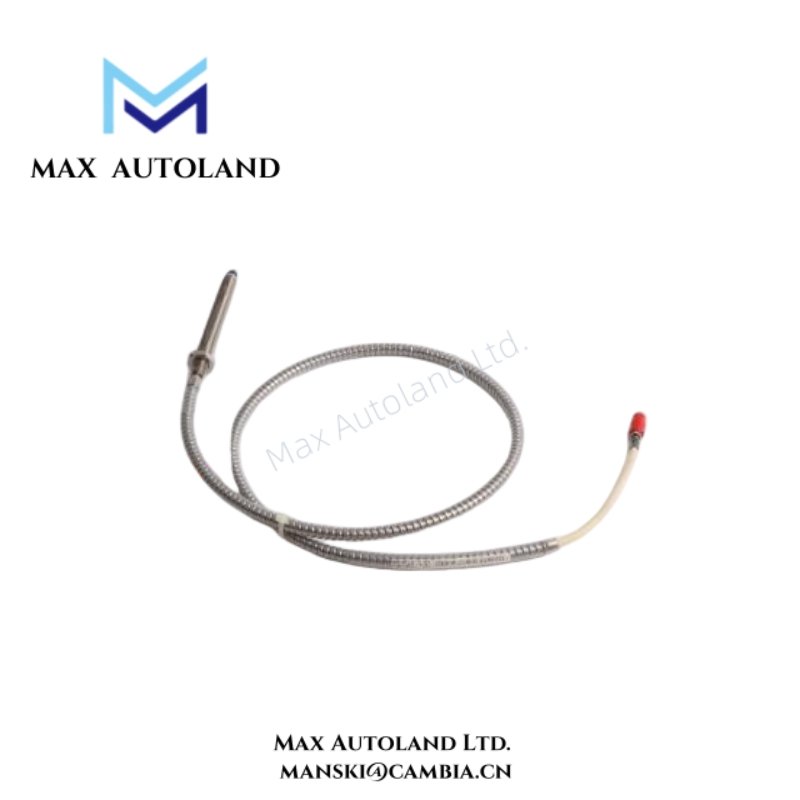

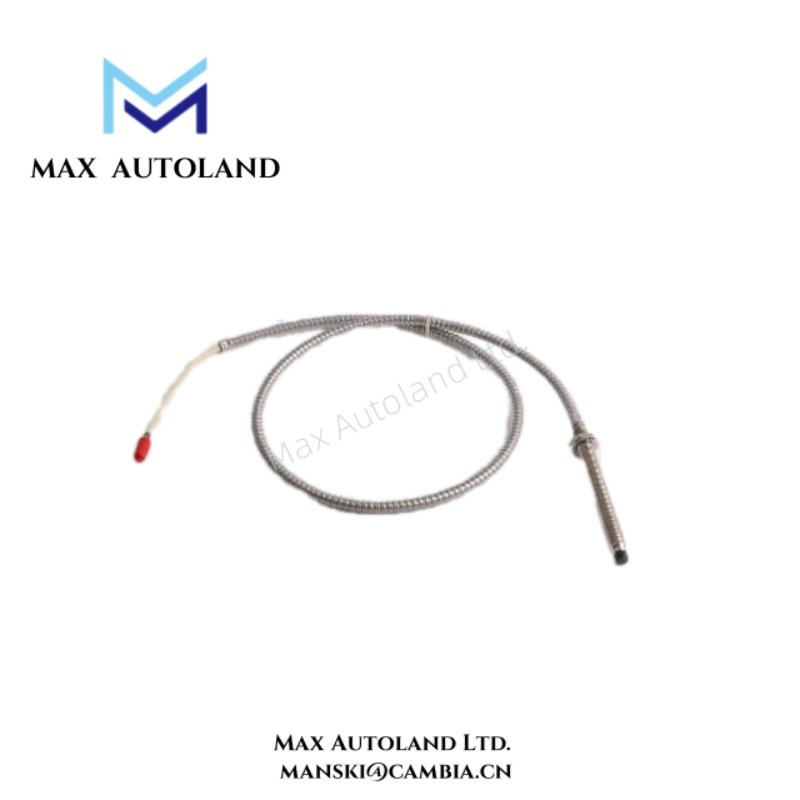

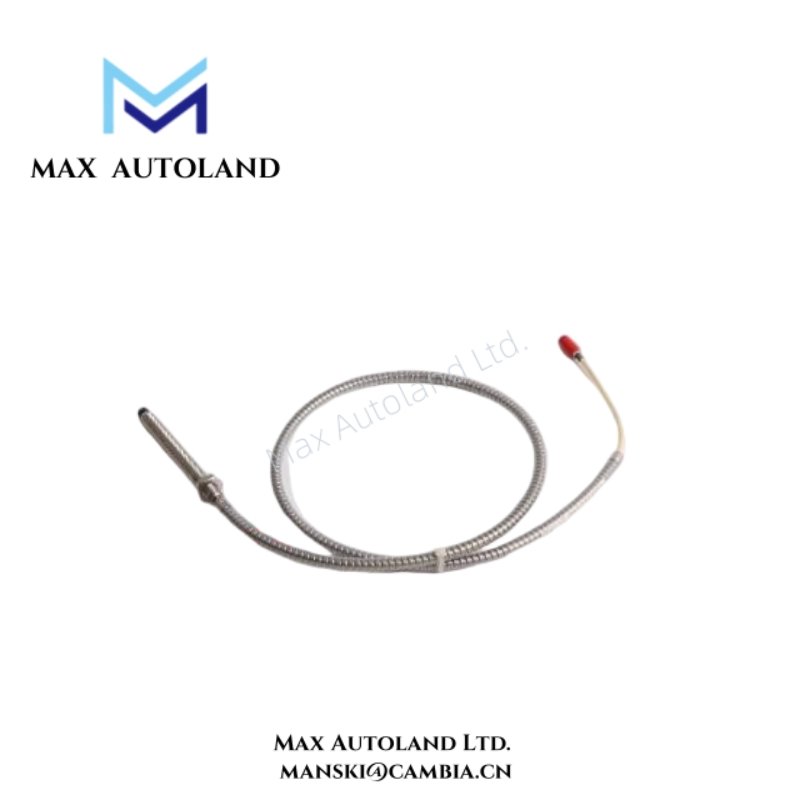

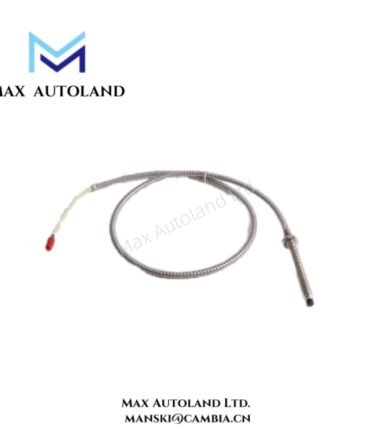

| Model | Bently Nevada 22810-00-06-10-02 |
| Module Type | Proximity Probe |
| Measurement Type | Shaft displacement / vibration |
| Sensing Range | Typically 0–0.127 mm (0–5 mils), check system specifications |
| Frequency Response | Up to 10 kHz typical |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Cable Type | Shielded coaxial for noise immunity |
| Mounting Method | Probe holder or bracket (as per system requirements) |
| Connector Type | Standard Bently Nevada connector |
| Housing | Stainless steel, industrial grade |
| Compatibility | Bently Nevada 3500 series monitoring systems |
| Durability | Designed for harsh industrial environments |
| Maintenance | Minimal, periodic inspection recommended |
FAQ
A: It measures shaft displacement, vibration, and position for rotating machinery monitoring.
Q2: Is this probe compatible with Bently Nevada monitoring systems?
A: Yes, it integrates directly with Bently Nevada 3500 series systems for real-time data collection.
Q3: What industrial environments can the probe operate in?
A: It operates reliably in temperatures from -40°C to 120°C and areas with high vibration or electrical noise.
Q4: What maintenance is required for this probe?
A: Minimal maintenance is needed; periodic inspection of connectors and probe condition ensures optimal performance.
Q5: Can the probe support predictive maintenance programs?
A: Yes, it provides continuous real-time data that enables early detection of imbalance, misalignment, or wear.
Q6: How does the probe improve machinery safety and reliability?
A: By detecting abnormal shaft movement early, it helps prevent failures, reduce downtime, and extend equipment lifespan.
