Overview

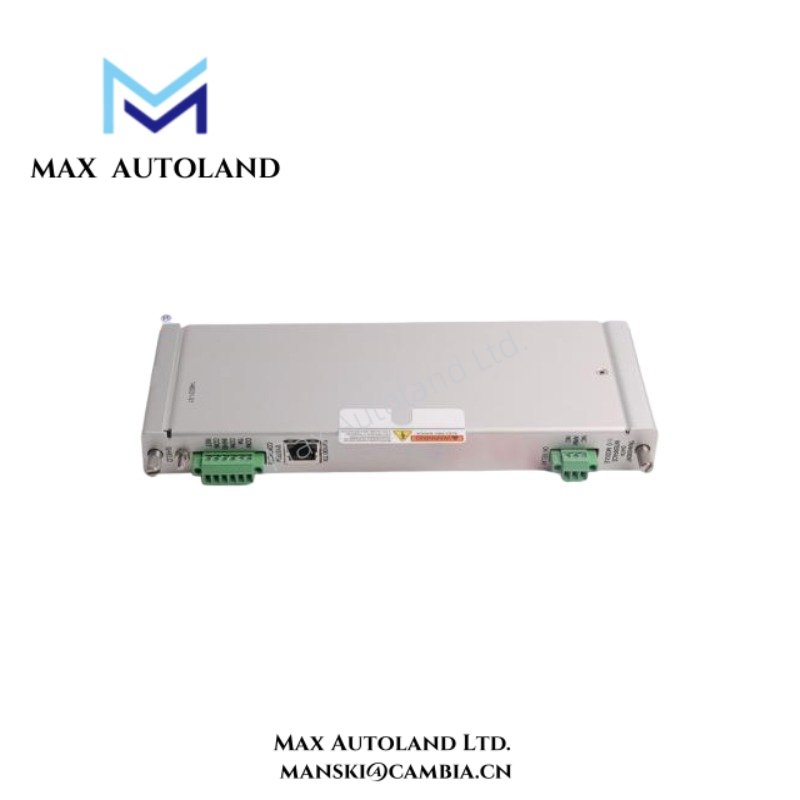

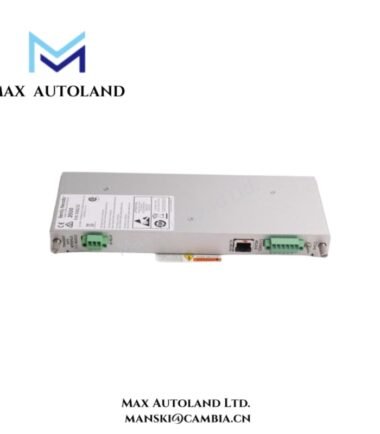

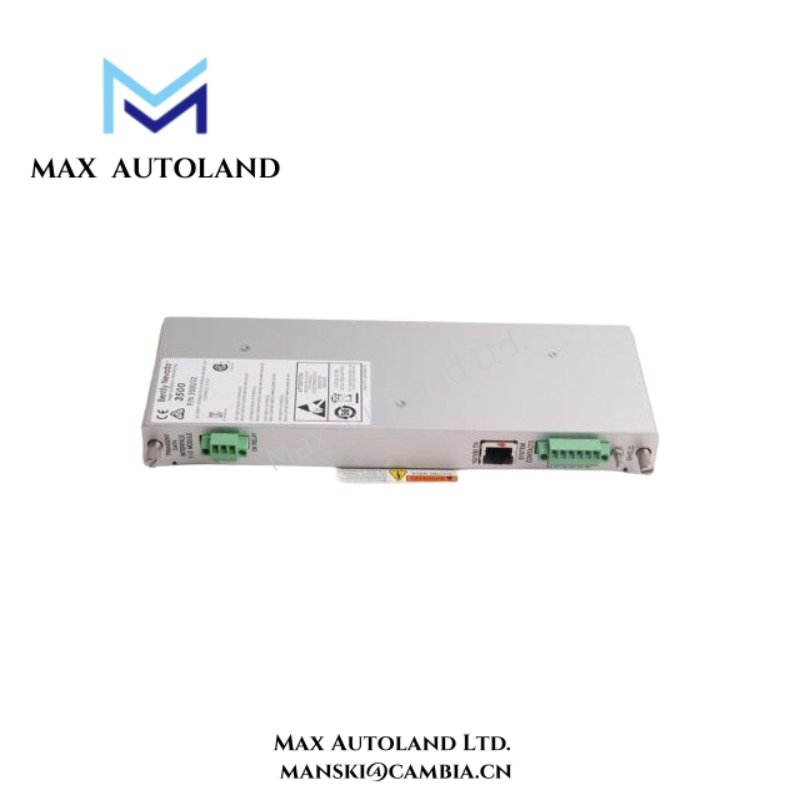

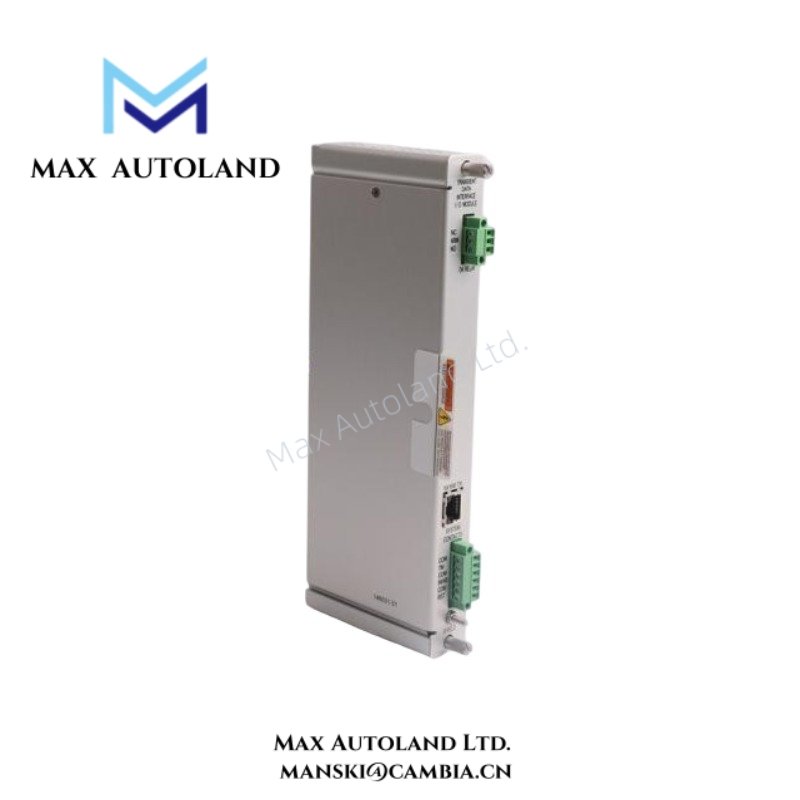

The Bently Nevada 3500/22 Transient Data Interface I/O Module is engineered for advanced machinery diagnostics and data communication. It acts as a critical gateway between the 3500 monitoring system and external data acquisition or analysis platforms.
This module enables high-resolution transient data capture, which supports detailed analysis of machine behavior during dynamic events. Moreover, it provides seamless integration with condition monitoring software, allowing engineers to interpret complex vibration patterns efficiently.
In addition, the module supports communication with external systems for data trending, archiving, and advanced diagnostics. Therefore, it enhances predictive maintenance strategies and reduces the risk of unexpected equipment failures.
Engineers widely deploy this module in critical rotating equipment environments where transient events must be captured accurately. For instance, it is commonly used in turbines, compressors, and high-speed machinery requiring precise diagnostic insight.
Key Features and Functional Highlights
- Enables high-speed transient data acquisition for detailed machinery diagnostics
- Supports communication between 3500 system and external analysis software platforms
- Provides Ethernet-based data transfer for reliable and fast communication
- Moreover, integrates with Bently Nevada System 1 software for advanced condition monitoring
- Facilitates real-time and historical data analysis for predictive maintenance strategies
- Therefore, improves decision-making by delivering accurate and timely machine condition insights
- Designed for seamless installation within the 3500 rack architecture
Specification
| Parameter | Description |
|---|---|
| Module Type | Transient Data Interface (TDI) I/O Module |
| Model Number | 3500/22-01-03-01 |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Function | Data communication and transient data acquisition interface |
| Communication Interface | Ethernet connection for system integration and data transfer |
| Data Acquisition | High-resolution transient waveform capture and time-based event recording |
| Software Compatibility | Compatible with Bently Nevada System 1 condition monitoring software |
| Mounting | Rack-mounted within 3500 system chassis |
| Data Output | Real-time and historical data streaming to external systems |
| Protocol Support | Industrial communication protocols for monitoring and diagnostics integration |
| Power Supply | Provided through 3500 rack system |
| Environmental Design | Suitable for industrial environments with vibration and temperature variations |
| Reliability | Designed for continuous operation in critical machinery monitoring systems |
| Compliance | Meets industrial standards for machinery protection and monitoring systems |
FAQ
Q1: What is the main function of the 3500/22 module?
A1: It provides transient data acquisition and communication between the 3500 system and external monitoring platforms.
Q2: Does this module support real-time data transmission?
A2: Yes, it supports real-time and historical data streaming for advanced diagnostics and condition monitoring.
Q3: Which software works with this module?
A3: It integrates with Bently Nevada System 1 software for comprehensive machinery analysis and diagnostics.
Q4: Where is this module typically used?
A4: It is widely used in turbines, compressors, and other critical rotating machinery applications.
Q5: What communication method does it use?
A5: It uses Ethernet communication for fast and reliable data transfer between systems.
