Overview
Its robust construction and redundant architecture enable uninterrupted system performance even during module replacement or maintenance. Moreover, it supports both primary and backup configurations, making it ideal for environments where uptime and safety are paramount.
Specification
| Parameter | Specification |
|---|---|
| Model Number | 3500/15 106M1081-01 |

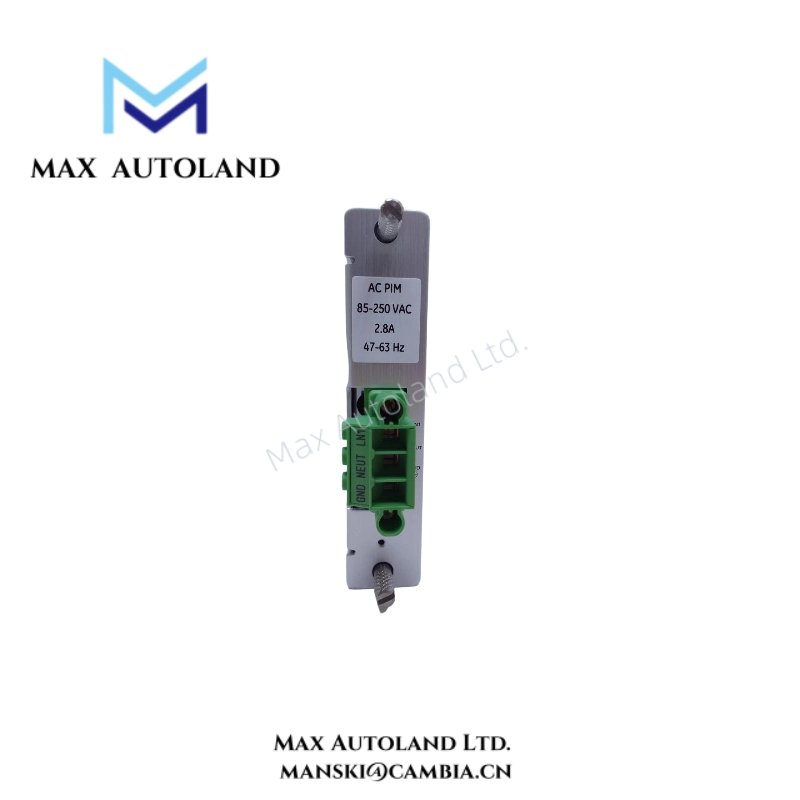

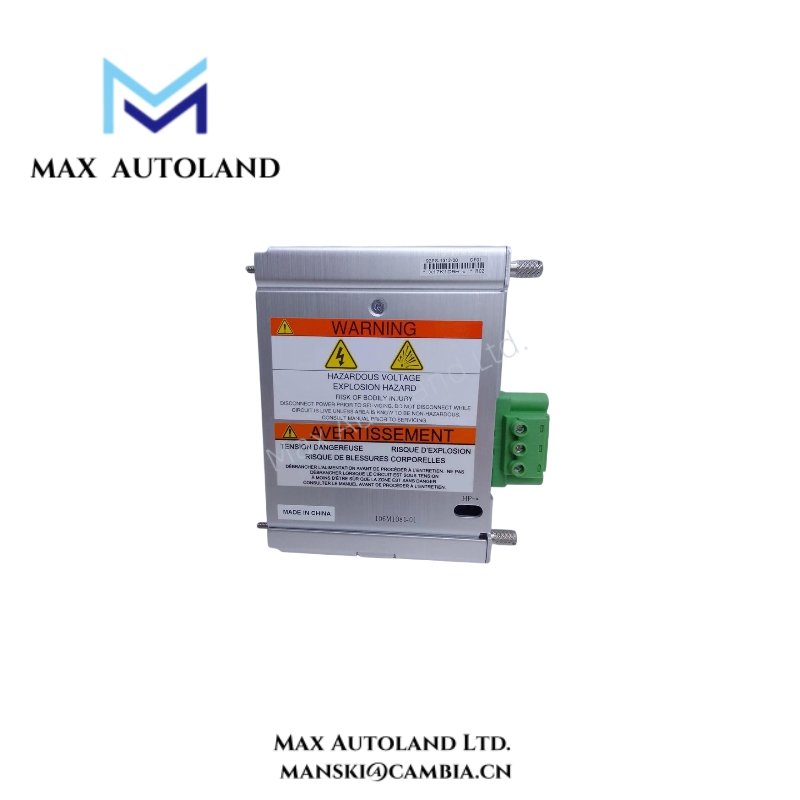

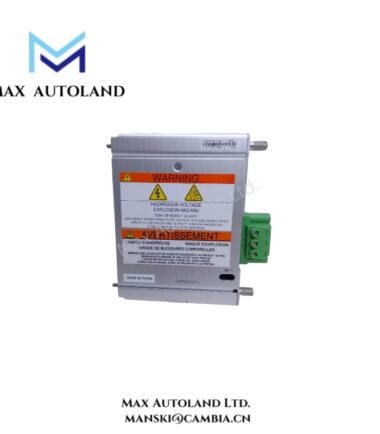

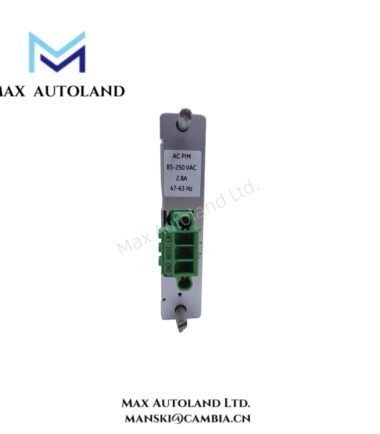

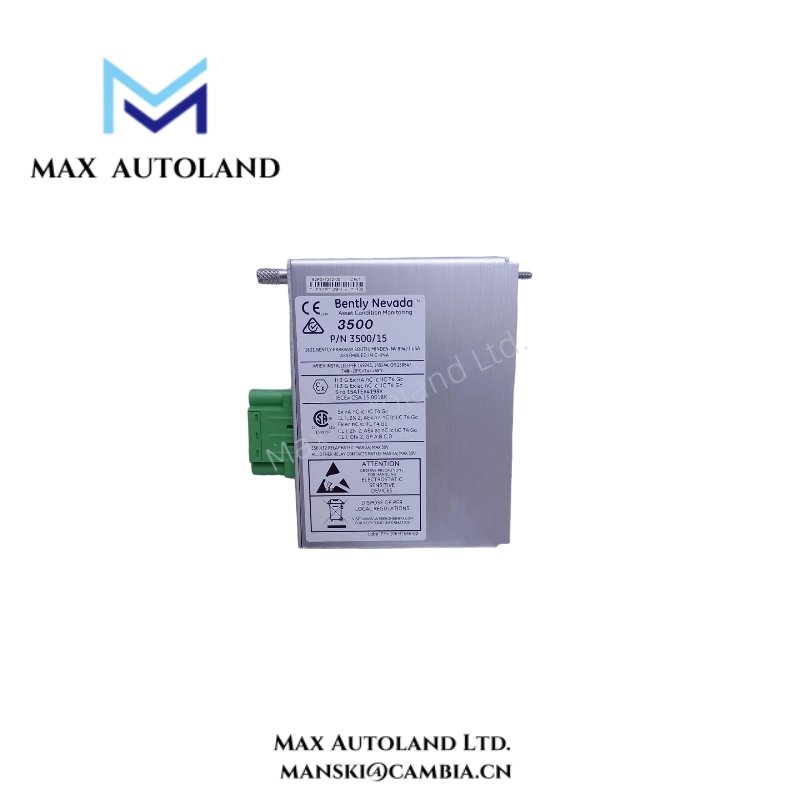

| Product Type | Universal AC Power Input Module |
| Brand | Bently Nevada (GE) |
| Input Voltage Range | 85–264 Vac rms (non-hazardous); 85–250 Vac rms (hazardous) |
| Nominal Voltage | 110–220 Vac |
| Input Frequency | 47–63 Hz |
| Full Rack Current Draw | 2.8 A rms (maximum) |
| Power Supply Type | Universal AC (supports redundancy) |
| Overvoltage Protection | Fuse opens on Power Input Module |
| Output Power | Supports entire 3500 system rack |
| Module Dimensions (H×W×D) | 120.7 mm × 25.4 mm × 114.3 mm (4.75 in × 1.0 in × 4.5 in) |
| Module Weight | 0.34 kg (0.75 lb) |
| Power Supply Dimensions (H×W×D) | 120.7 mm × 50.8 mm × 251.5 mm (4.75 in × 2.0 in × 9.9 in) |
| Power Supply Weight | 1.39 kg (3.06 lb) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95% non-condensing |
| Rack Configuration | Two half-height slots for redundant installation |
| Compliance | CE, CSA, ATEX/IECEx certified |
FAQ
Yes. A single power module can fully operate the rack; however, using a second module ensures redundancy and higher system reliability.
Q2: What happens if one power module fails?
The secondary module automatically assumes full operation without interrupting rack performance.
Q3: Is the Universal AC module compatible with older 3500 High or Low Voltage AC modules?
No. The Universal AC Power Supply and Power Input Module are not compatible with legacy AC units.
Q4: How can I check if the power module is functioning correctly?
A green “Supply OK” LED on the front panel indicates normal operation.
Q5: What environments are suitable for the 3500/15 module?
It supports a wide operating temperature range and is suitable for industrial and hazardous environments requiring high reliability.
