Overview

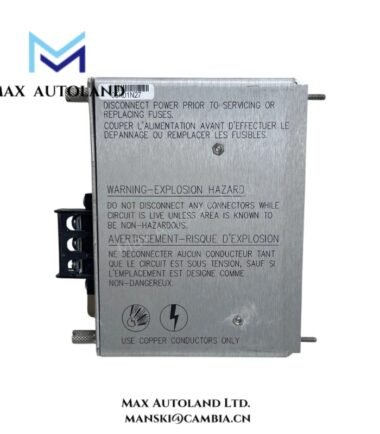

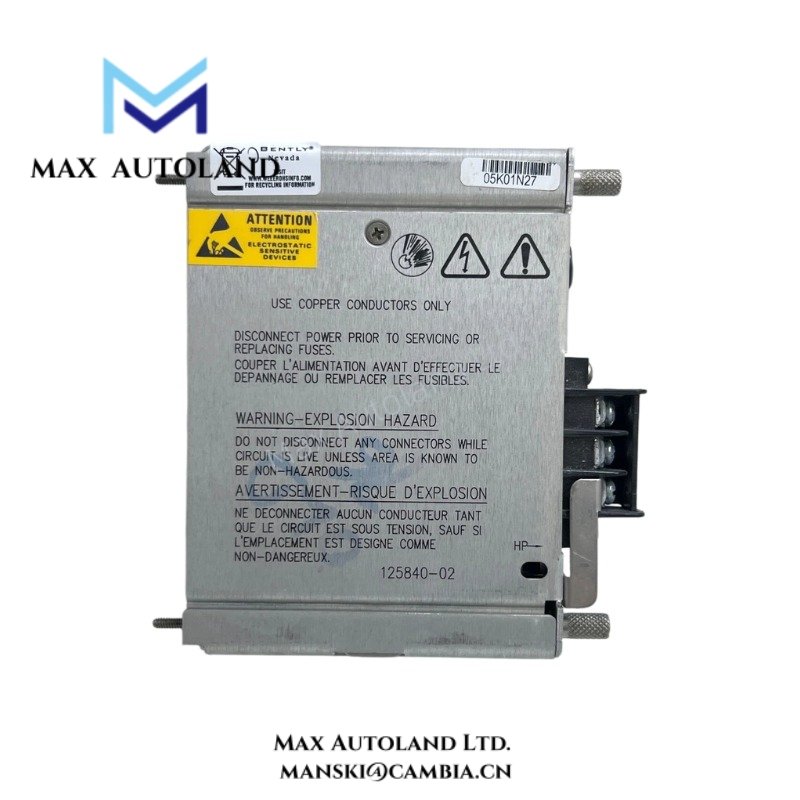

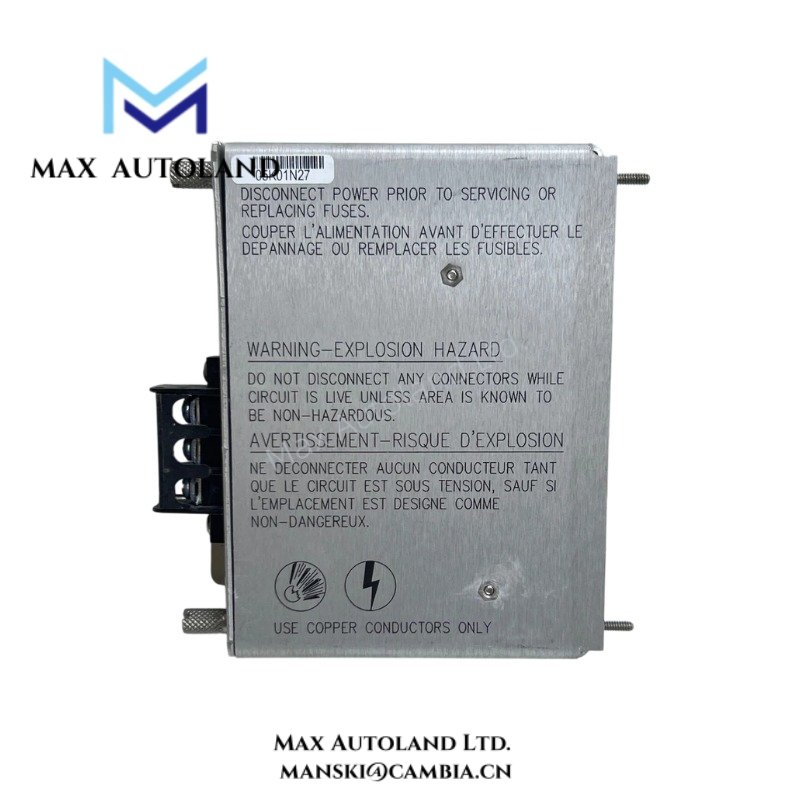

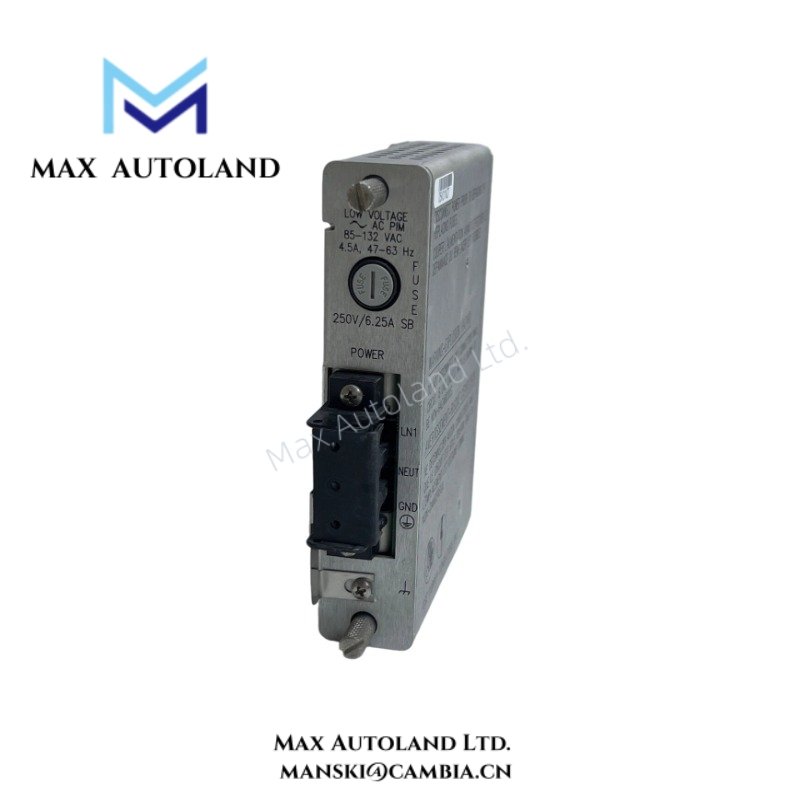

The Bently Nevada 3500/15 AC Power Input Module 125840-02 delivers stable and reliable power to the 3500 machinery protection system. It ensures continuous operation of monitoring modules by converting incoming AC power into regulated system supply.
This module plays a foundational role in maintaining system integrity across critical industrial applications. Moreover, it supports redundant power configurations, which significantly improve system availability and fault tolerance.
Engineers depend on this power input module to provide consistent energy under fluctuating industrial power conditions. Therefore, it protects sensitive monitoring electronics from voltage instability and unexpected interruptions.
In addition, the module integrates seamlessly within the 3500 rack architecture, enabling straightforward installation and system expansion. This design simplifies maintenance procedures and reduces overall operational complexity.
Key Features and Functional Highlights
- Provides regulated AC power input for the Bently Nevada 3500 system
- Supports redundant power supply configurations for enhanced system reliability
- Ensures stable voltage output for sensitive monitoring modules
- Moreover, protects system components from power fluctuations and disturbances
- Designed for continuous operation in demanding industrial environments
- Therefore, improves overall system uptime and reduces risk of monitoring failure
- Fully compatible with standard 3500 rack configurations
Specification
| Parameter | Description |
|---|---|
| Module Type | AC Power Input Module |
| Model Number | 3500/15 |
| Part Number | 125840-02 |
| System Compatibility | Bently Nevada 3500 Machinery Protection System |
| Input Voltage | Wide-range AC input (typically 85–264 VAC) |
| Input Frequency | 47–63 Hz |
| Power Output | Provides regulated DC power to system backplane |
| Redundancy Support | Yes, supports dual power supply configurations |
| Mounting | Rack-mounted within 3500 system chassis |
| Power Distribution | Supplies power to all installed 3500 modules via backplane |
| Protection Features | Overvoltage, undervoltage, and short circuit protection |
| Indicators | Front panel status indicators for power and module condition |
| Environmental Design | Suitable for industrial environments with vibration and temperature variations |
| Operating Temperature | Designed for standard industrial operating ranges |
| Reliability | Engineered for continuous, long-term operation in critical systems |
| Compliance | Meets industrial standards for machinery protection systems |
FAQ
Q1: What is the primary function of the 3500/15 module?
A1: It provides regulated AC power input and distributes stable power to all modules within the 3500 system.
Q2: Does this module support redundancy?
A2: Yes, it supports dual power supply configurations for improved system reliability and availability.
Q3: What input voltage range does it support?
A3: It typically supports a wide AC input range from 85 to 264 volts.
Q4: Can the module protect against power fluctuations?
A4: Yes, it includes protection features such as overvoltage and short circuit protection.
Q5: Where is this module commonly used?
A5: It is used in power plants, oil and gas facilities, and industrial environments requiring continuous monitoring systems.
