Overview

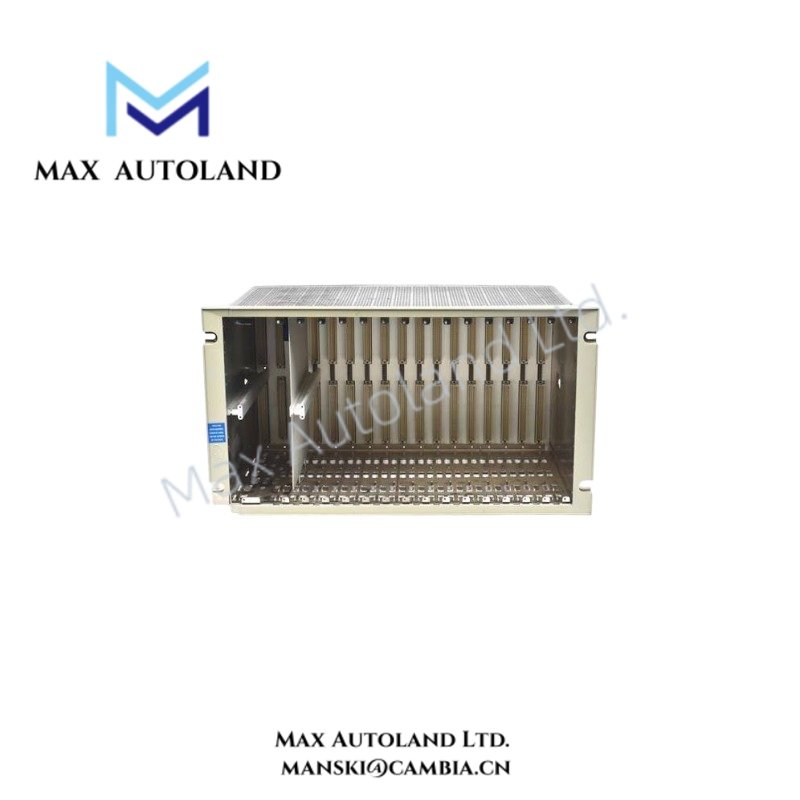

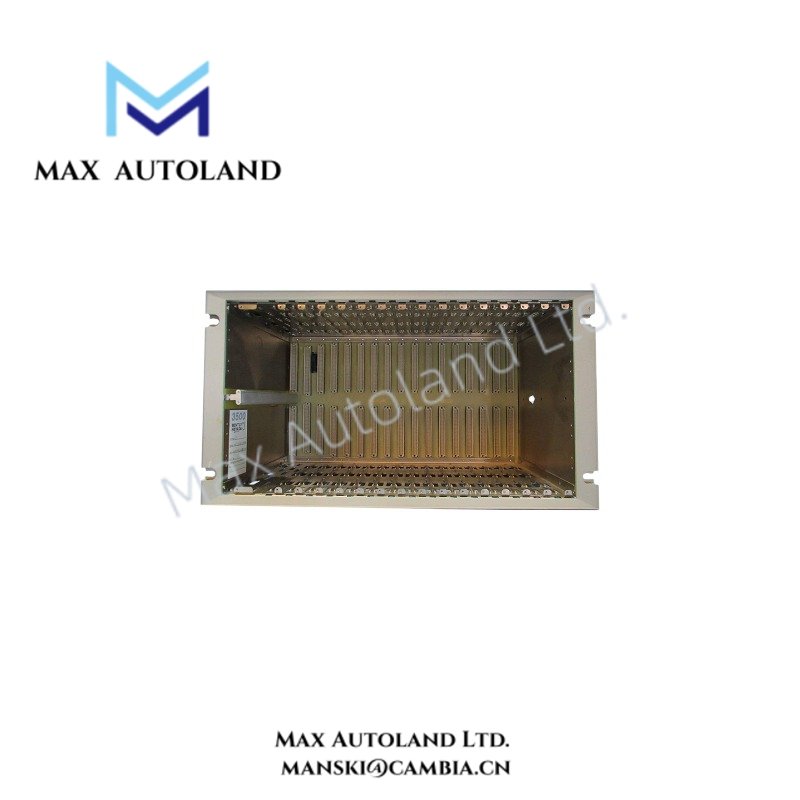

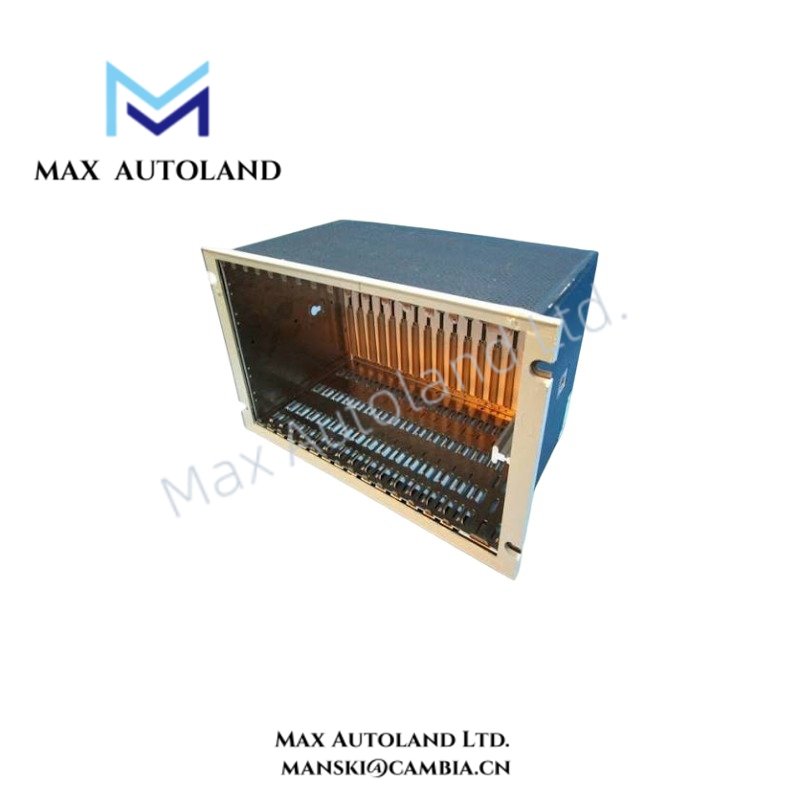

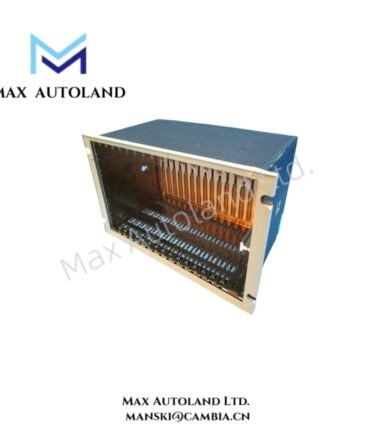

The Bently Nevada 3500/05-02-05-00-00-01, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for module mounting, backplane communication, and power distribution within the Bently Nevada 3500 Monitoring System.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/05-02-05-00-00-01 |
| Brand | Bently Nevada |
| Product Type | 3500 System Rack |
| Base Model | 3500/05 |
| Origin | USA |
| Weight | Approx. 6 kg |
| Dimensions | Approx. 482.6 mm W x 267 mm H x 246 mm D |
| Operating Temp | -30 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | 95% non-condensing |
| Power Consumption | Supplied through installed 3500 power supply modules |
| Rack Configuration | 19-inch standard depth rack |
| Module Positions | 14 full-height module slots |
| Power Supply Positions | 2 power supply slots |
| Backplane Interface | Bently Nevada 3500 proprietary backplane bus |
| Mounting Type | Rack mount installation |
| Module Connection | Plug-in module architecture with front retention mechanism |
| Communication Support | 3500 Series communication and monitoring modules |
Rotor Monitoring System Integration
The 3500/05-02-05-00-00-01 rack provides the mechanical and electrical platform for Bently Nevada 3500 machinery protection modules. Furthermore, the rack enables installed modules to exchange data through the internal backplane bus while distributing power from installed 3500 power supply modules.
Bently Nevada monitoring modules installed in this rack process signals from eddy-current probes, accelerometers, Keyphasor systems, and process sensors. Therefore, the rack supports rotor vibration analysis, shaft position monitoring, speed measurement, and protection logic execution.
The 3500 architecture uses sensor signal conditioning methods that include eddy-current probe scaling, gap voltage validation, and rotor dynamics analysis through dedicated monitoring modules. Additionally, the system design manages signal separation and cross-talk suppression between adjacent monitoring channels when compatible modules are installed.
Frequently Asked Questions
Q: Does the Bently Nevada 3500/05-02-05-00-00-01 rack perform vibration measurement directly?
A: No. The rack provides module mounting, backplane communication, and power distribution. Installed 3500 monitoring modules execute vibration and position measurement functions.
Q: Can the 3500/05-02-05-00-00-01 support redundant power supply operation?
A: Yes. The rack provides two power supply positions and supports redundant configurations when compatible 3500 power supply modules are installed.
Q: Does the rack support hot replacement of monitoring modules?
A: Module replacement procedures depend on the installed 3500 system configuration, operating conditions, and maintenance procedures. Verify system shutdown requirements before removing modules.
Field Installation Guidelines
- Install the rack inside a suitable industrial cabinet with sufficient clearance for module insertion and wiring access.
- Connect the chassis grounding point according to the cabinet grounding design before installing monitoring modules.
- Route sensor wiring separately from high-voltage power cables to reduce electrical interference.
- Verify backplane connector condition before inserting 3500 modules.
- Confirm power supply module compatibility before applying system voltage.
- Maintain correct module slot allocation according to the approved 3500 system configuration.
- Check communication connections after rack installation and module insertion.
- Avoid locations with excessive moisture, corrosive gases, or mechanical shock beyond equipment specifications.
