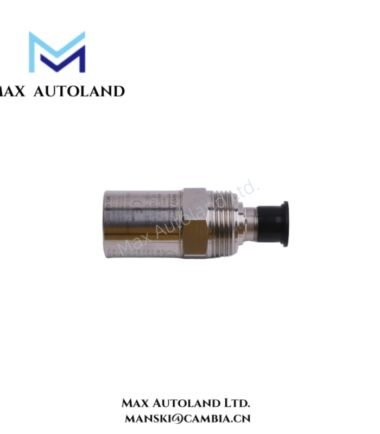

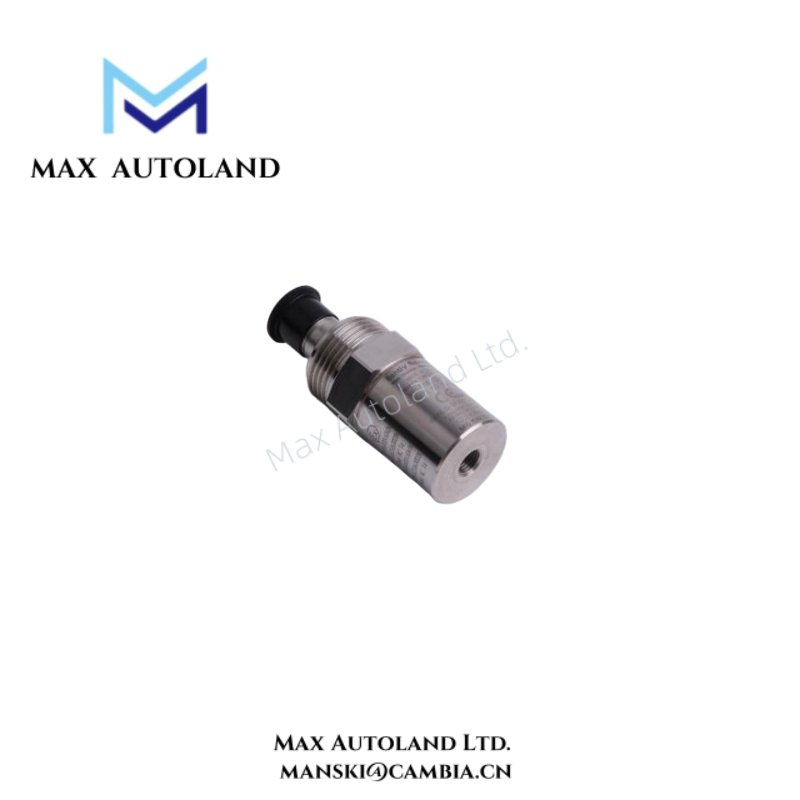

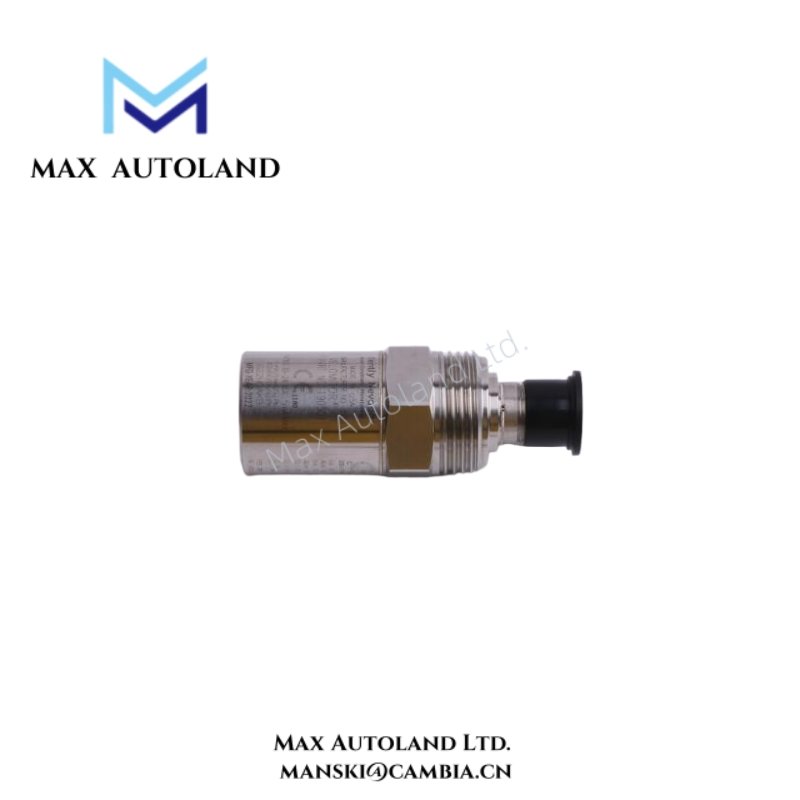

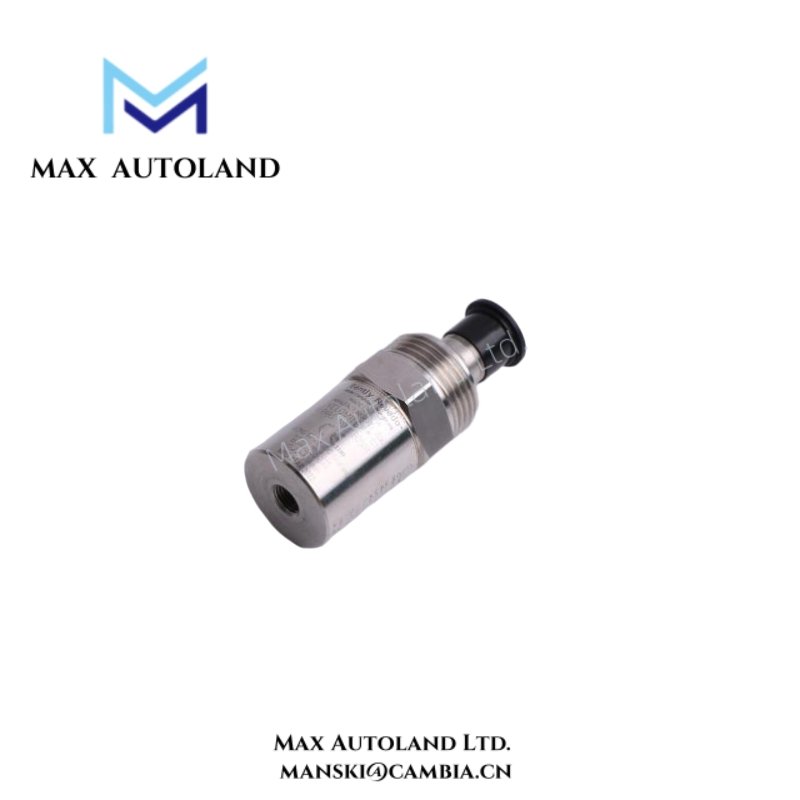

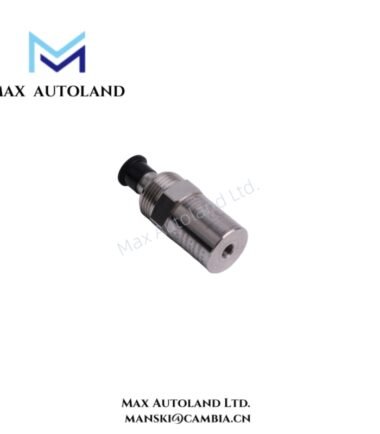

Overview
Moreover, the Velomitor CT supports predictive maintenance programs by supplying continuous vibration data. Consequently, engineers can detect misalignment, unbalance, or early bearing wear, reducing unexpected downtime. In addition, the transducer integrates seamlessly with condition-monitoring systems across power plants, petrochemical facilities, and industrial machinery, offering a trusted and widely used solution. Therefore, its ability to maintain signal quality over long cable runs simplifies installation while enhancing system reliability.
Specification
| Parameter | Specification |
|---|---|
| Model / Part Number | 190501 Velomitor CT |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 3 Hz to 900 Hz (±1 dB), 1.5 Hz to 1 kHz (±3 dB) |
| Velocity Range | Up to 63.5 mm/s (2.5 in/s) peak |
| Amplitude Linearity | ±2% up to 63.5 mm/s peak |
| Transverse Response | <5% of axial sensitivity |
| Mounted Resonant Frequency | ≥9 kHz (stud-mounted) |
| Output Bias Voltage | 10.1 V DC ±1.0 V |
| Dynamic Output Impedance | <400 Ω typical |
| Broadband Noise Floor | 0.229 mm/s (0.009 in/s) peak |
| Base Strain Sensitivity | 0.43 mm/s per μstrain |
| Temperature Sensitivity | –8% to +5% typical over operating range |
| Operating Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Storage Temperature | –40 °C to +100 °C (–40 °F to +212 °F) |
| Shock Limit | 5000 g peak maximum |
| Humidity Limit | 100% condensing, non-submerged |
| Cable Length | Up to 305 m (1,000 ft) |
| Magnetic Field Susceptibility | <0.0068 mm/s per gauss @ 50 gauss, 50–60 Hz |
| Mounting Surface Diameter | 33 mm (1.3 in) |
| Mounting Torque | 4.5 N·m ±0.6 N·m (40 in-lbf ±5 in-lbf) |
| Connector Type | 2-pin MIL-C-5015, stainless steel |
| Case Material | 316L stainless steel |
| Weight | ~297 g (10.5 oz) typical |
FAQ
A: It is optimized for low-frequency vibration on slow-turning equipment, providing accurate casing velocity measurements.
Q: Can the sensor be mounted in any orientation?
A: Yes, it supports 360-degree mounting, ensuring installation flexibility.
Q: What type of connector does it use?
A: A 2-pin MIL-C-5015 stainless steel connector, ensuring rugged reliability.
Q: How long can the sensor cable be?
A: Supports up to 305 meters (1,000 feet) without signal loss.
Q: What is the maximum shock tolerance?
A: It can withstand up to 5000 g peak, suitable for high-dynamic industrial environments.
Q: Is it suitable for hazardous areas?
A: Certain variants have approvals for use in explosive or sensitive industrial environments.
