Overview
Configured for regulated power conversion in the Bently Nevada 3500 Machinery Protection System, the Bently Nevada 3500/15 (3500/15 Power Supply Module) provides direct electrical execution for rack power distribution and module operation control. The module converts AC or DC input power into regulated DC outputs for 3500 Series monitoring modules through the rack backplane.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/15 |
| Brand | Bently Nevada |
| Product Type | Power Supply Module |
| System Series | 3500 Machinery Protection System |
| Origin | USA |
| Weight | Approx. 1.0 kg |
| Dimensions | 241 mm x 24 mm x 119 mm |
| Operating Temp | -30 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | Rack dependent; supplies regulated DC power for installed 3500 modules |
| Input Voltage Options | 120 VAC / 240 VAC or 24 VDC / 125 VDC depending on configuration |
| Output Function | Regulated DC power distribution through 3500 rack backplane |
| Installation Position | Dedicated power supply slot in 3500 rack |
| Redundancy Configuration | Supports dual power supply rack arrangements |
| Interface Type | 3500 rack backplane power and status communication |
| Protection Functions | Input filtering, overload protection, and fault monitoring |

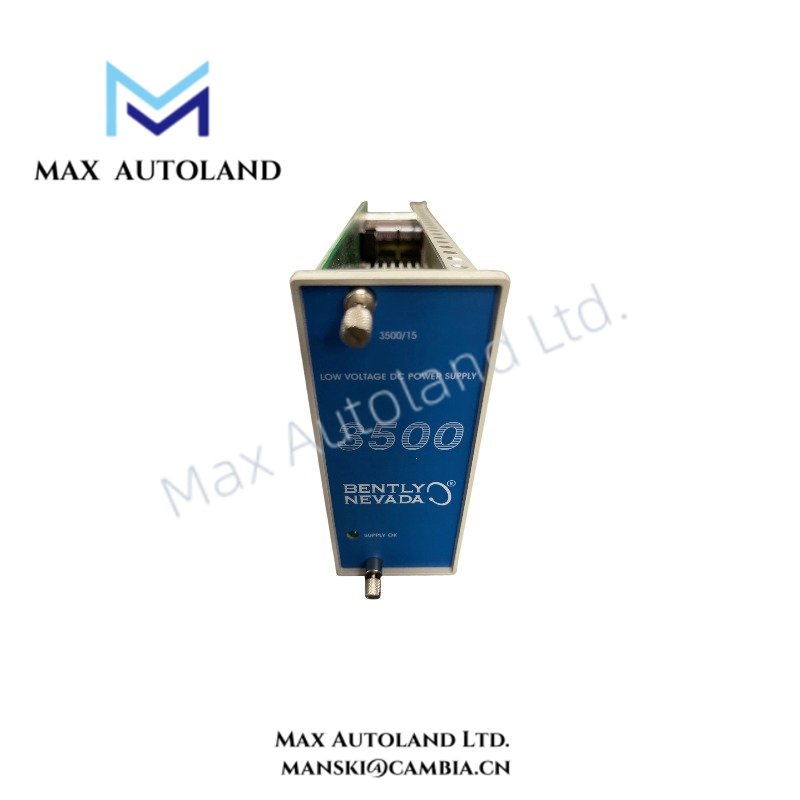

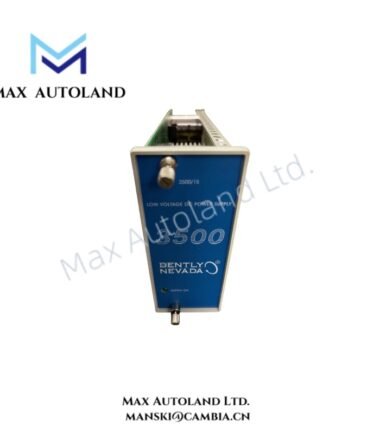

| Front Panel Indication | Power and fault status LEDs |
Eddy-Current Monitoring Power Architecture
The Bently Nevada 3500/15 supports the electrical infrastructure required by TSI and machinery monitoring modules installed in a 3500 rack. The module maintains stable DC power delivery for vibration, position, speed, and temperature monitoring circuits.
In addition, the 3500/15 provides power integrity for systems using eddy-current probe measurement chains. Stable rack voltage supports probe signal conditioning modules that perform displacement measurement, gap voltage validation, and rotor dynamics analysis.
The module design also supports signal quality requirements by maintaining controlled power distribution across the backplane. Therefore, connected monitoring modules can maintain consistent measurement performance during continuous machine operation.
Frequently Asked Questions
Q: What function does the Bently Nevada 3500/15 perform inside a 3500 rack?
A: The 3500/15 converts external AC or DC input power into regulated DC power and distributes it through the rack backplane to installed monitoring modules.
Q: Does the 3500/15 support redundant power configurations?
A: Yes. A 3500 rack can use two compatible 3500/15 modules for redundant power operation. The system configuration determines the power sharing and fault response behavior.
Q: Can the 3500/15 be replaced while the rack remains installed?
A: Replacement procedures depend on the rack configuration, operating conditions, and maintenance requirements. Follow approved Bently Nevada service procedures before removing the module.
Field Installation Guidelines
- Install the 3500/15 module only in the designated power supply position of a compatible 3500 rack.
- Verify the module input voltage rating before connecting field power wiring.
- Connect protective grounding according to plant electrical installation standards.
- Separate power wiring from low-level vibration and proximity signal cables to reduce electrical interference.
- Check rack backplane connectors for contamination, mechanical damage, or poor contact conditions before installation.
- Confirm front panel power and fault indicators after system energization.
- Use approved replacement modules with matching electrical specifications for existing rack configurations.
