Overview

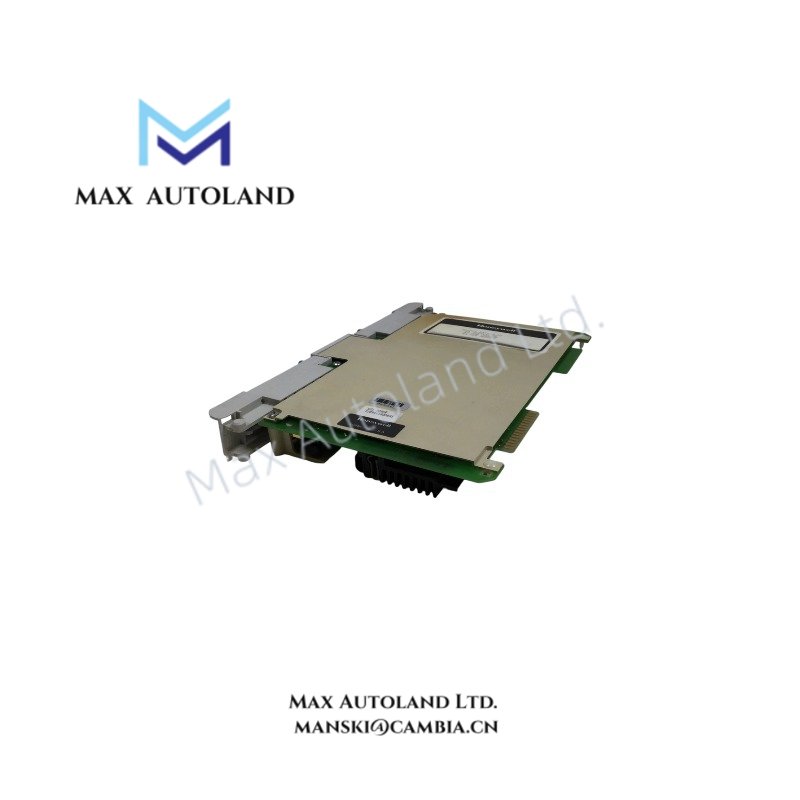

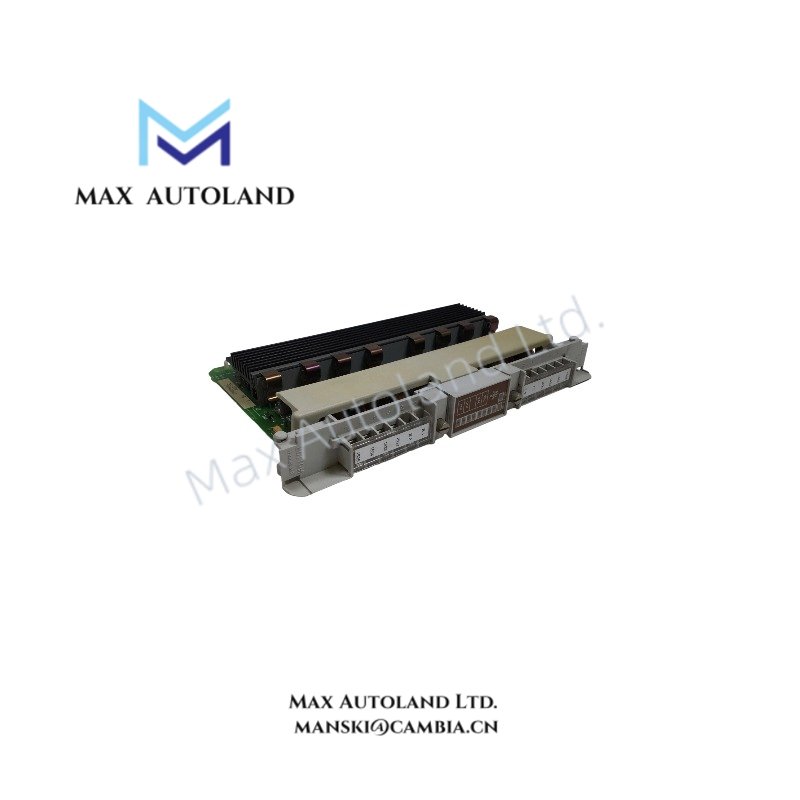

The Honeywell 621-2200R, also cataloged as the Honeywell 621-2200R AC Output Module, operates as a dedicated hardware component for converting low-power CPU logic signals into high-power AC voltage control signals within Honeywell IPC 620 and TDC 2000 / TDC 3000 Logic Manager system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-2200R |
| Brand | Honeywell (also co-branded under Klockner-Moeller) |
| Product Type | AC Output Module (Digital) |
| Origin | United States (USA) |
| Weight | 0.55 kg |
| Dimensions | 120 mm x 80 mm x 50 mm |
| Number of Points/Channels | 8-point / 16-point (configuration dependent) |
| Operating Voltage | 230 VAC nominal (handles up to 240 VAC range) |
| Signal Type | AC Output |
| System Compatibility | Honeywell IPC 620 System, TDC 2000 / TDC 3000 Logic Manager |
| Mounting Type | Rack-mounted / Slot-in PCB module |
| Status Indicators | Front-panel LED indicators |
| Operating Temp | Standard industrial operating range |
| Power Consumption | Backplane drawn current per system specification |
Channel-to-Channel Isolation
This module incorporates channel-to-channel isolation parameters designed to decouple internal logic circuitry from high-power AC field wiring. By mitigating cross-talk and transient electrical noise across 230 VAC control loops, the hardware maintains signal integrity across individual DCS processing nodes and prevents ground loop propagation through the rack backplane interfaces.
Frequently Asked Questions
Q: What do the front-panel LED indicators signify during operation?
A: The LEDs map directly to individual output channels, providing real-time status indication of active channels and facilitating field-side fault diagnostics, such as identifying blown fuses.
Q: Can this module be hot-swapped while the rack backplane is energized?
A: No. Power to the rack and field-side circuits must be completely isolated prior to inserting or removing the module to prevent electrical damage to the backplane connectors.
Field Installation Guidelines
- Power Isolation: De-energize all field-side AC voltage lines and rack power supplies before inserting the module into the slot.
- Chassis Grounding: Ensure the rack enclosure is bonded to a low-impedance industrial ground system to maintain effective isolation characteristics.
- Wiring Clearance: Maintain appropriate separation between high-voltage 230 VAC output routing and low-voltage DC or communication cables within the wire ducts to prevent induced EMI.
