Overview

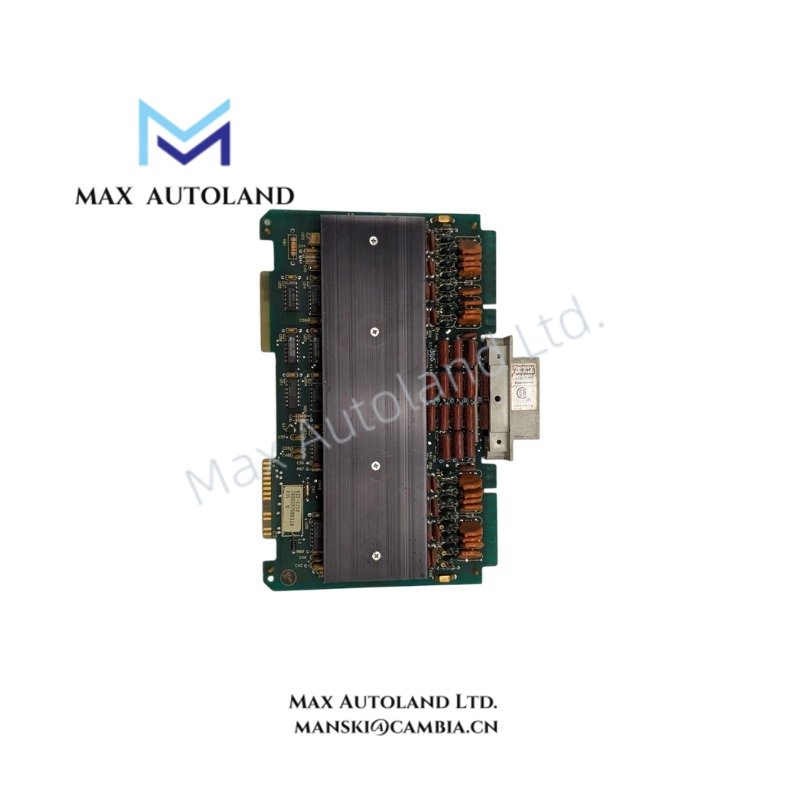

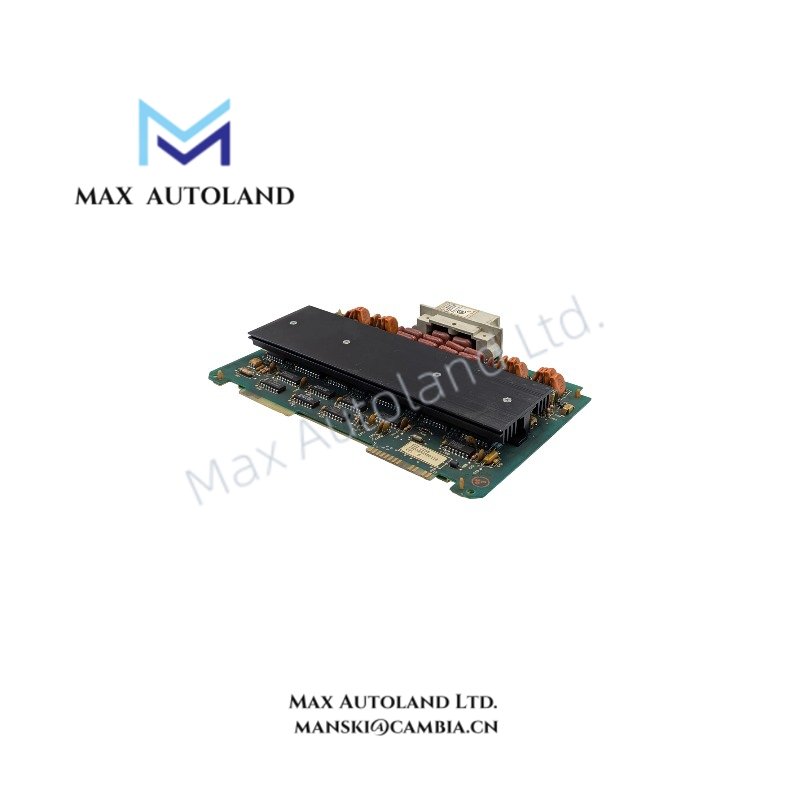

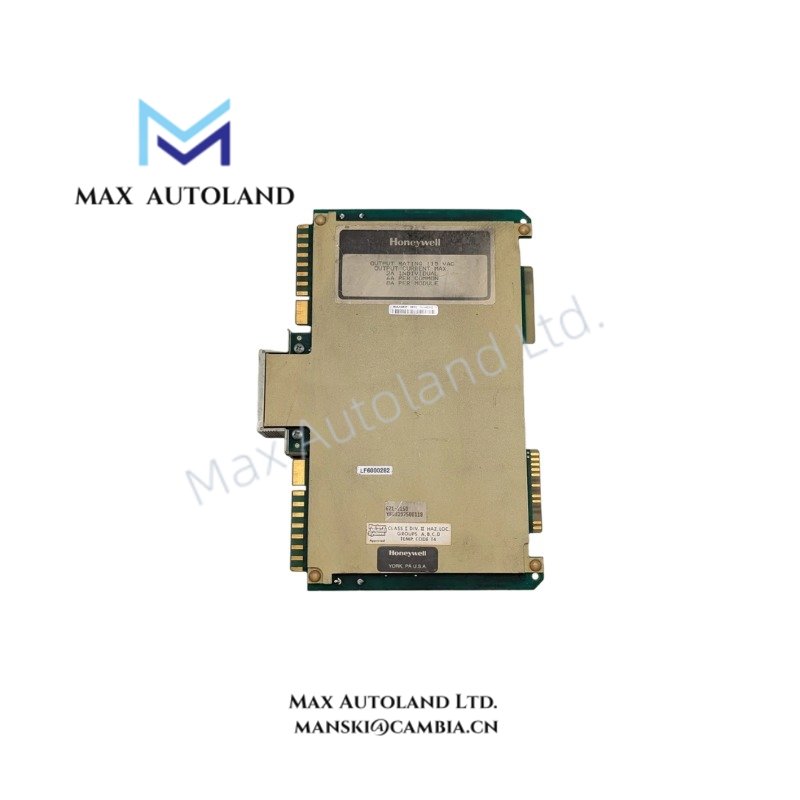

The Honeywell 621-2150, also cataloged as the 621-2150 Digital Output Module, operates as a dedicated hardware component for switching alternating current loads within Honeywell PLC control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-2150 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.7 kg |
| Dimensions | 3.2 cm x 23.9 cm x 17.8 cm |
| Operating Temp | 0 to 60 degC |
| Power Consumption | 1.5 W (Backplane) |
| Output Voltage Range | 85-132 VAC |
| Number of Points | 16 |
| Current Rating | 0.5 A per point |
Channel-to-Channel Isolation and Loop Diagnostics
This execution module incorporates dedicated optocoupler circuits to achieve robust channel-to-channel isolation across all 16 digital output points. This electrical separation prevents transient voltage spikes or ground loops originating in the 115 VAC field wiring from migrating back to the logic side of the system, preventing backplane corruption and processor disruption. Additionally, the integrated circuitry supports localized channel status monitoring, outputting real-time electrical feedback to individual LED indicators on the front panel for rapid loop fault determination during active operations.
Frequently Asked Questions
Q: Can this module handle inductive loads without external suppression?
A: No. While internal RC snubbers provide basic suppression, heavy inductive loads such as solenoid valves or motor starters require external surge suppressors installed across the load to prevent premature degradation of the switching triacs.
Q: Is hot-swapping supported for the 621-2150 module during backplane operations?
A: No. Power to both the rack backplane and the 115 VAC field side must be completely isolated before removing or inserting the module to prevent electrical arcing and logic corruption.
Field Installation Guidelines
- Field Wiring Isolation: Route the high-voltage 115 VAC field output wiring through dedicated conduit separate from low-voltage DC signals and communication buses to eliminate electromagnetic interference.
- Terminal Connections: Secure all field connections using recommended torque specs to limit contact resistance. Ensure that the total current draw of all simultaneous active points does not exceed the maximum thermal current capacity of the common terminal.
- Grounding Infrastructure: Connect the module chassis ground terminal directly to the central enclosure ground bar using a low-impedance conductor to guarantee adequate fault current clearance paths.
