Overview

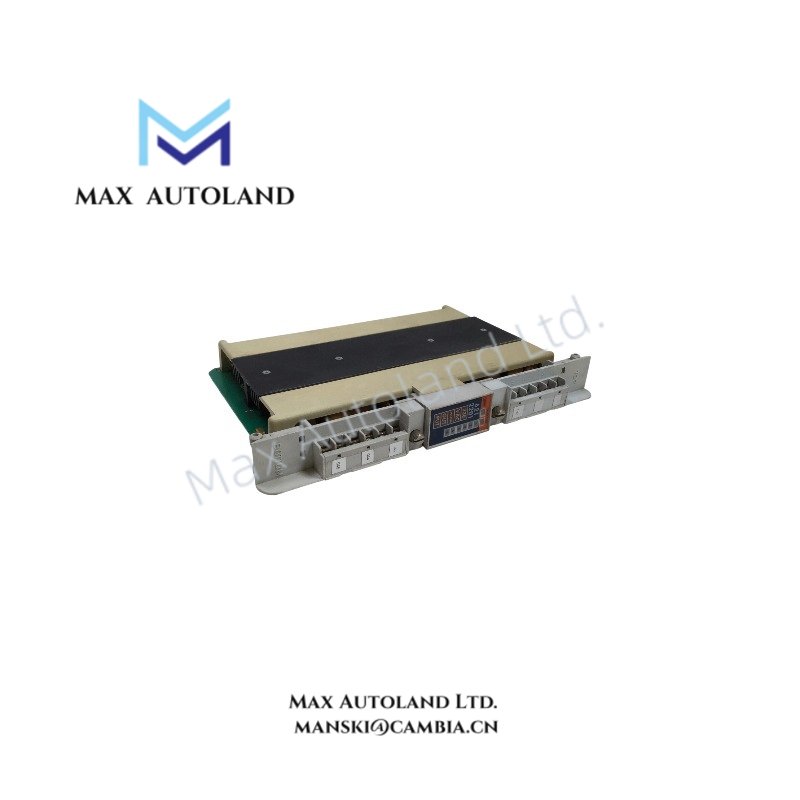

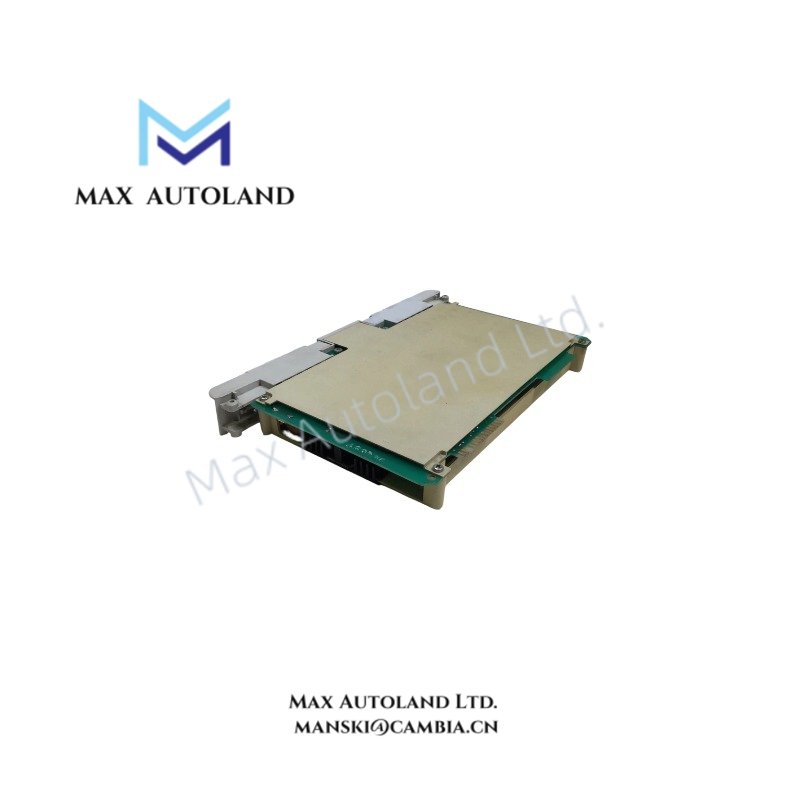

Configured for discrete AC signal processing in Honeywell ISSC 600 System control architectures, the Honeywell ISSC 600 System 115Vac 6 Point Isolated Module (ISSC 600 System AC Input/Output Module) provides direct physical/electrical execution. The module interfaces high-voltage field instrumentation directly with the processor backplane, handling alternating current signals to ensure deterministic execution of logic states without risking core processor integrity.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ISSC 600 System 115Vac 6 Point Isolated Module |
| Brand | Honeywell IPC |
| Origin | Webster, NY USA |
| Weight | 1 lbs 5.0 oz (0.6 kg) |
| Dimensions | 1.3 in x 9.0 in x 7.0 in (3.3 cm x 22.9 cm x 17.8 cm) |
| Operating Temp | 0 to 60 degC (Standard Industrial Grade) |
| Power Consumption | Backplane dependent / 115 Vac field side nominal |
| Channels | 6 isolated points |
| Voltage Rating | 115 Vac |
Channel-to-Channel Isolation Performance
This module implements comprehensive channel-to-channel isolation across all 6 points to suppress common-mode electrical noise and prevent ground loop propagation in dense process control topologies. By isolating each field loop independently, a voltage spike or catastrophic wiring fault on one channel remains localized, safeguarding adjacent channels against crosstalk and protecting the central DCS or PLC architecture from transient overvoltages.
Frequently Asked Questions
Q: Does this module support hot-swapping under active backplane power?
A: No. The backplane power must be completely de-energized before removing or inserting this module to prevent transient electrical arcs and potential firmware corruption on adjacent processing units.
Q: What is the primary benefit of the isolated circuit design for these 6 points?
A: The channel-to-channel isolation ensures that distinct phase potentials or separate 115 Vac power sources can be wired to individual points without the risk of short circuits or common-mode interference between the channels.
Field Installation Guidelines
- Wiring Separation: Route all 115 Vac field wiring away from low-voltage DC signal lines and communication cables within the enclosure to minimize electromagnetic interference.
- Terminal Torque: Secure all terminal block connections to the manufacturer-specified torque limits to prevent intermittent open-circuit faults caused by thermal cycling or mechanical vibration.
- Grounding Continuity: Verify that the chassis ground connection of the enclosure frame is bonded to the main station ground point using a low-impedance conductor prior to system energization.
