Overview

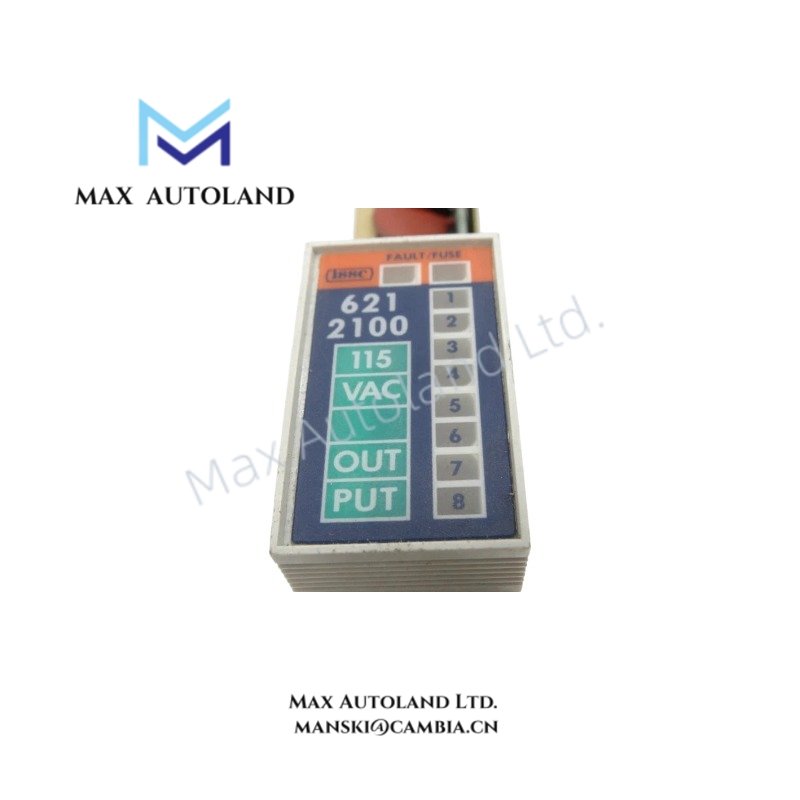

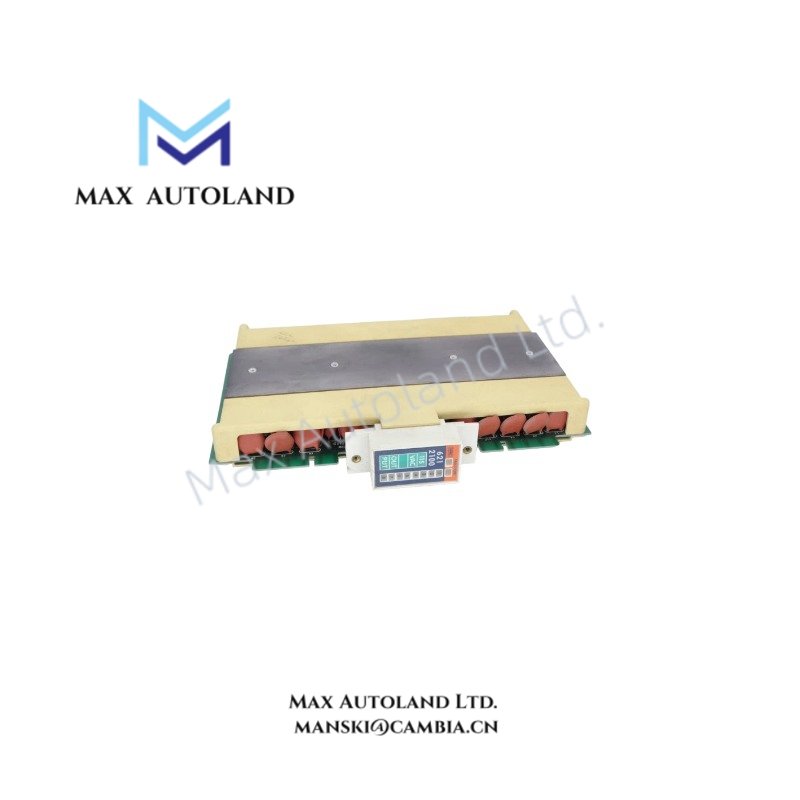

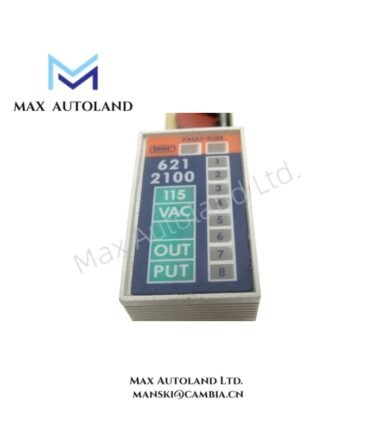

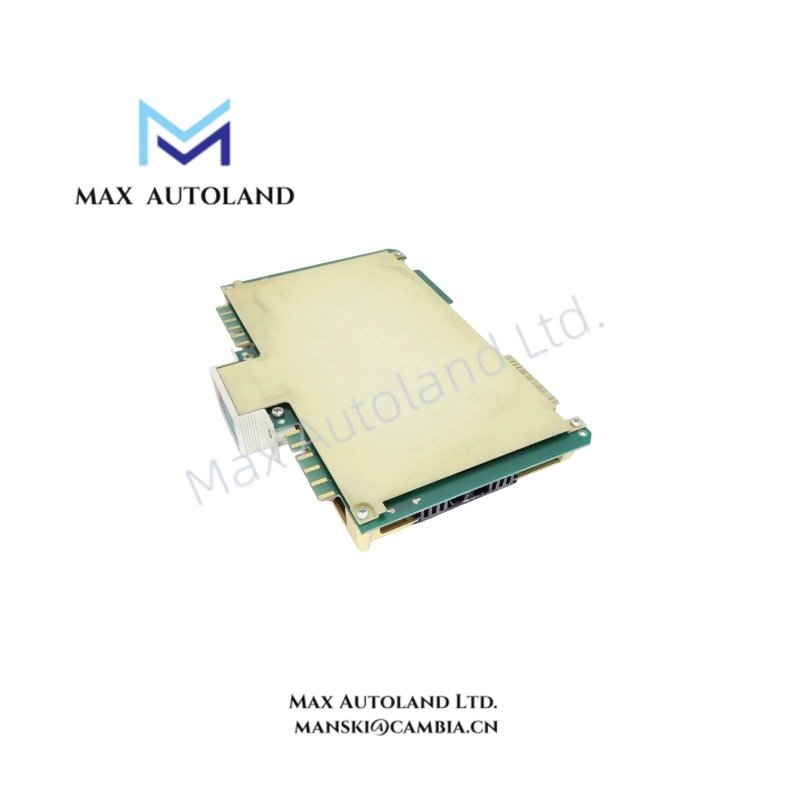

Configured for high-voltage discrete actuation in Honeywell Universal Control Network (UCN), the 621-2100 (base model 621) digital output module provides direct physical switching of 115Vac loads across eight isolated channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Brand | Honeywell |
| Origin | USA |
| Weight | 0.7 kg |
| Dimensions | 3.2 cm x 23.9 cm x 17.8 cm |
| Operating Temp | 0 degC to 60 degC |
| Power Consumption | 115 Vac, 50/60 Hz |
| Channels | 8 Point |
Channel-to-Channel Isolation and Loop Integrity
The module utilizes channel-to-channel isolation to prevent ground loop formation and crosstalk between adjacent outputs. Each output circuit supports line voltage monitoring via backplane communication, ensuring real-time status reporting of field wiring integrity. The module interfaces natively with the UCN I/O Link, utilizing deterministic polling to update output states without software mapping delays. Termination points are designed for crimp-style lugs, supporting standard industrial conductor gauges.
Frequently Asked Questions
Q: Does the 621-2100 support hot-swap insertion while the UCN rack is powered?
A: No. The module requires rack power-down prior to removal or insertion to prevent arcing on the 115Vac terminals and to ensure proper backplane initialization sequences.
Q: What is the maximum inductive load rating per channel?
A: Each channel is rated for resistive and general-purpose inductive loads. For inductive loads exceeding 100 VA, external snubber circuits are mandatory to suppress voltage transients.
Q: Is firmware flashing required when replacing a faulty unit?
A: No. The configuration is stored in the associated I/O Processor (IOP). Upon insertion, the IOP automatically downloads the operational parameters to the module.
Field Installation Guidelines
Install the module into the designated slot of the UCN I/O chassis. Torque terminal screws to 0.8 N·m (7 lb-in). Ensure that all 115Vac field wiring is separated from low-voltage signal cables by a minimum of 15 cm to maintain electromagnetic compatibility. Ground the module chassis using a dedicated earth ground connection with a conductor size of at least 12 AWG. Verify that the input power phase matches the module’s specified voltage range before applying energy.
