Overview

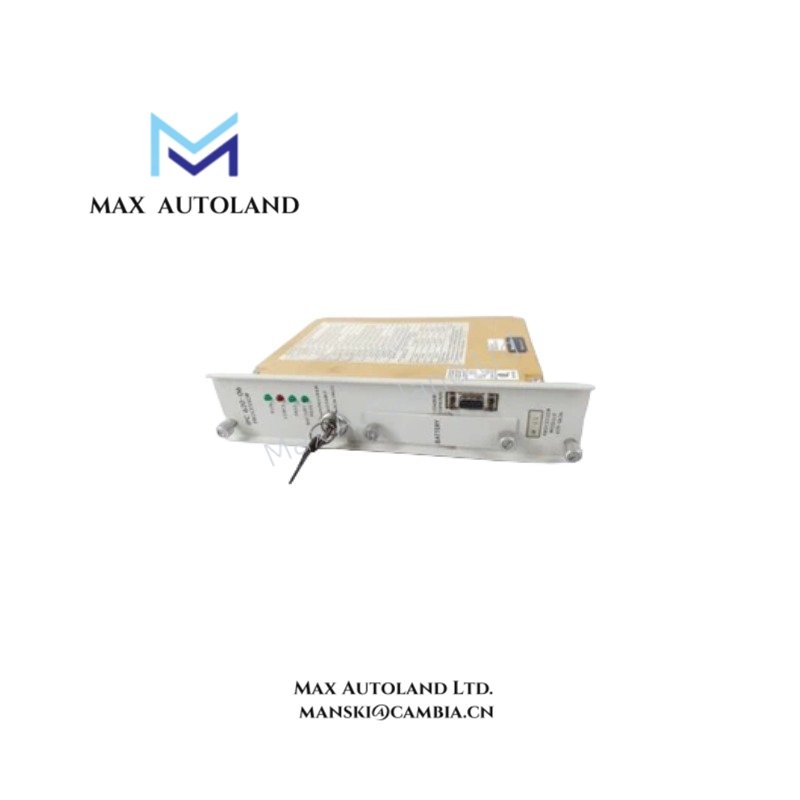

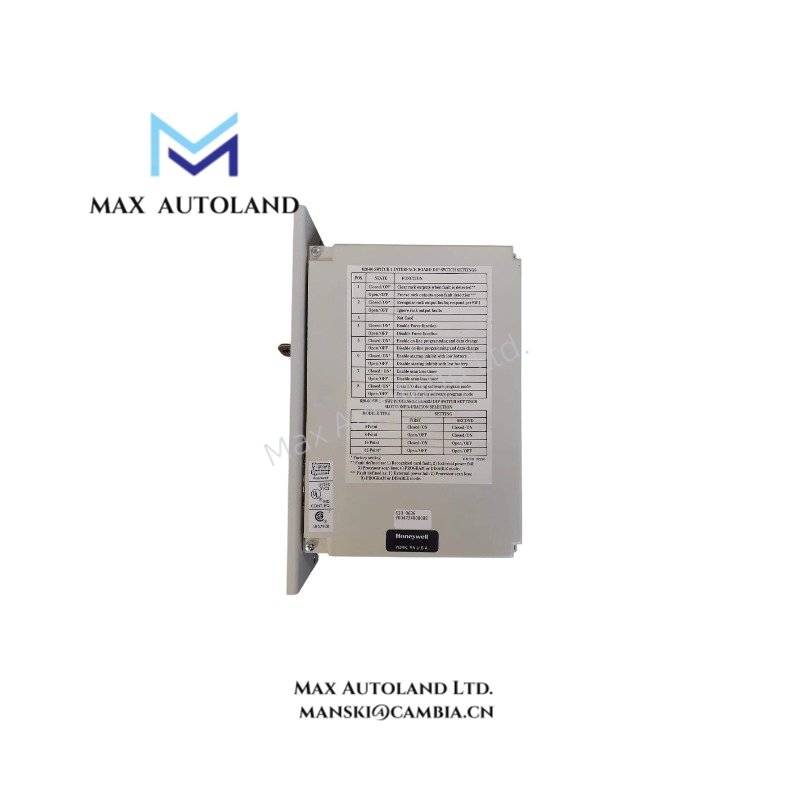

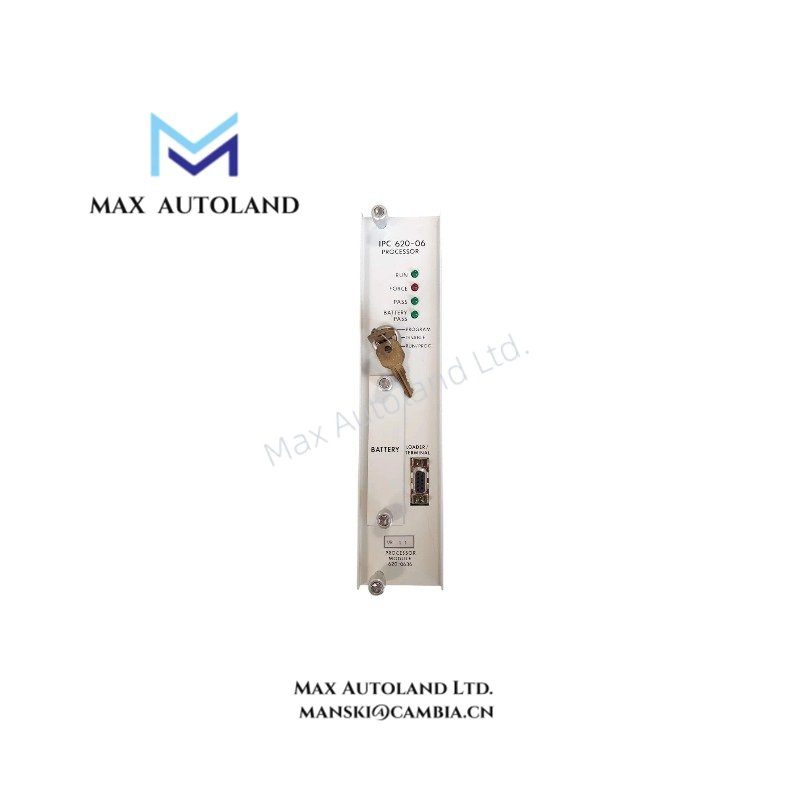

The Honeywell 620-0636, also cataloged as the 6200636 processor module, operates as a dedicated hardware component for real-time logic execution and process data handling within distributed control system networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 620-0636 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 4 lbs 3.0 oz (1.9 kg) |
| Dimensions | 7.0 in x 3.0 in x 11.0 in (17.8 x 7.6 x 27.9 cm) |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 115/230 VAC input |
FOUNDATION Fieldbus Integration and Channel Isolation
The module supports integration with FOUNDATION Fieldbus segments for deterministic process data exchange. Channel-to-channel galvanic isolation is implemented to minimize ground loop effects and reduce noise coupling between control loops. This design aligns with standard DCS analog I/O architectures where high-integrity signal separation is required for multi-loop operation.
Frequently Asked Questions
Q: Does the 620-0636 support hot-swap replacement in live racks?
A: No. Power must be removed before removal or insertion to prevent backplane communication errors and potential firmware corruption.
Q: What is the recommended power supply tolerance for stable operation?
A: Maintain input voltage within ±10% of nominal 115/230 VAC ratings to ensure consistent logic execution and avoid unexpected resets.
Field Installation Guidelines
Mount the module securely into the designated DCS rack slot, ensuring proper seating on the backplane connector. Use torque-compatible screws for chassis grounding. Route AC power wiring separately from signal cabling to reduce electromagnetic interference. Verify all shield terminations are connected to the common ground bus at one end only.
