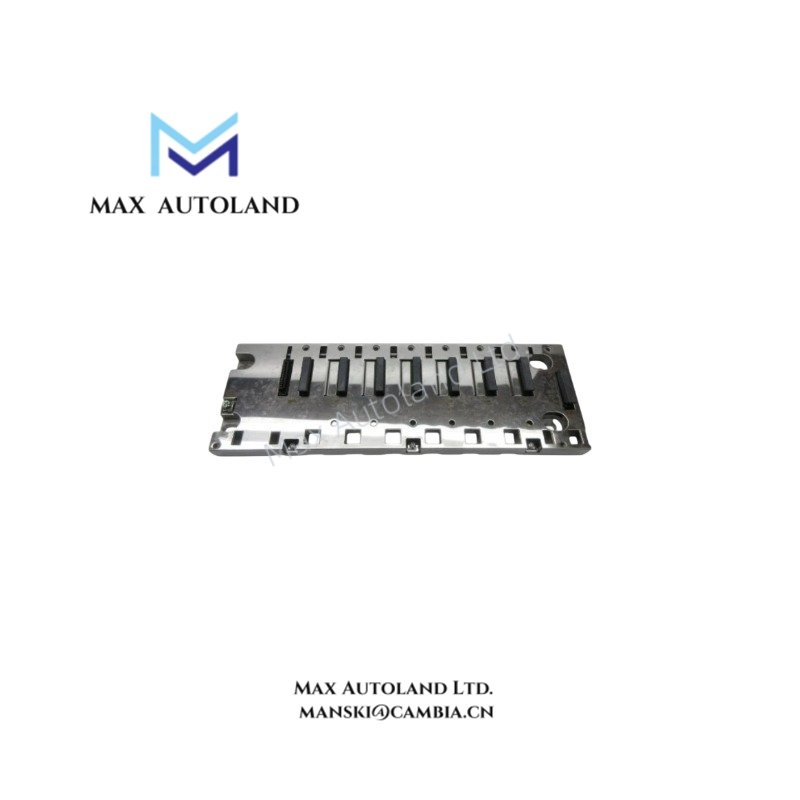

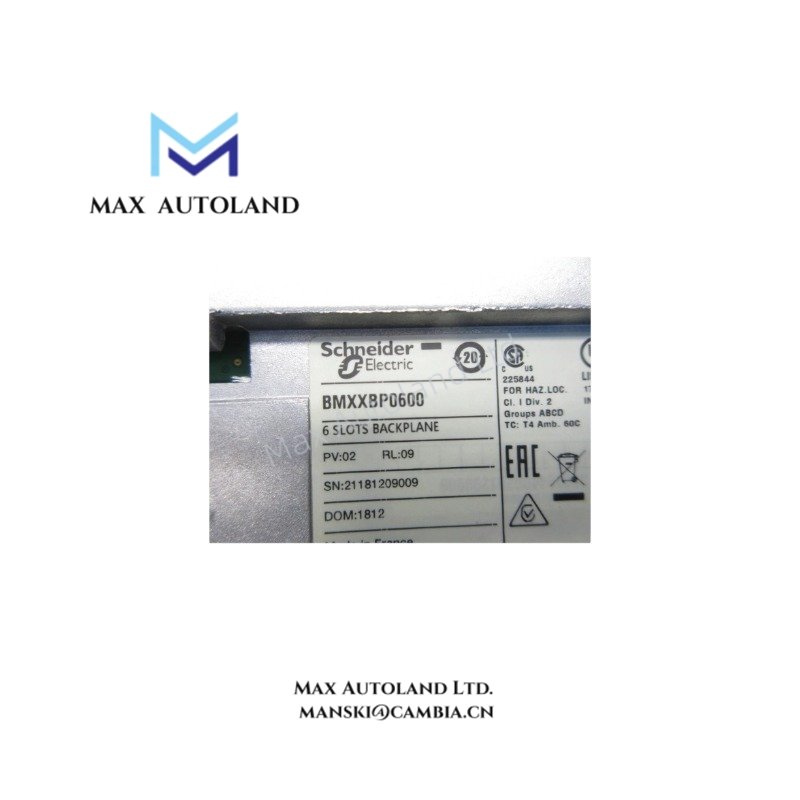

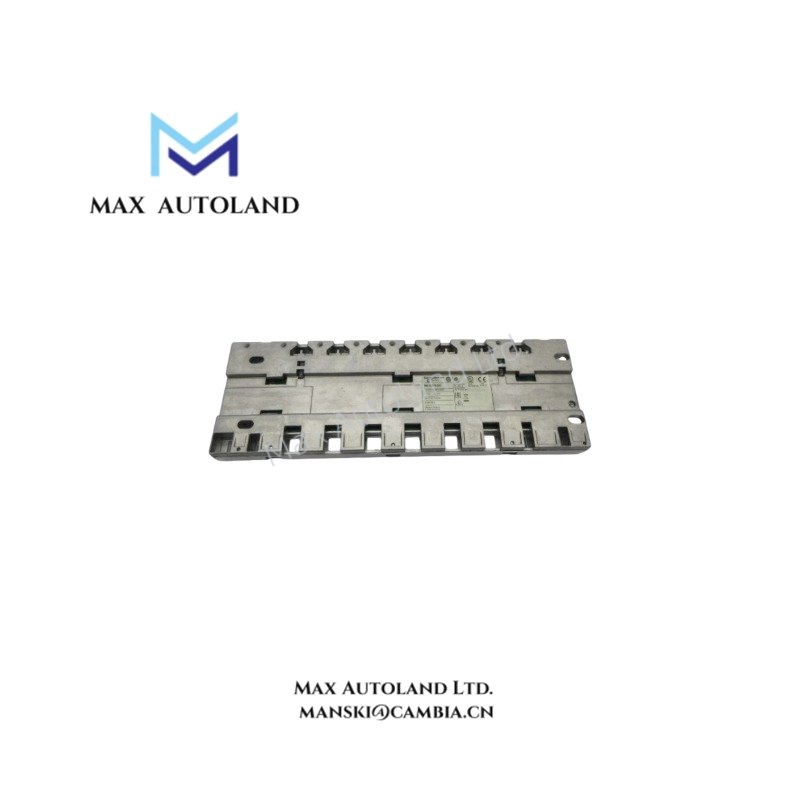

The Schneider Electric BMXXBP0600, also cataloged as the XBP0600 backplane module, operates as a dedicated hardware component for backplane bus signal distribution and mechanical support within the Modicon M340 automation platform.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXXBP0600 |
| Brand | Schneider Electric |
| Origin | France |
| Weight | 0.8 kg (1.74 lb) |
| Dimensions | 30.5 cm x 2.5 cm x 12.7 cm |
| Operating Temp | 32…140 deg F (0…60 deg C) |
| Power Consumption | 1.5 W |
| Slots | 6 bus slots |
| Electrical Connection | 1 connector (XBE) expansion module |
| Mounting | 35 mm symmetrical DIN rail, M6 screw plate, or panel mount |
| IP Rating | IP20 |
| Humidity | 10…95 % non-condensing |
Backplane Bus Communication Velocity Licences
The BMXXBP0600 supports deterministic backplane data exchange between BMXCPS power supplies, BMXP34 processors, and I/O modules through the XBE expansion interface. The bus structure maintains consistent arbitration cycles under firmware flash compatibility constraints, ensuring stable I/O density scaling without compromising signal timing across multiple racks.
Frequently Asked Questions
Q: Does the BMXXBP0600 support hot-swapping of I/O modules?
A: No. All module insertion or removal must be performed with the rack power isolated to prevent backplane bus disruption and potential electrical damage.
Q: What is the maximum allowable backplane current load for this rack?
A: Total backplane power consumption must remain within the supported capacity of the installed BMXCPS power supply; the rack itself draws 1.5 W.
Q: Can this backplane be used in redundant processor configurations?
A: Yes, provided both BMXP34 processors and associated modules are installed according to Modicon M340 redundancy architecture guidelines.
Field Installation Guidelines
Mount the BMXXBP0600 on a flat surface or 35 mm symmetrical DIN rail using the specified M6 screws or clips. Ensure proper torque application to maintain mechanical stability during vibration exposure. Maintain clear separation from high-voltage cabling to minimize electromagnetic interference. Verify all grounding points are bonded to the control cabinet earth bus before applying power.
