Overview

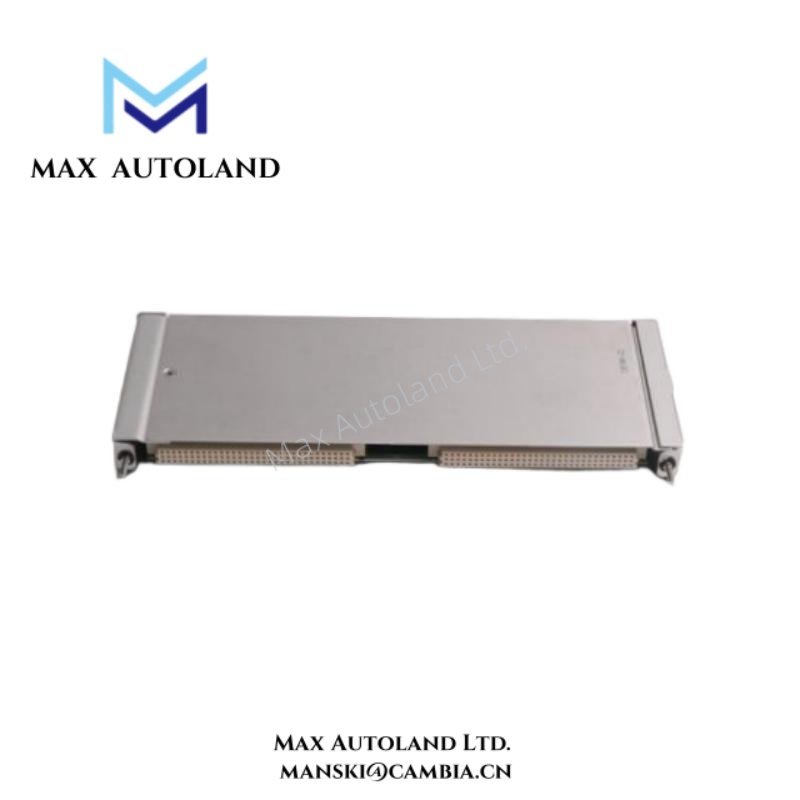

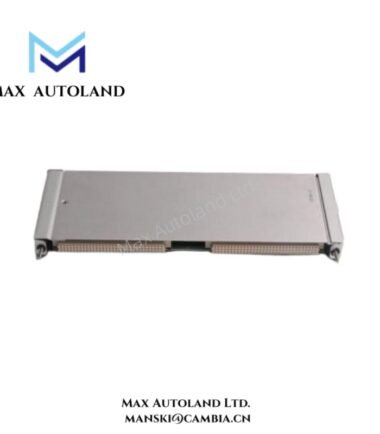

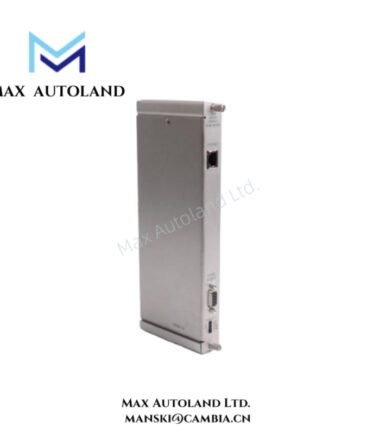

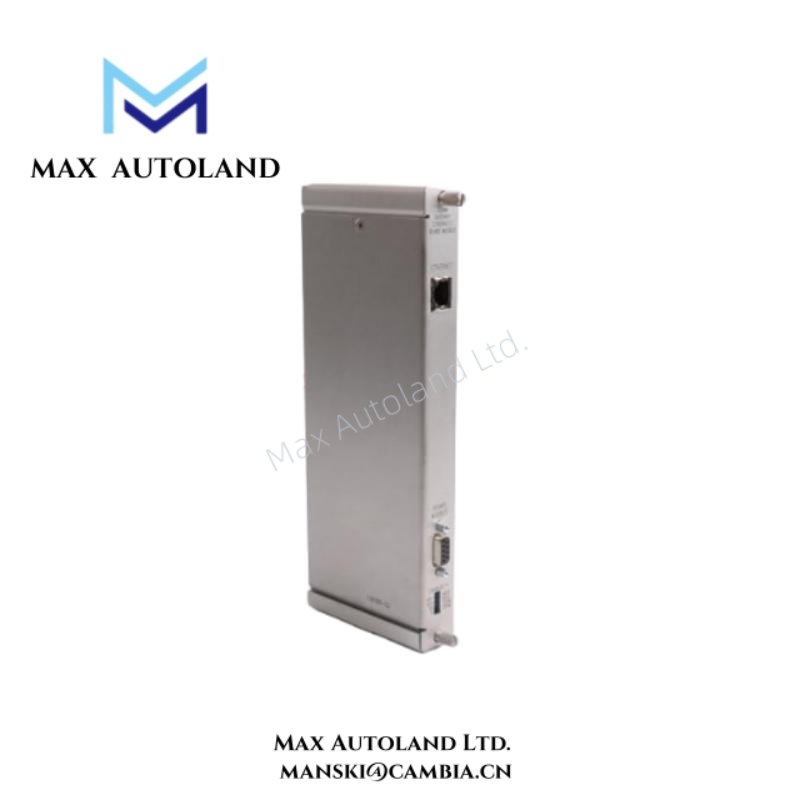

The 3500/92 136188-02 integrates with 3500 Series racks easily and offers hot-swappable capabilities, ensuring minimal downtime during maintenance. Furthermore, its rugged design withstands challenging industrial conditions, ensuring continuous, accurate data acquisition for critical machinery monitoring.
Specification
| Parameter | Specification | Notes / Additional Information |
|---|---|---|
| Module Type | Ethernet/RS485 Modbus I/O Module | Therefore, it bridges 3500 Series systems with modern networks efficiently. |
| Model Number | 3500/92 136188-02 | Specifically engineered for industrial machinery protection applications. |
| Manufacturer | Bently Nevada (GE) | Trusted global brand for reliable monitoring solutions. |
| Communication Protocols | Ethernet TCP/IP, RS485 Modbus RTU | Moreover, it supports flexible integration with legacy and modern systems. |
| Input Signals | Analog and Digital | Converts critical 3500 Series signals into Modbus-compatible outputs. |
| Output Signals | Modbus RTU / TCP Data | Facilitates real-time monitoring, control, and logging across systems. |
| Power Supply | 24 VDC nominal, 20–30 VDC range | Ensures stable operation under fluctuating industrial conditions. |
| Power Consumption | 6 W typical | Provides minimal load on existing power infrastructure. |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) | Therefore suitable for standard industrial environments. |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | Protects module during shipping or idle periods. |
| Humidity | 0–95% non-condensing | Ensures reliable operation even in humid conditions. |
| Dimensions (H×W×D) | 152 mm × 19 mm × 205 mm (6 in × 0.75 in × 8 in) | Fits standard 3500 Series rack slots. |
| Weight | 0.9 kg (2.0 lbs) | Lightweight design simplifies installation. |

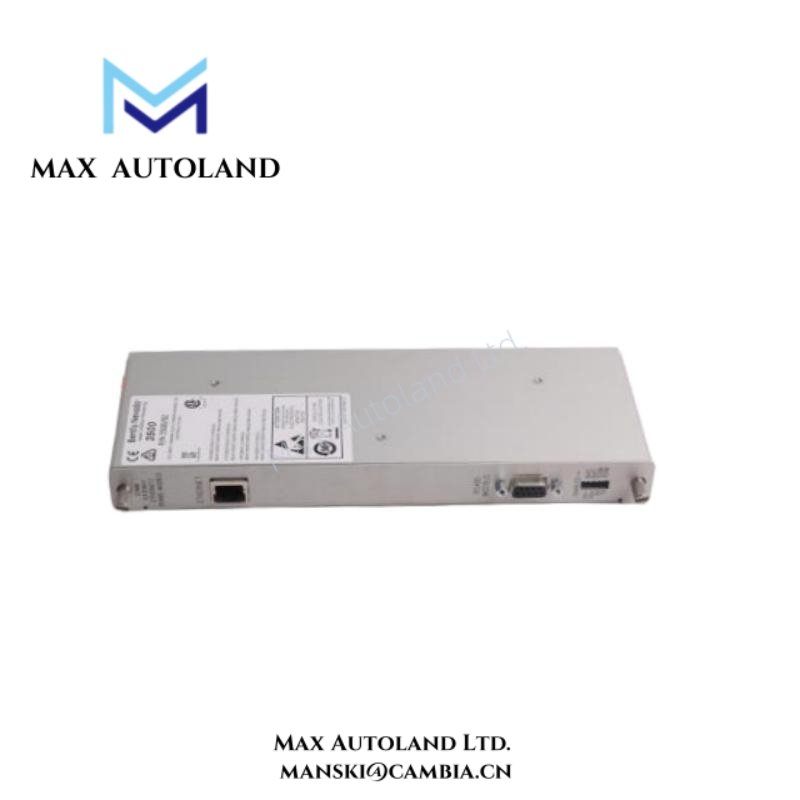

| Interface | RJ45 Ethernet, 9-pin RS485, status LEDs | In addition, LEDs provide diagnostics and communication feedback. |
| Mounting | 3500 Series rack | Compatible with all standard 3500 racks and frames. |
| Isolation | Galvanic isolation between network interfaces and module electronics | Prevents ground loops and signal interference effectively. |
| Compliance | CE, UL listed | Ensures safety, regulatory compliance, and industrial reliability. |
| Serviceability | Hot-swappable module | Minimizes downtime during maintenance or replacement. |
FAQ
A1: Yes, it is fully new, original Bently Nevada, and sourced directly from authorized suppliers.Q2: How quickly can it be shipped?
A2: Our stock is ready for shipment, and delivery typically occurs within 3 days to 2 weeks depending on order size.
Q3: Which logistics providers do you use?
A3: We commonly ship via DHL, FedEx, or UPS to ensure timely delivery.
Q4: What if the product has quality issues?
A4: We support returns within 30 days if there are any quality concerns.
Q5: Can it integrate with existing 3500 Series racks?
A5: Absolutely. The module fits standard 3500 Series racks and supports hot-swappable installation.
