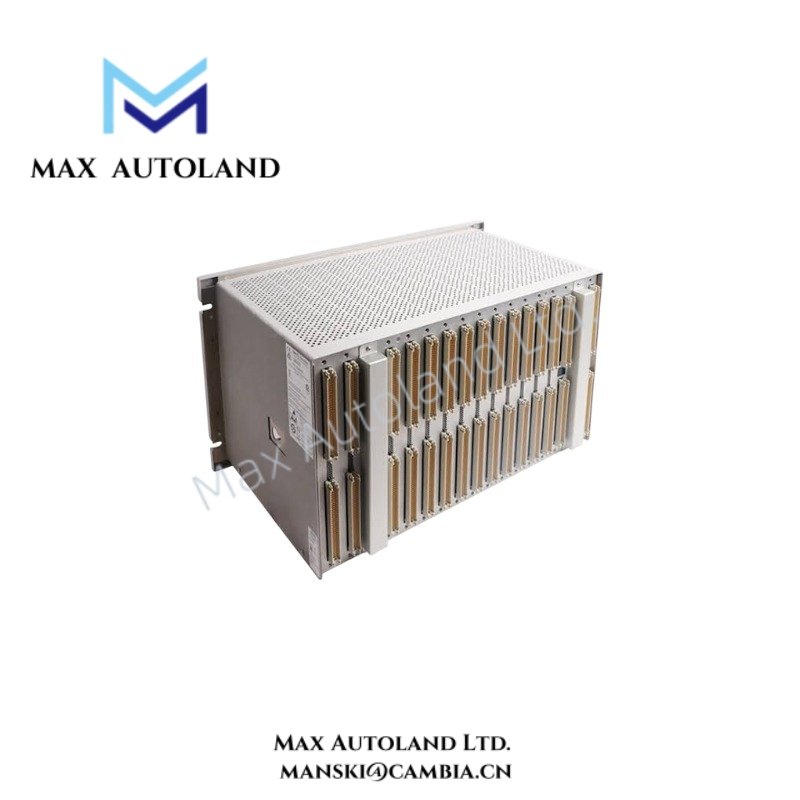

3500/05-02-04-00-00-01 Bently Nevada System Rack

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics and Monitoring Signal Architecture

The Bently Nevada 3500/05-02-04-00-00-01 does not directly perform eddy-current probe scaling or generate gap voltage signals. Instead, its backplane provides the physical and electrical infrastructure for installed 3500 modules that process machinery monitoring signals.

Accordingly, compatible monitor modules can support measurement functions associated with rotor dynamics, including vibration and position monitoring. During probe system commissioning, technicians may validate transducer installation through applicable gap voltage measurements, including nominal -10 VDC targets where specified by the associated probe and Proximitor system documentation.

The rack layout also separates module positions and provides controlled internal interconnection through the 3500 backplane. Therefore, signal routing and module installation must follow the applicable 3500 system configuration to avoid incorrect module placement, wiring conflicts, or unnecessary electrical interference.

Frequently Asked Questions

Q: Can the Bently Nevada 3500/05-02-04-00-00-01 operate as a standalone machinery monitor?
A: No. The rack provides the mechanical structure and internal backplane for the 3500 system. Monitoring functions depend on the compatible power supply, interface, monitor, relay, and communication modules installed in the rack.

Q: Does the rack itself have a fixed power consumption value?
A: No independent rack power consumption value is specified in the provided data. System power loading depends on the installed 3500 modules and the selected power supply configuration.

Q: Can modules be installed in any of the 7 slots without considering their function?
A: No. Module installation must follow the applicable 3500 rack configuration and slot assignment requirements. Power supply and system interface functions require designated positions, while remaining positions support compatible monitoring, relay, or communication functions.

Field Installation Guidelines

Install the Bently Nevada 3500/05-02-04-00-00-01 in the specified panel cutout and secure the Mini-Rack using the applicable panel mounting hardware. Maintain sufficient access around the rack for module insertion, wiring, inspection, and maintenance.

Before installing or removing system modules, isolate system power according to the site electrical safety procedure. Do not force modules into rack positions, and verify the module orientation before engagement with the backplane connector.

Route sensor and low-level monitoring cables separately from high-current switching and power wiring where practical. In addition, terminate cable shields according to the applicable Bently Nevada system grounding scheme to reduce induced noise and unwanted coupling.

Finally, verify rack grounding, module seating, power supply installation, and interface module placement before system energization. Perform transducer loop checks and applicable gap voltage validation only according to the specifications of the installed monitoring modules and associated transducer system.
