Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

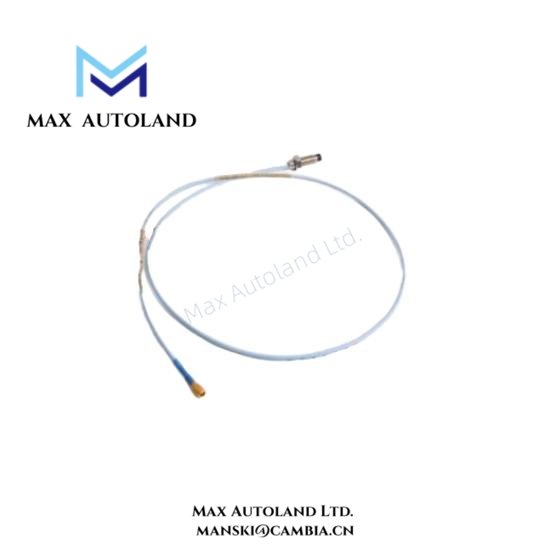

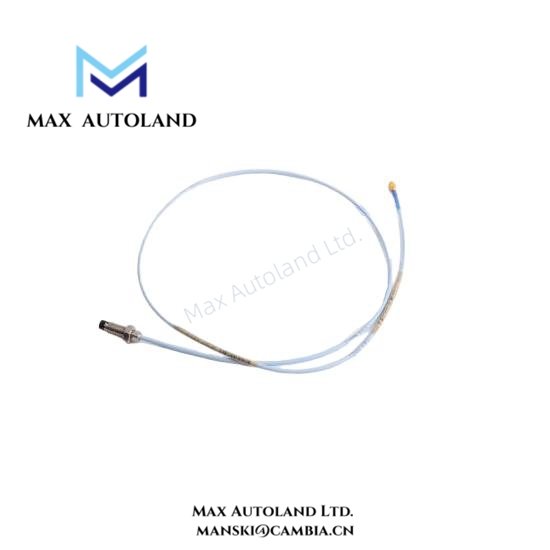

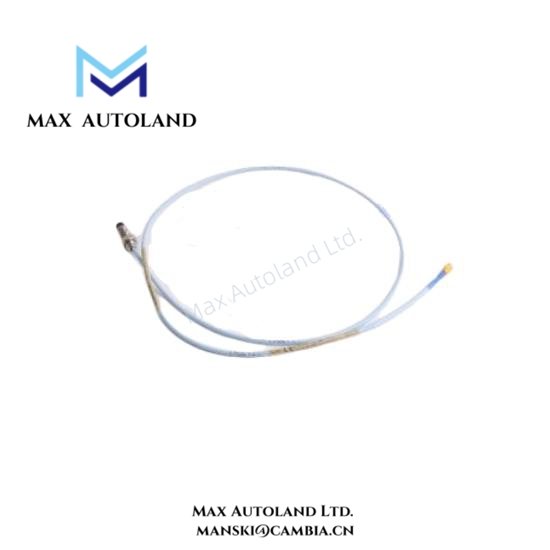

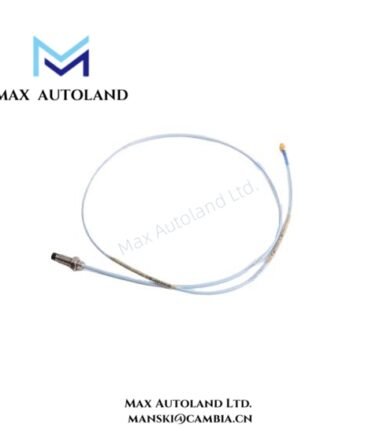

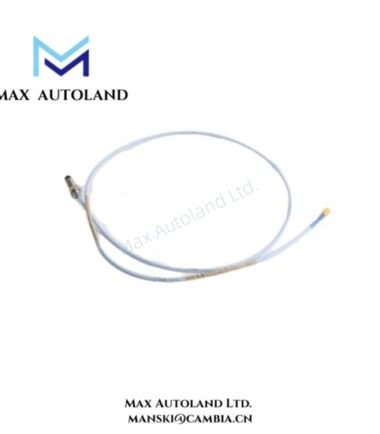

| Model Number | 330101-00-40-10-02-00 | Standard Bently Nevada 3300 XL probe |
| Probe Type | Proximity transducer | Measures shaft vibration and displacement |
| Sensing Gap | 8 mm nominal | Optimized for precise shaft position measurement |
| Target Material | Conductive metal | Ensures consistent signal output |
| Operating Temperature Range | -40°C to 125°C (-40°F to 257°F) | Suitable for harsh environments |
| Electrical Connector | 2-pin industrial connector | Standard interface for 3300 XL systems |
| Cable Length | Customizable | Adjustable to installation requirements |
| Vibration Resistance | 50 g peak | Handles operational vibration reliably |
| Shock Resistance | 50 g peak | Maintains stability during mechanical shocks |
| Monitoring Compatibility | Bently Nevada 3300 XL system | Integrates with continuous condition monitoring |
| Output Signal | AC differential voltage | Provides real-time shaft position feedback |
| Mounting Style | Threaded or clamp | Flexible installation options |
| Housing Material | Stainless steel | Corrosion-resistant and robust |
| Service Life | >10 years typical | Reliable operation under industrial conditions |
FAQ
A1: Yes, it fully integrates with standard Bently Nevada 3300 XL monitoring systems.
Q2: Can it operate in high-temperature environments?
A2: Yes, it performs reliably up to 125°C (257°F) without affecting measurement accuracy.
Q3: What is the nominal sensing gap of this probe?
A3: The probe has an 8 mm nominal gap optimized for precise shaft position measurement.
Q4: How durable is it under vibration and shock?
A4: Rated for 50 g vibration and 50 g shock, it maintains stable and accurate operation.
Q5: Can the cable length be customized for specific installations?
A5: Yes, cable length can be specified to meet installation requirements.
