Overview
Specification
| Parameter | Details |
|---|---|
| Model Number | 330180-90-00 |

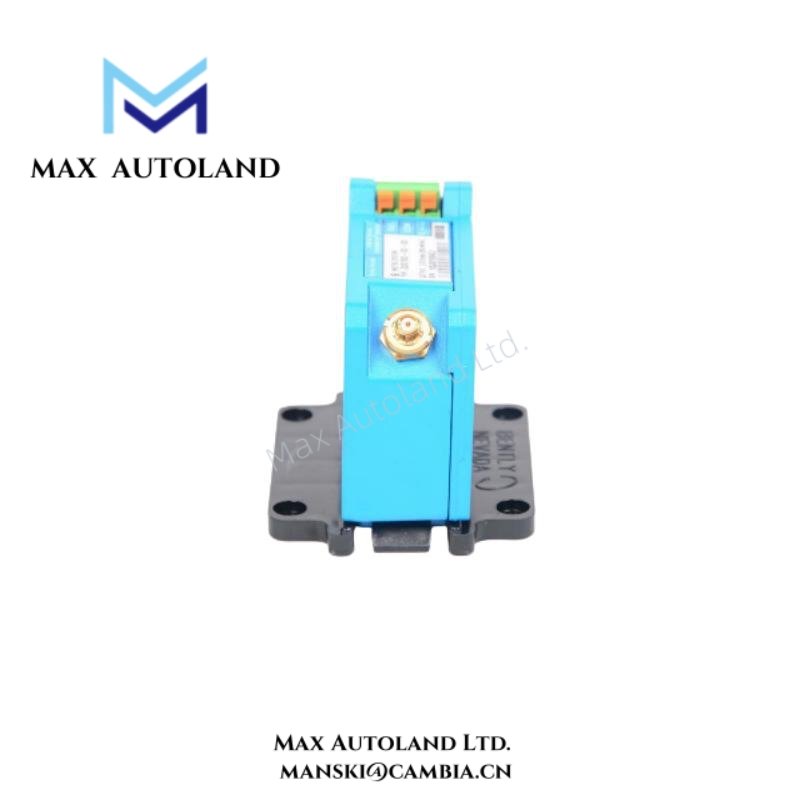

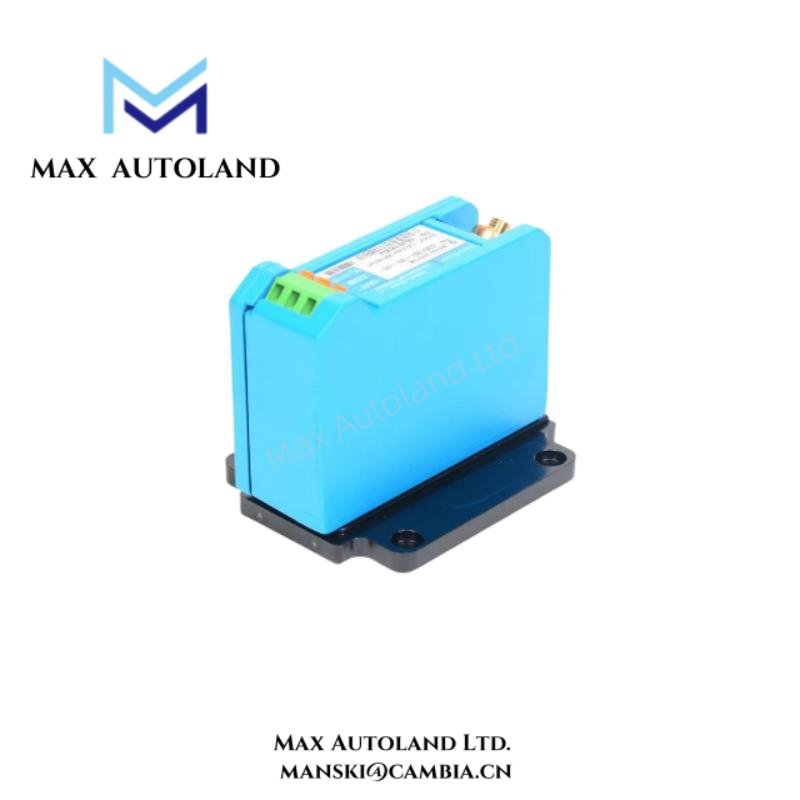

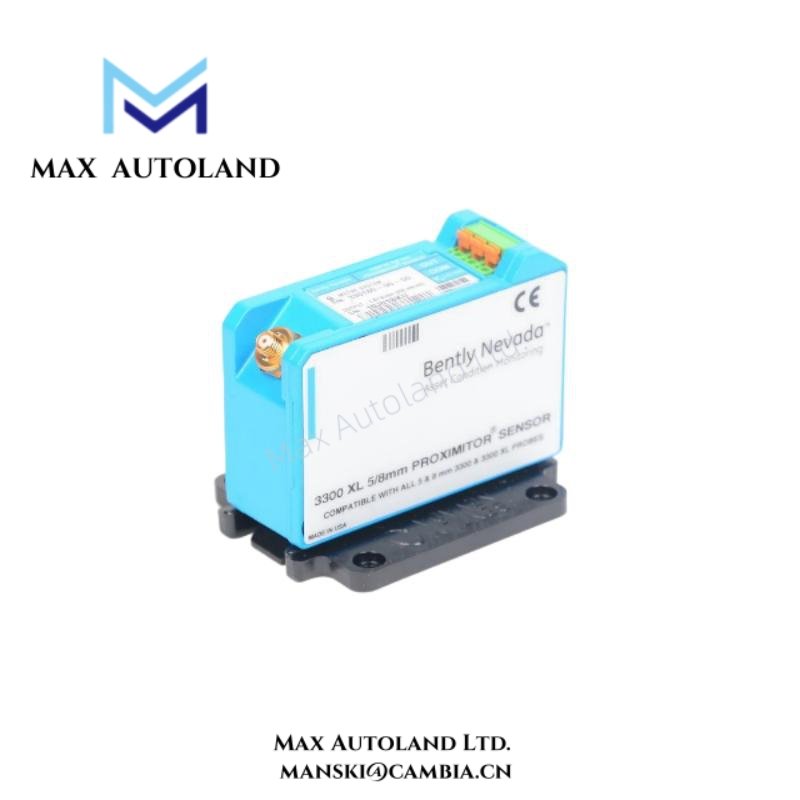

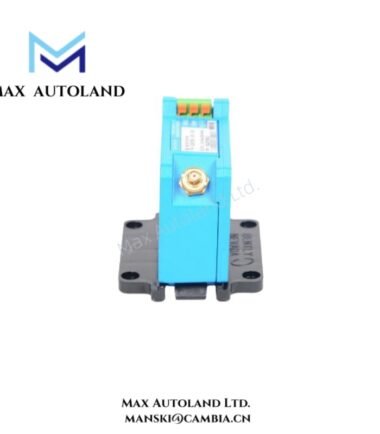

| Type | 3300 XL 8 mm Proximity Transducer (Proximitor Sensor) |
| Probe Diameter | 8 mm |
| Measurement Range | 0–8 mm typical |
| Output Signal | Proximitor voltage signal compatible with 3300 XL modules |
| Frequency Response | DC to 10 kHz typical |
| Excitation Voltage | Supplied by 3300 XL Proximitor System |
| Operating Temperature | -40°C to 120°C (-40°F to 248°F) |
| Storage Temperature | -55°C to 125°C (-67°F to 257°F) |
| Shock Resistance | 50 g peak, 11 ms half-sine |
| Vibration Resistance | 20 g, 5–2000 Hz |
| Mounting | Threaded or smooth probe installation |
| Cable Type | Shielded, high-temperature industrial cable |
| Agency Approvals | CE and other applicable certifications |
| Typical Applications | Small turbines, compressors, pumps, and other high-speed rotating equipment |
FAQ
A1: The 330180-90-00 works with compact turbines, compressors, pumps, and other small- to medium-sized rotating equipment. Moreover, it integrates seamlessly into 3300 XL systems.
Q2: Can this sensor operate in extreme temperatures?
A2: Yes, it functions reliably between -40°C and 120°C. In addition, it maintains measurement accuracy under harsh industrial conditions.
Q3: How is the sensor installed in a monitoring system?
A3: It mounts directly into 3300 XL racks. Therefore, engineers can quickly connect it to the Proximitor system for real-time monitoring.
Q4: What type of signal output does the sensor provide?
A4: The sensor delivers a Proximitor voltage signal compatible with 3300 XL modules. Moreover, this output supports precise displacement and vibration measurement.
Q5: How often should the sensor be maintained?
A5: Minimal maintenance is required. For instance, periodic inspection of cable connections and probe integrity ensures consistent performance.
Q6: Are industrial certifications or approvals available?
A6: Yes, the sensor carries CE and other applicable industrial approvals. In addition, these certifications guarantee compliance with global standards.
