Overview
Specification
| Specification | Details |
|---|---|
| Model Number | 330106-05-30-10-02-00 |

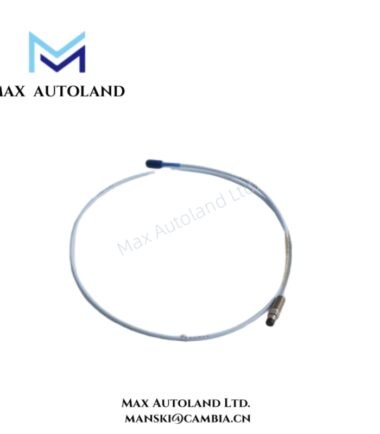

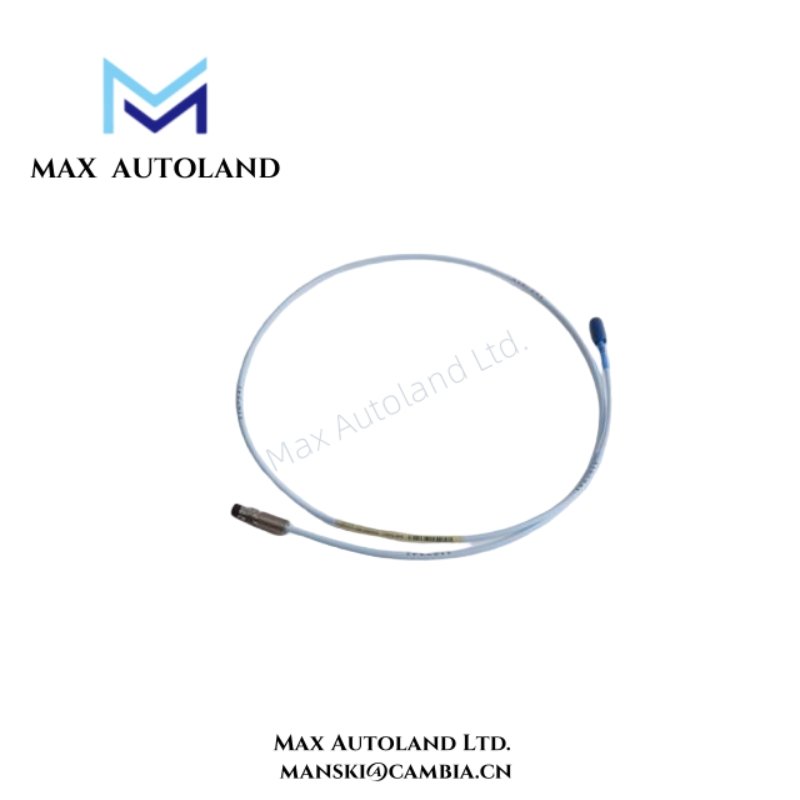

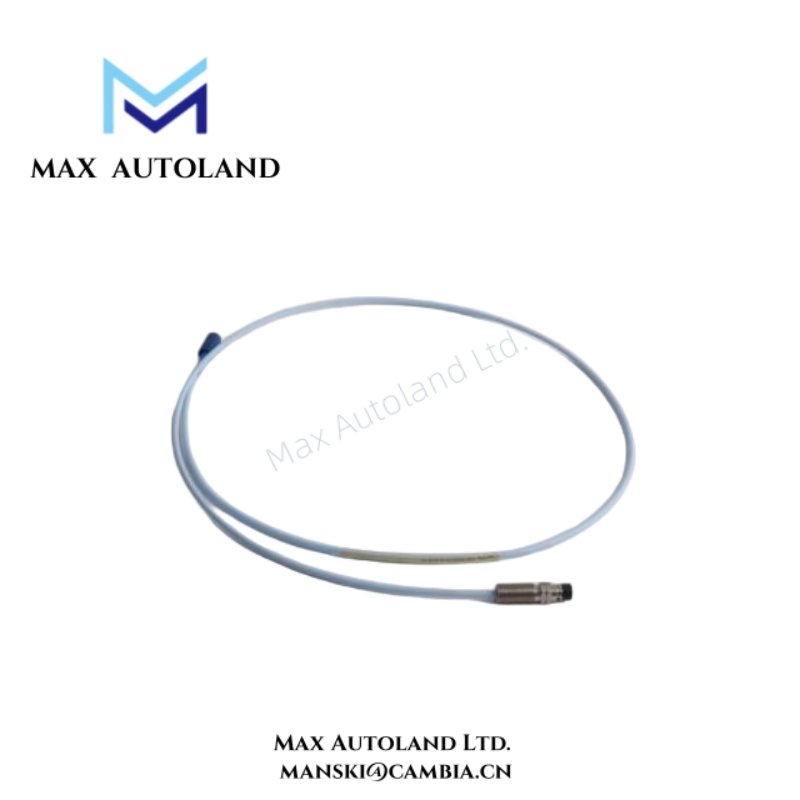

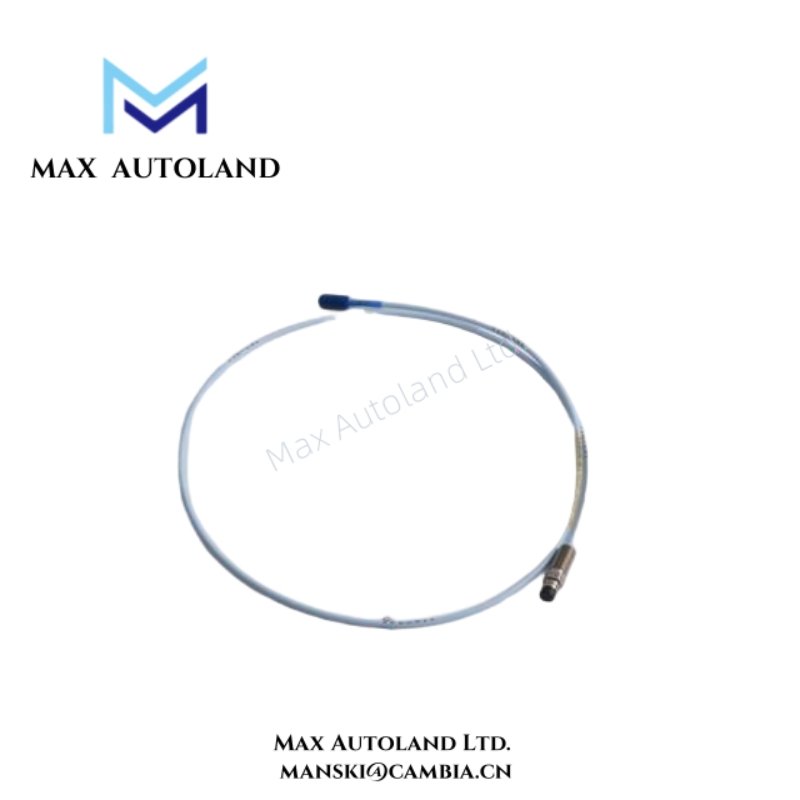

| Probe Type | Reverse Mount Proximity Transducer |
| Measurement Range | 8 mm |
| Mounting Thread | M10 x 1 |
| Standard Cable Length | 2 m |
| Optional Cable Length | Custom lengths available; total length option: 1.0 m (3.3 ft) |
| Conductor Material | High-quality copper |
| Insulation Material | High-temperature resistant polymer |
| Operating Temperature | -40°C to 120°C |
| Moisture Resistance | IP65-rated environments |
| Vibration Resistance | Withstands typical industrial vibration |
| Electrical Shielding | Braided shield for EMI/RFI protection |
| System Compatibility | Bently Nevada 3300 XL series |
| Weight | Approximately 0.3 kg |
| Compliance | Meets industrial standards for safety and signal integrity |
| Connector and Cable-Type Option | Miniature ClickLoc coaxial connector |
FAQ
A1: The standard cable length is 2 meters, and custom lengths are available upon request.
Q2: Is this probe compatible with all Bently Nevada 3300 XL systems?
A2: Yes, it is fully compatible with the 3300 XL series, including reverse-mount configurations.
Q3: Can the probe operate in extreme temperatures and industrial environments?
A3: Yes, it supports -40°C to 120°C and IP65-rated moisture protection.
Q4: What is the mounting thread specification for installation?
A4: The probe uses an M10 x 1 threaded mount for secure attachment.
Q5: Does the probe provide reliable EMI/RFI protection?
A5: Yes, the braided shielding ensures electrical signal integrity in noisy environments.
Q6: Can this probe support predictive maintenance strategies?
A6: Yes, it provides precise vibration and displacement measurements critical for predictive maintenance.
