Overview
In addition, the 3300 XL Proximitor Sensor maintains consistent performance across wide temperature ranges and electrical noise conditions. Engineers value its factory calibration, which simplifies installation and reduces commissioning time. Consequently, the sensor supports precise machine condition assessment throughout the asset lifecycle.
Specification
| Parameter | Specification |
|---|---|

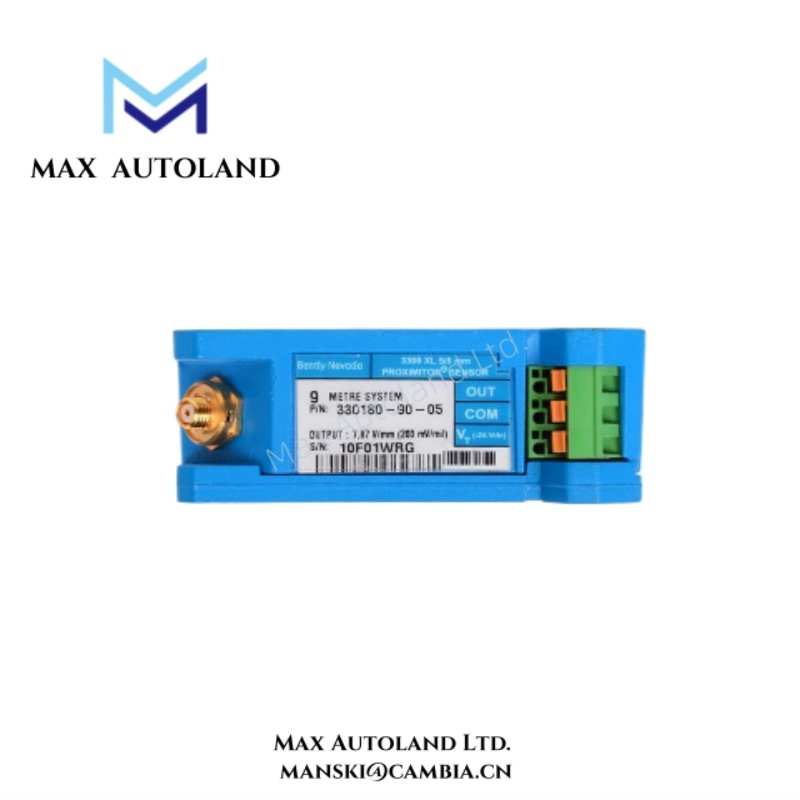

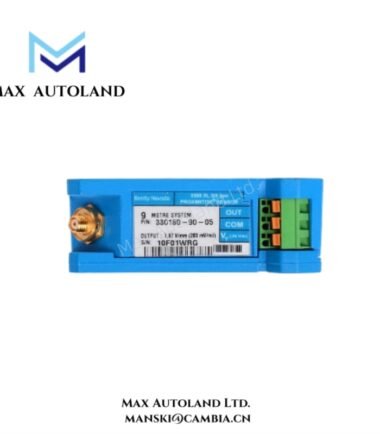

| Part Number | 330180-90-05 |
| Product Type | Proximitor Sensor |
| Series | Bently Nevada 3300 XL |
| Probe Compatibility | 3300 XL 8 mm proximity probes |
| Measurement Principle | Eddy current, non-contact |
| Output Signal | −24 VDC to 0 VDC proportional output |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Supply Voltage | −17.5 VDC to −26 VDC |
| Frequency Response | 0 to 10 kHz typical |
| Operating Temperature | −35 °C to +85 °C |
| Storage Temperature | −51 °C to +100 °C |
| Housing Material | Nickel-plated aluminum |
| Mounting | DIN rail or panel mounting |
| Connector Type | Coaxial system connectors |
| System Length Option | 9.0 m system length |
| Environmental Rating | Industrial, oil and moisture resistant |
| Compliance | API 670 compatible systems |
FAQ
It converts proximity probe signals into usable voltage outputs for monitoring systems.
Q2: Is this sensor compatible with all 8 mm probes?
It is designed specifically for Bently Nevada 3300 XL 8 mm probes.
Q3: Can it operate in high-temperature environments?
Yes, it operates reliably up to +85 °C.
Q4: Does the sensor require field calibration?
No, factory calibration eliminates the need for field adjustment.
Q5: Which industries commonly use this Proximitor Sensor?
It is widely used in power generation, oil and gas, and heavy industrial plants.
