Overview

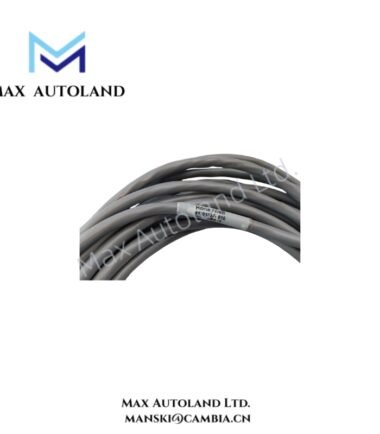

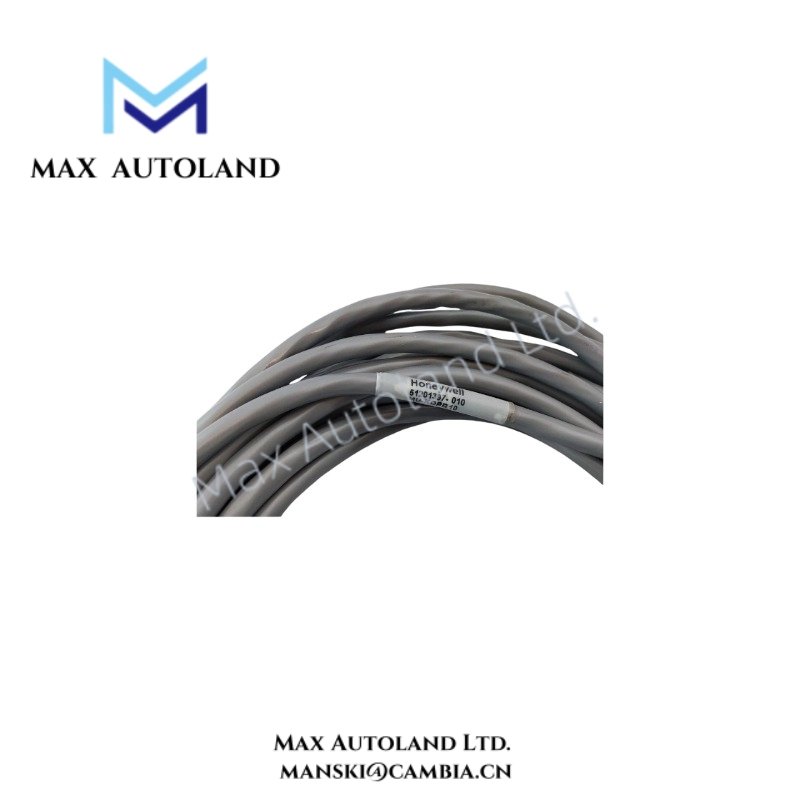

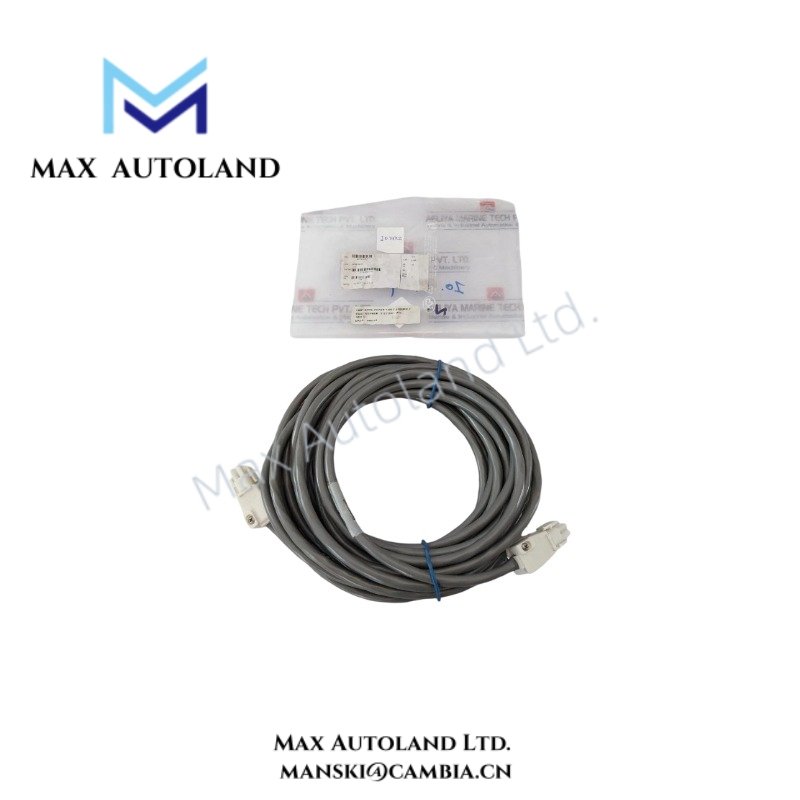

Configured for power distribution within Honeywell DCS hardware, the Honeywell MU-KDPR10 51201397-010 (MU-KDPR10 Power Cable Assembly) provides a 10 m physical connection between power distribution points and system components.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | MU-KDPR10 |
| Part Number | 51201397-010 |
| Brand | Honeywell |
| Product Type | Power Cable Assembly / Power Distribution Cable |
| Cable Function | System power connection and distribution |
| Cable Length | 10 m |
| Application | Honeywell Industrial Automation and DCS hardware |
| System Association | Experion PKS and compatible Honeywell control-system hardware |
| Revision Level | Rev. D, subject to manufacturing batch |
| Dimensions | Cable length: 10 m; other dimensions not specified |
| Power Consumption | Passive cable assembly; no independent consumption specified |
Honeywell DCS Power Distribution Characteristics
The MU-KDPR10 functions as a physical power-distribution connection rather than an active electronic I/O module. Therefore, it does not perform signal conditioning, protocol conversion, or control logic.
The 10 m cable length defines the physical routing distance between connected power-distribution points. Consequently, installation should account for cable routing, connector accessibility, bend radius, and separation from high-energy conductors.
The supplied information identifies the assembly as a DS PV/R Cable and power distribution cable. However, it does not provide a verified connector pinout, conductor gauge, voltage rating, current rating, or shielding specification. These parameters should therefore be confirmed against the applicable Honeywell system documentation before installation.
Frequently Asked Questions
Q: Is the MU-KDPR10 an active DCS I/O module?
A: No. The MU-KDPR10 is a passive power cable assembly intended to provide physical power distribution between compatible system hardware.
Q: What is the specified cable length?
A: The supplied specification identifies a nominal cable length of 10 m, approximately 32.8 ft.
Q: Can the connector pinout be determined from the supplied data?
A: No. The available information does not specify connector assignments or conductor-level wiring. Verify the applicable Honeywell documentation before termination or replacement.
Field Installation Guidelines
- Verify part number 51201397-010 and model MU-KDPR10 before installation.
- Confirm the cable destination and mating connectors against the system wiring documentation.
- De-energize the associated power circuit before connecting or disconnecting the assembly.
- Route the cable without excessive mechanical tension, sharp bends, or abrasion points.
- Maintain appropriate separation from high-voltage and high-current conductors according to site wiring practices.
- Do not infer conductor polarity, pin assignment, voltage rating, or current capacity from cable length alone.
- Inspect connectors for contamination, bent contacts, mechanical damage, or incomplete engagement.
- Secure the cable to prevent connector strain and unintended movement during equipment operation.
- Verify continuity and correct power distribution before energizing the connected hardware.
- Where shielding or grounding is specified by the system documentation, terminate it according to the Honeywell installation requirements
