Overview

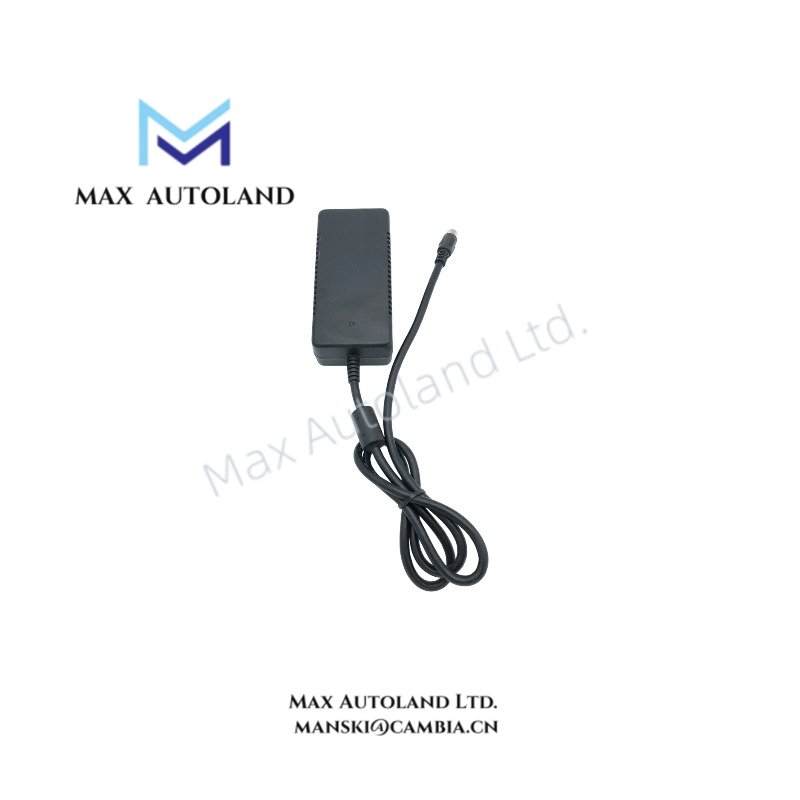

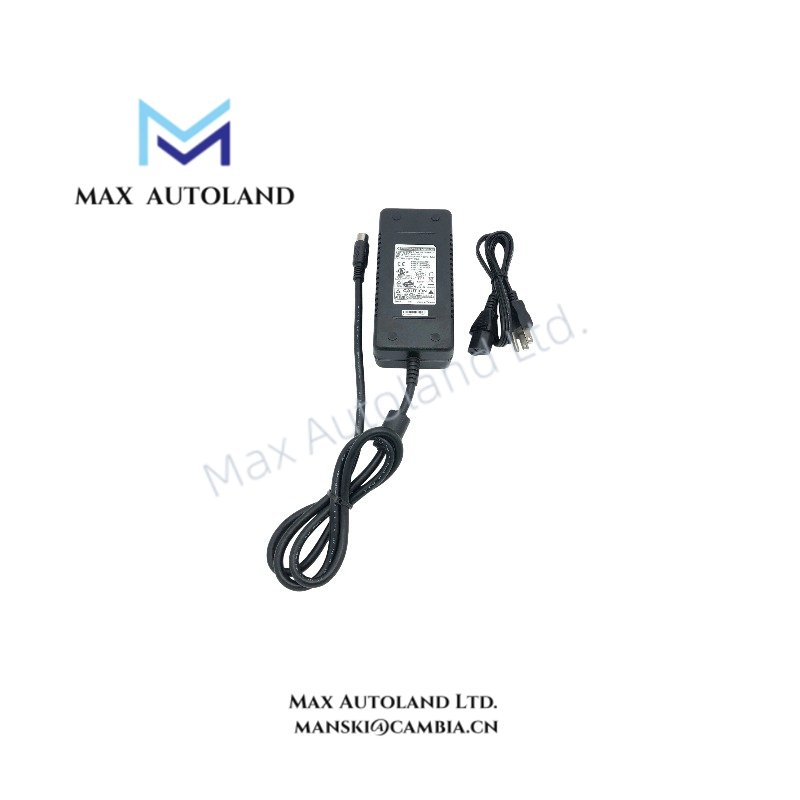

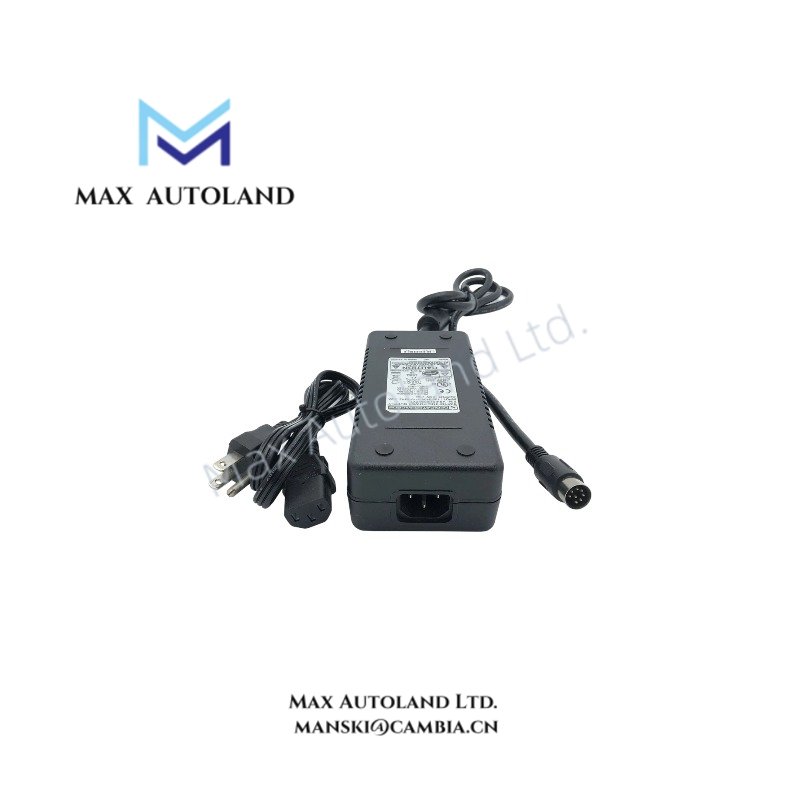

The Honeywell SPU65-302, also cataloged as the SPU65 AC/DC Switching Power Supply, operates as a dedicated hardware component for regulated DC power conversion within industrial control and instrumentation power distribution systems.
Suffix Breakdown & Model Matrix
The available source material identifies a single model designation, SPU65-302. No official suffix decoding or ordering matrix is specified by the manufacturer. Additional suffix interpretation should not be inferred without Honeywell documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SPU65-302 |
| Brand | Honeywell |
| Origin | Not specified |
| Product Type | AC/DC Switching Power Supply |
| Input Voltage | 90 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Power | 60 W to 65 W maximum |
| Output Voltage | Factory configured DC output, typically within 12 VDC to 24 VDC depending on the specific configuration |
| Efficiency | Greater than 80 % typical at full load |
| Cooling | Natural convection |
| Line Regulation | +/- 1 % maximum |
| Load Regulation | +/- 3 % to +/- 5 % |
| Protection Functions | Over-voltage, over-current, short-circuit protection with automatic recovery |
| Ripple and Noise | Low ripple DC output |
| Safety Compliance | CE, UL/cUL, FCC Class B (as specified) |
| Operating Temp | Not specified |
| Power Consumption | Determined by connected load and conversion efficiency |
| Dimensions | Not specified |
| Weight | Not specified |
Channel Isolation and Process Instrument Power Characteristics
The SPU65-302 is intended to provide regulated DC power for process instrumentation and control equipment. When integrated into distributed control architectures, attention should be given to channel isolation requirements of downstream instrumentation. For analog measurement loops using 4-20 mA or HART communication, the power supply should be installed according to the isolation and grounding requirements specified for the connected field devices. The power supply itself does not define communication protocol functionality.
Frequently Asked Questions
Q: Does the SPU65-302 support hot-swapping during system operation?
A: The supplied documentation does not specify hot-swap capability. Installation or replacement should be performed with input power removed unless the host equipment documentation explicitly permits energized replacement.
Q: Can the output voltage be assumed to be 24 VDC for every SPU65-302 unit?
A: No. The available information indicates that output configuration may vary within the typical 12 VDC to 24 VDC range depending on the factory configuration. The output rating should be verified from the unit label before installation.
Q: Which protection mechanisms are integrated into the power supply?
A: The documented protection functions include over-voltage protection, over-current protection, and short-circuit protection with automatic recovery.
Field Installation Guidelines
- Verify the input supply voltage matches the specified 90 to 264 VAC operating range before energizing the unit.
- Confirm the output voltage and terminal assignment against the equipment nameplate prior to wiring.
- Maintain separation between AC input wiring and DC output wiring to reduce conducted electrical noise.
- Connect protective earth in accordance with the equipment installation instructions and applicable electrical standards.
- Use conductor sizes appropriate for the expected output current and terminal ratings.
- Inspect terminal tightness after installation and before initial power-up.
- Do not obstruct the natural convection airflow required for passive cooling.
