Overview

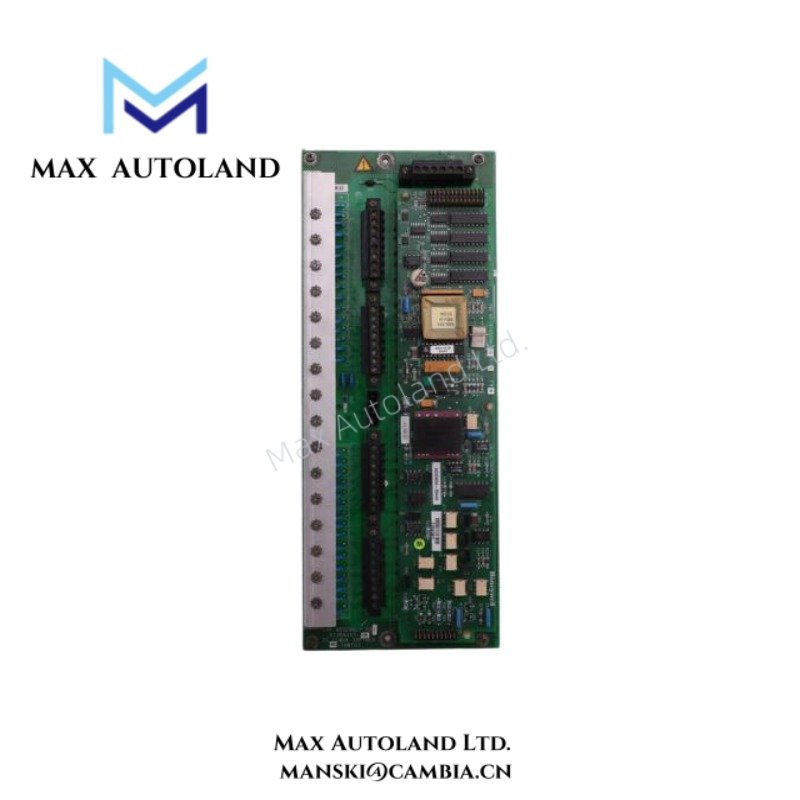

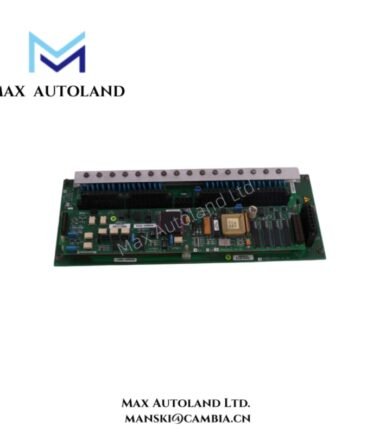

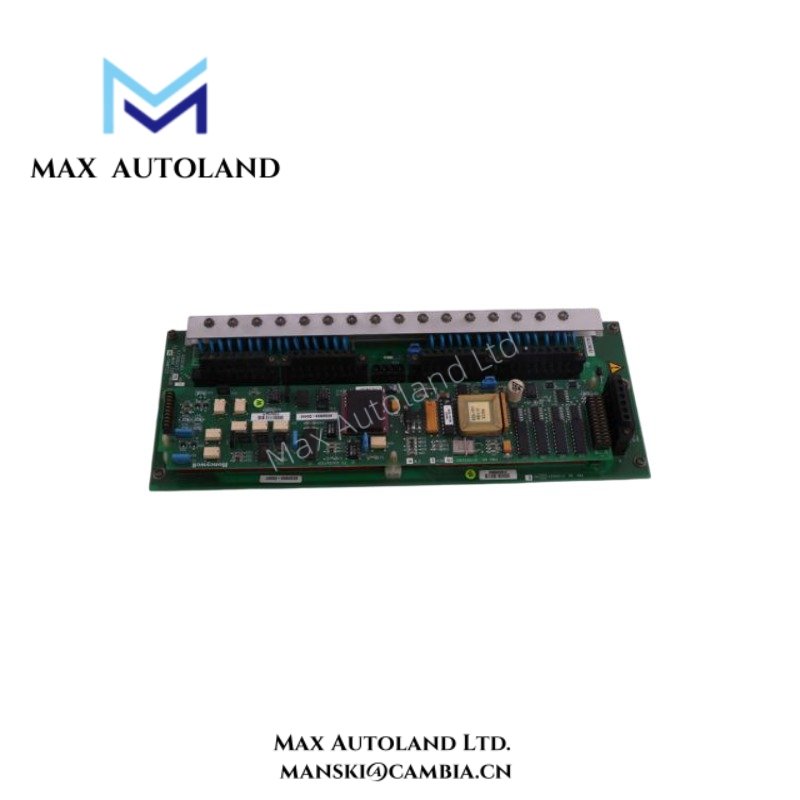

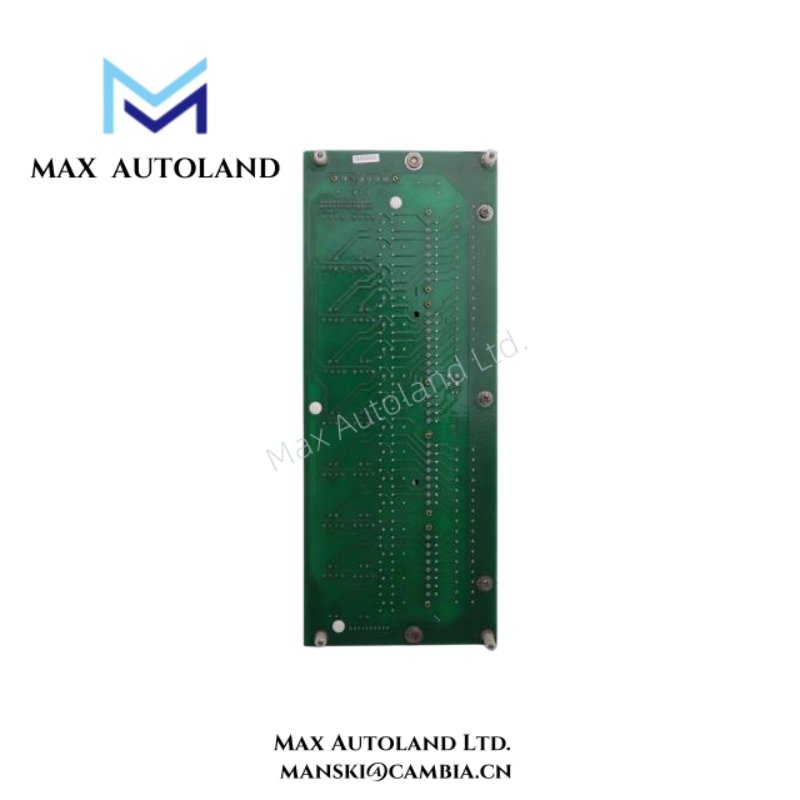

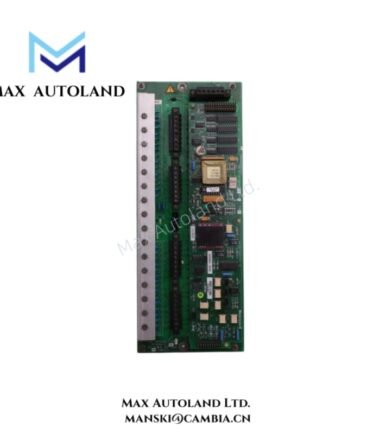

The MC-TAMT03 51309223-175 from Honeywell delivers accurate thermocouple signal multiplexing for demanding industrial environments.
It processes low-level millivolt signals while maintaining stable performance across Honeywell UCN distributed control systems.
Moreover, the module supports precise temperature acquisition, which improves monitoring accuracy in critical industrial processes.
Engineers select MC-TAMT03 51309223-175 for its reliable signal conditioning and robust electrical isolation design.
Specification
| Parameter | Specification |
|---|---|
| Model | MC-TAMT03 51309223-175 |
| Manufacturer | Honeywell |
| Product Type | Low Level Thermocouple Multiplexer Module |
| Series | Honeywell UCN (Universal Control Network) |
| Input Channels | 16 thermocouple input channels |
| Supported Thermocouple Types | Type J, K, T, E, and standard variants |
| Input Signal Range | ±100 mV low-level signals |
| Resolution | High-resolution A/D conversion |
| Measurement Accuracy | ±0.1% of full scale |
| Cold Junction Compensation | Integrated automatic compensation |
| Isolation Type | Channel-to-system electrical isolation |
| Isolation Voltage | Up to 1500V AC |
| Multiplexing Method | Sequential channel scanning |
| Scan Cycle Time | ≤ 100 ms for full channel cycle |
| Interface | UCN backplane interface |
| Connector Type | Industrial terminal block |
| Power Supply | Backplane powered |
| Power Consumption | ≤ 6W typical |
| Dimensions (L × W × H) | Approx. 160 × 120 × 50 mm |
| Weight | Approx. 0.6 kg |
| Mounting Method | Rack-mounted installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| EMC Compliance | Meets industrial EMC standards |
| Noise Suppression | Built-in filtering and shielding design |
| LED Indicators | Channel status and diagnostics display |
| Wiring Method | Screw terminal field wiring |
| Redundancy Support | Compatible with redundant system architectures |
FAQ
Q1: What thermocouple types does the module support?
The MC-TAMT03 51309223-175 supports Type J, K, T, and E thermocouples for flexible industrial applications.
Q2: Does the module include cold junction compensation?
Yes, the MC-TAMT03 51309223-175 includes integrated cold junction compensation for accurate temperature readings.
Q3: What is the delivery time for this module?
We keep MC-TAMT03 51309223-175 in stock, and we ship within 3 days to 2 weeks.
Q4: Which logistics services do you provide?
We usually ship MC-TAMT03 51309223-175 via DHL and other trusted international carriers.
Q5: Do you support returns if quality issues occur?
Yes, we support returns within 30 days if any quality issue occurs after delivery.
