Overview

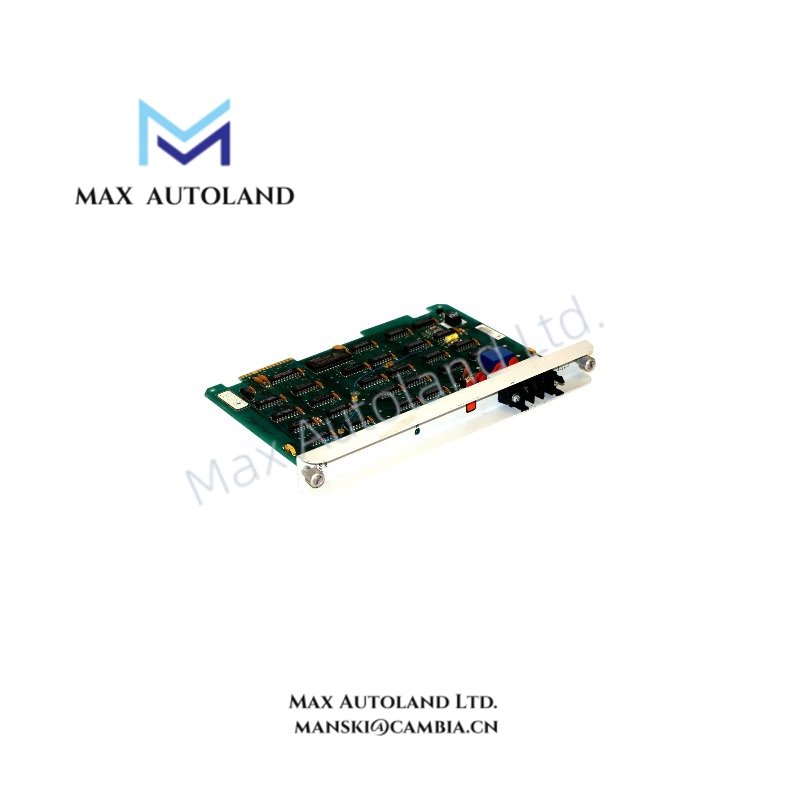

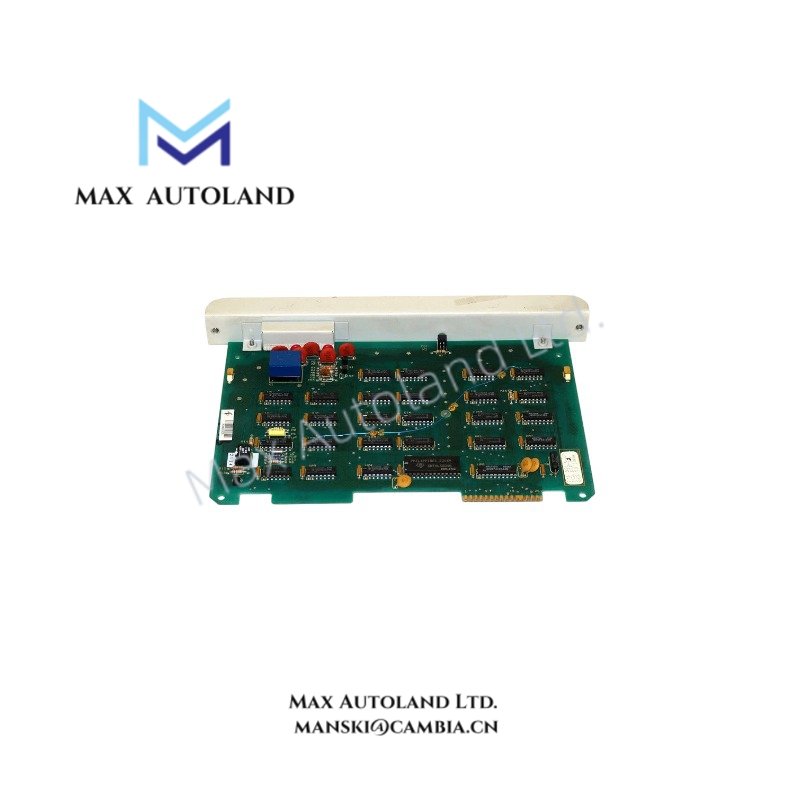

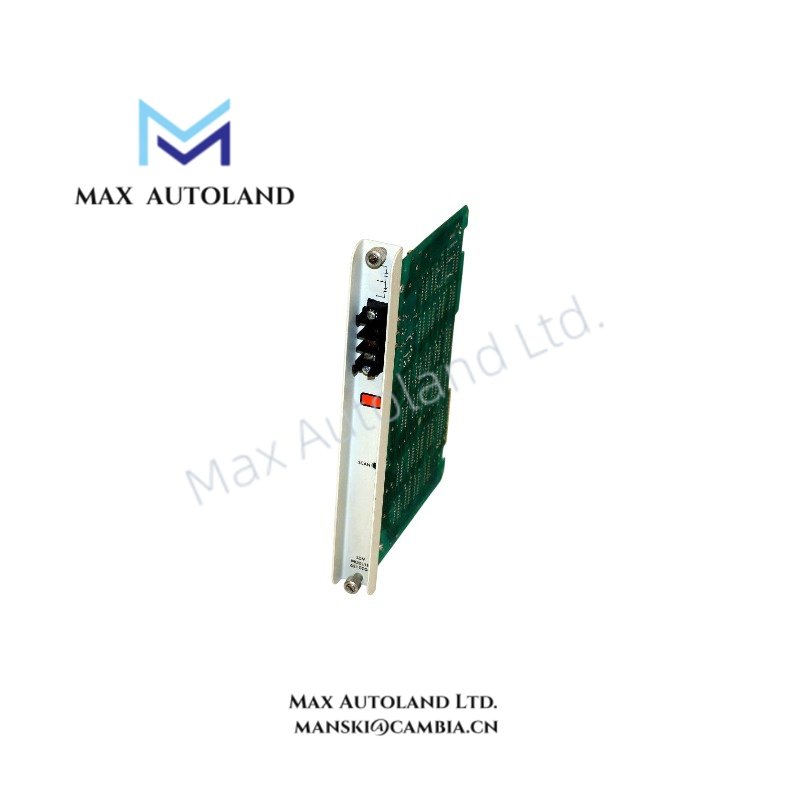

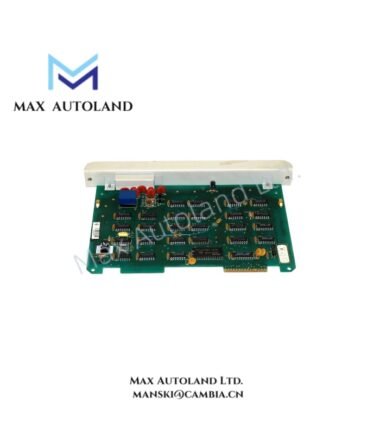

The Honeywell 621-0004, also cataloged as the 621-0004 SDM Module, operates as a dedicated hardware component for logic processing and memory management within UCN network platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 621-0004 |
| Brand | Honeywell |
| Origin | United States |
| Weight | 0.5 kg |
| Dimensions | 2.5 cm x 27.9 cm x 17.8 cm |
| Operating Temp | 0 to 60 degC |
| Power Consumption | 5 VDC via backplane |
| Module Type | Processor Module |
| Memory Capacity | 8K |
| I/O Capacity | 1024 Max |
Process Control and DCS Instrumentation
The module integrates channel-to-channel isolation across its designated I/O bus to suppress electrical noise and prevent ground loop interference from degrading signal integrity. Additionally, data transmission across the universal control network relies on rigid timing cycles to support 4-20 mA HART loop protocol parameters and deterministic process variable tracking without packet collision.
Frequently Asked Questions
Q: Does this module support hot-swapping under powered backplane conditions?
A: No. Power to the chassis rack must be completely disconnected before inserting or removing the processor module to prevent electrical arcing and memory corruption.
Q: What is the configuration limit for the local I/O handling on this unit?
A: The hardware architecture restricts the maximum addressable allocation to 1024 I/O points, utilizing an 8K memory sector for data buffering and execution code.
Field Installation Guidelines
- Chassis Grounding: Secure the module retention screws directly to the grounded metal sub-rack to establish a low-impedance path to the primary master ground bar.
- Wiring Separation: Route low-voltage signal cables and I/O lines in separate wireways away from high-voltage AC power distribution lines to minimize electromagnetic coupling.
- Clearance and Cooling: Maintain a minimum vertical clearance of 50 mm above and below the module rack to facilitate natural convection cooling and prevent thermal buildup inside the enclosure.
