Overview

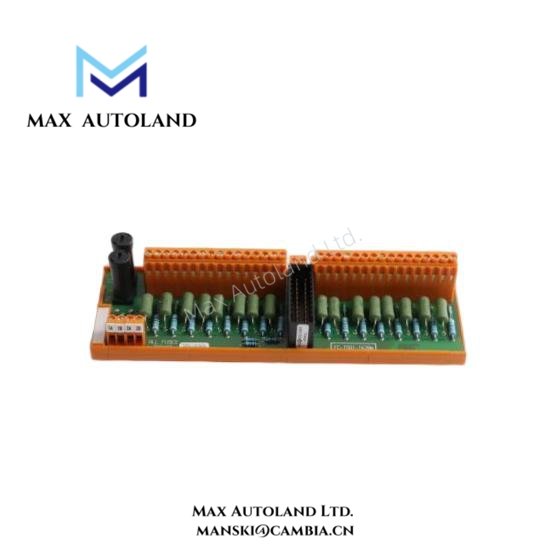

The FS-TSAI-1620M from Honeywell delivers high-performance analog input functionality for FSC Series control systems. It features 16 discrete channels, each supporting 4–20 mA or 0–10 V signals, which enables precise and reliable data acquisition from field devices. In addition, the module incorporates high-resolution ADCs, providing accurate measurements while minimizing signal noise. Furthermore, as part of the FSC Series, the FS-TSAI-1620M connects directly to Honeywell controller racks and backplane infrastructure, ensuring seamless integration and consistent system performance.
Specification
| Specification Item | Details |
|---|---|
| Model Number | FS-TSAI-1620M |
| Manufacturer | Honeywell |
| Product Series | FSC Series |
| Product Type | Analog Input Module |
| Number of Input Channels | 16 analog inputs |
| Supported Signal Types | 4–20 mA, 0–10 V |
| Input Impedance | 250 Ω for current inputs |
| Resolution | 16-bit ADC per channel |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-backplane isolation |
| Status Indicators | Front-panel LEDs per channel |
| Backplane Interface | FSC Series rack connector |
| Module Slot Requirement | 1 FSC rack slot |
| Power Consumption | Approximately 4 W |
| Energy Storage Components | Capacitors for signal stabilization |
| Mechanical Construction | Industrial-grade electronic module |
| Cooling Method | Passive convection cooling |
| Approximate Dimensions (W×H×D) | 40 × 130 × 150 mm |
| Approximate Weight | 0.65 kg |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation Location | FSC Series control rack |
| Typical Applications | Process monitoring, distributed control systems, analog signal acquisition |
FAQ
Q1: Is the FS-TSAI-1620M a brand-new original Honeywell product?
A1: Yes, every FS-TSAI-1620M we supply is brand-new, factory original, and manufactured by Honeywell.
Q2: Is the FS-TSAI-1620M in stock for immediate shipping?
A2: Yes, we maintain ready stock of FS-TSAI-1620M modules for prompt order fulfillment.
Q3: How quickly can you ship the FS-TSAI-1620M?
A3: We ship FS-TSAI-1620M within three days to two weeks depending on order size.
Q4: Which logistics carriers are commonly used?
A4: We typically ship FS-TSAI-1620M using DHL and other reliable international couriers.
Q5: How many analog input channels does the FS-TSAI-1620M provide?
A5: The FS-TSAI-1620M provides 16 high-resolution analog input channels supporting 4–20 mA or 0–10 V signals.
Q6: What is the return policy if quality issues occur?
A6: We support returns for FS-TSAI-1620M within 30 days if any verified quality issues are found.
