Overview

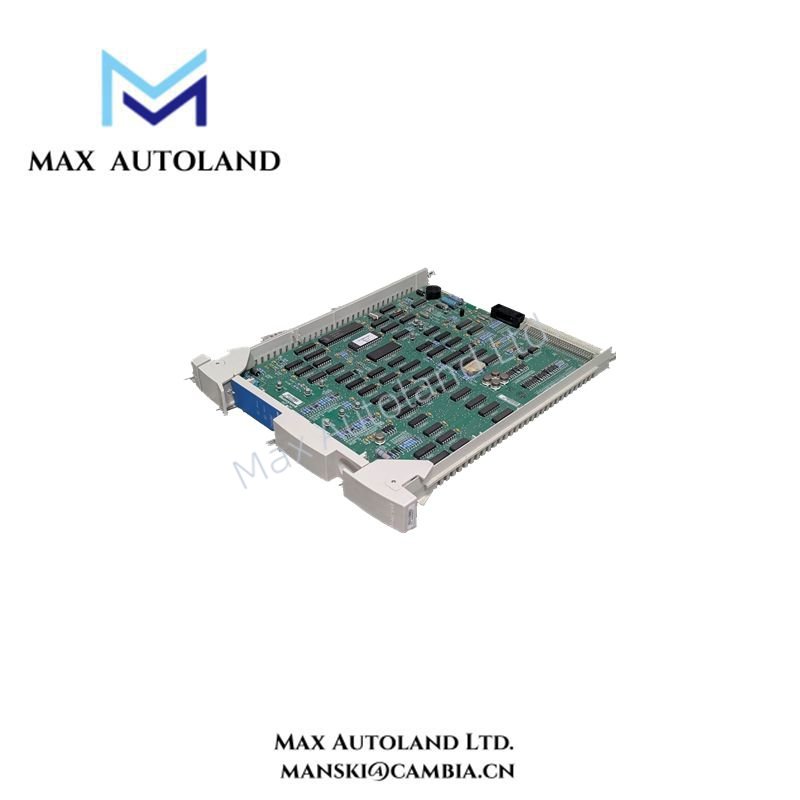

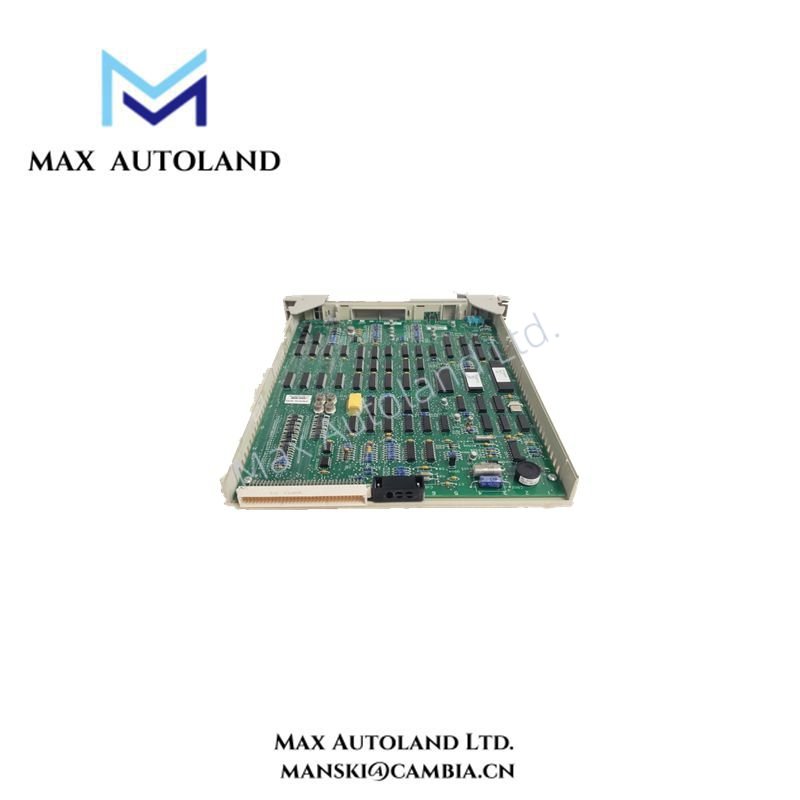

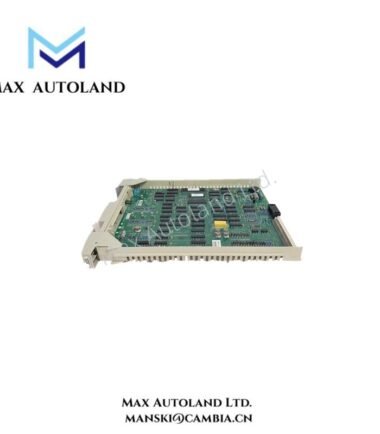

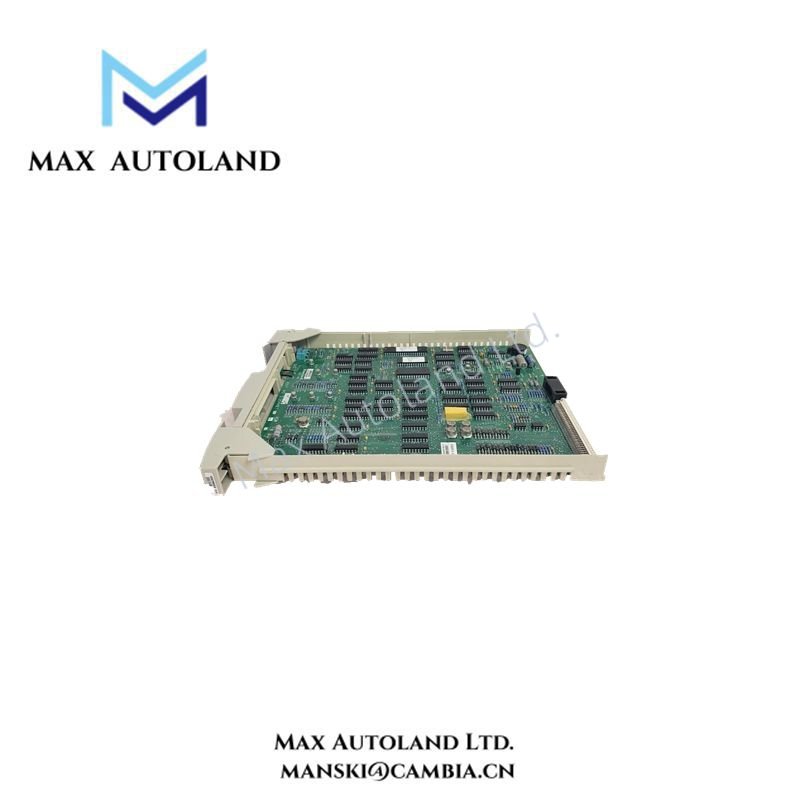

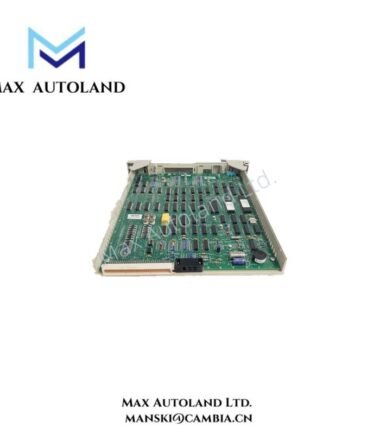

The Honeywell MC-PDOX02 51304487-150 is a 16-point digital output processor designed for Honeywell’s TotalPlant Solution (TPS) systems. It provides reliable digital output capabilities for Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM) controllers. This module is ideal for applications requiring precise control of industrial processes.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-PDOX02 51304487-150 |
| Module Type | Digital Output Processor |
| Number of Outputs | 16 discrete outputs |
| Output Type | Solid-state relay (SSR) or electromechanical relay |
| Output Voltage | 24 VDC nominal (18–30 VDC range) |
| Output Current | 2 A per channel (3 A total) |
| Isolation | 2500 Vrms between power supply and outputs |
| Conformal Coating | Yes (protects against humidity and chemical gases) |
| Dimensions | 4.25″ x 5.75″ x 1.12″ (108 x 146 x 28 mm) |
| Weight | 0.58 kg (1.28 lbs) |
| Operating Temperature | -40°C to +70°C |
| Compliance | CE, UL certified |
