Overview

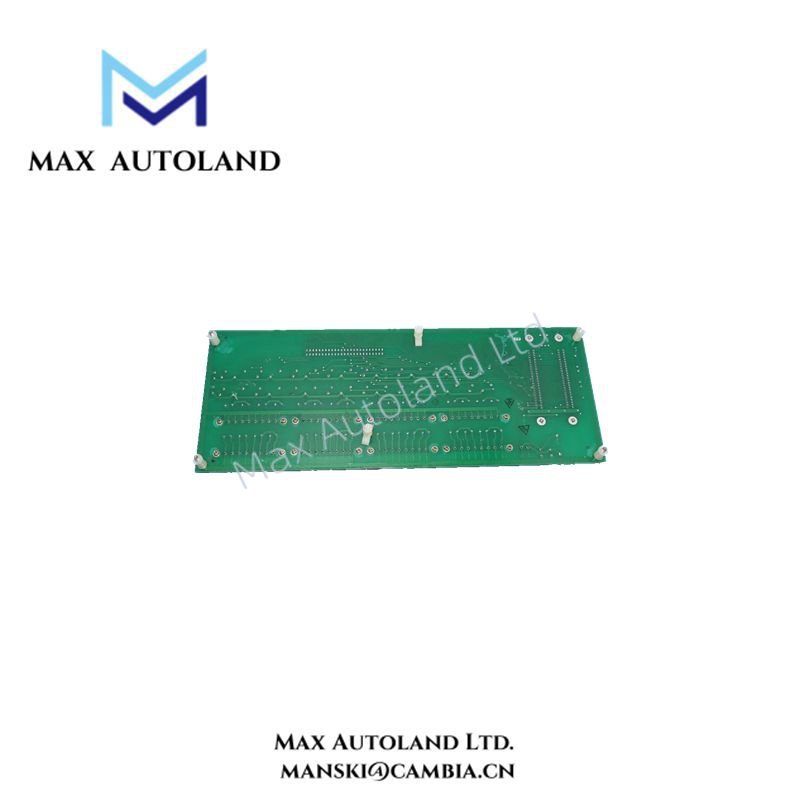

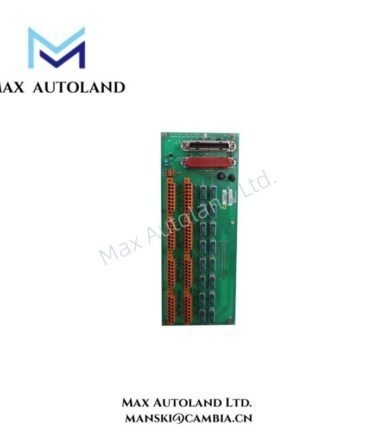

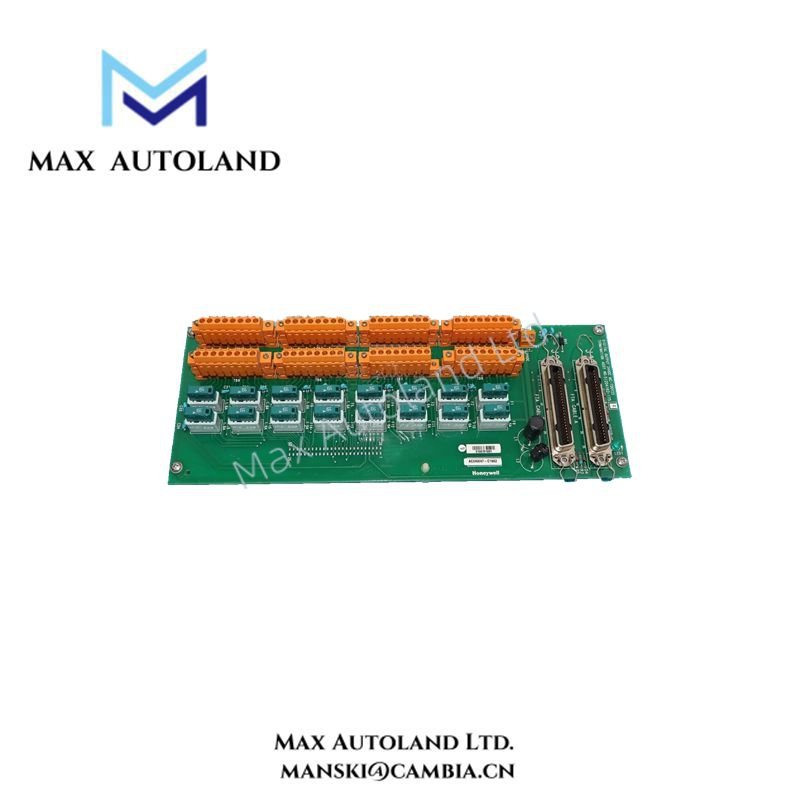

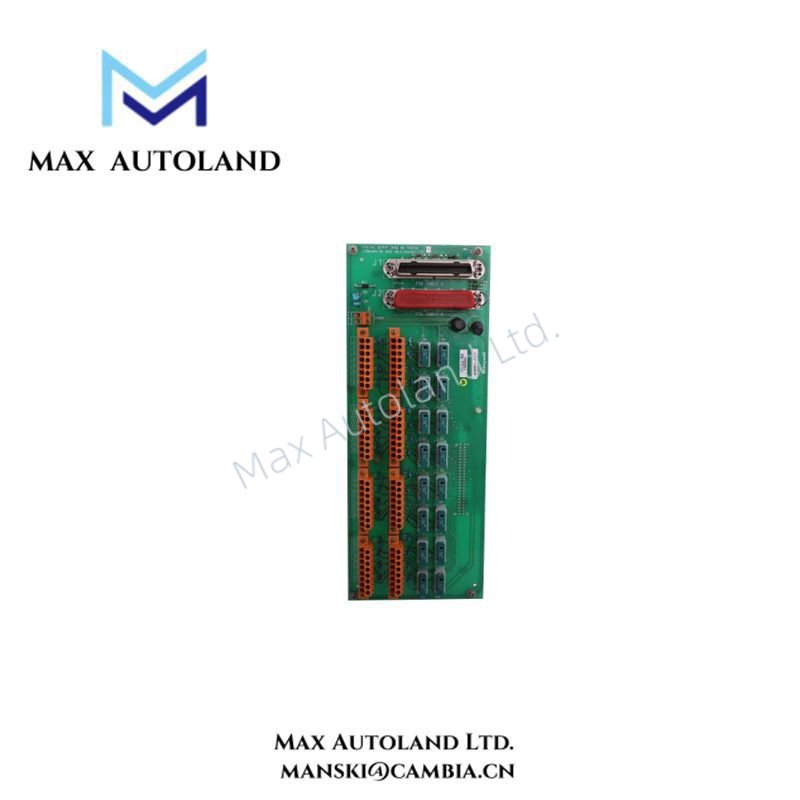

The Honeywell MC-TDOY22 51204162-175 is a high-performance digital output module designed for Honeywell’s Field Termination Assembly (FTA) systems. It features 32 independent 24 VDC output channels, enabling precise control of industrial devices. This module is compatible with the MU-PDOY22 processor and is ideal for applications requiring reliable and scalable digital output solutions.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model | MC-TDOY22 51204162-175 |
| Module Type | Digital Output FTA |
| Output Channels | 32 independent channels |
| Output Voltage | 24 VDC |
| Load Voltage Range | 15–30 VDC |
| Load Current | 0.5 A per point; 1.0 A per 2 points; 5 A total |
| Output Type | Open-collector (NPN) |
| Isolation | Galvanic isolation via photo coupler (30 VAC, ±42.4 VDC max) |
| On-State Voltage | ≤0.5 V at 0.5 A load |
| Off-State Voltage | ≤30 VDC |
| Power Consumption | 1.5 W max |
| Dimensions | 7.0″ x 4.5″ x 2.5″ (17.8 cm x 11.4 cm x 6.4 cm) |
| Weight | 1 kg |
| Environmental Protection | Conformal coating for enhanced durability |
| Compliance | CE certified |
