Overview

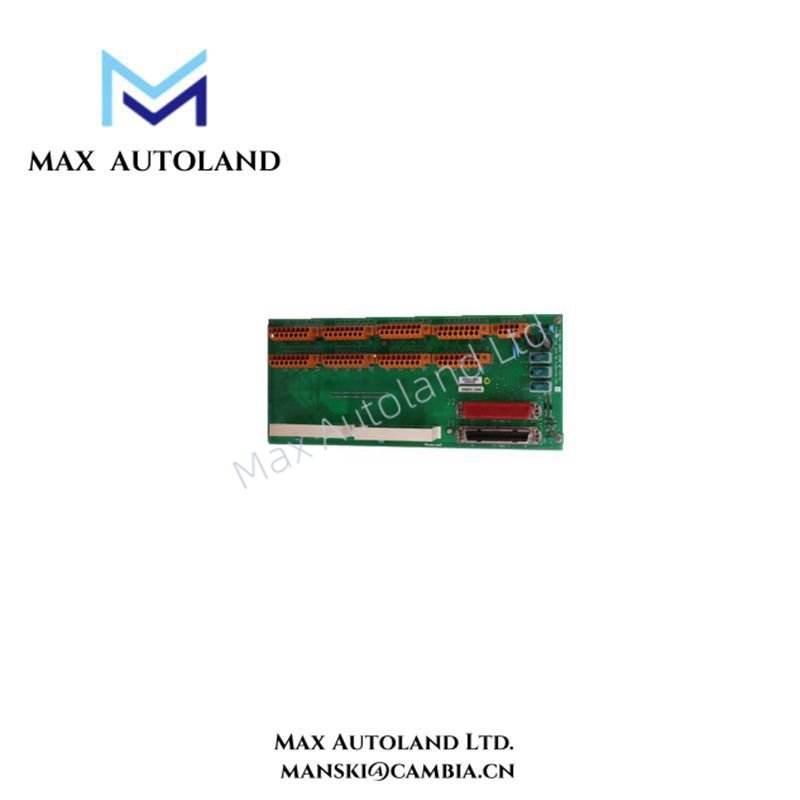

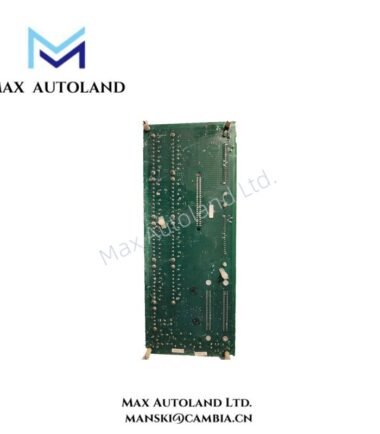

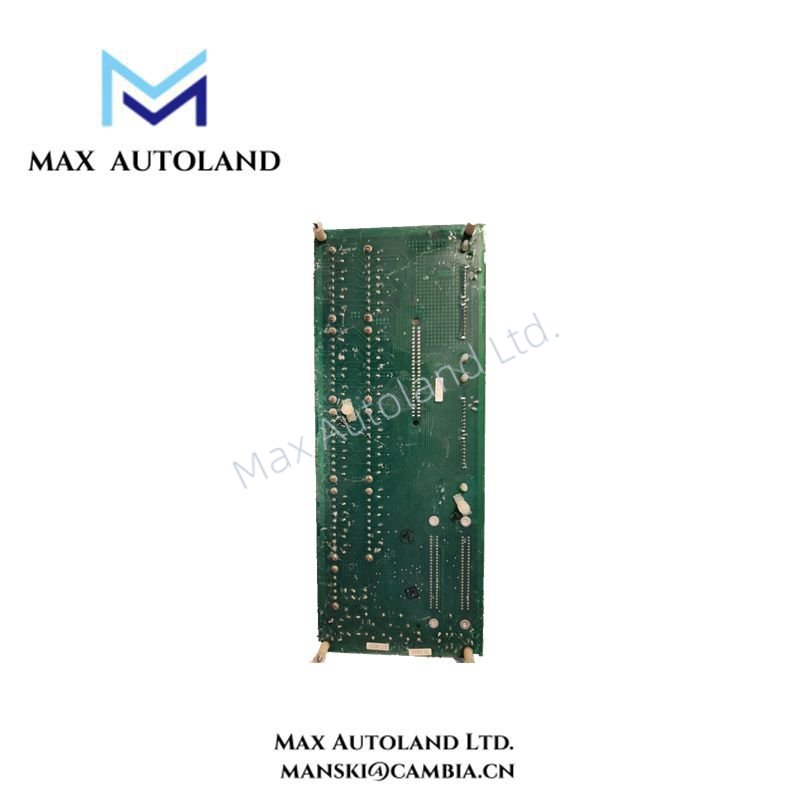

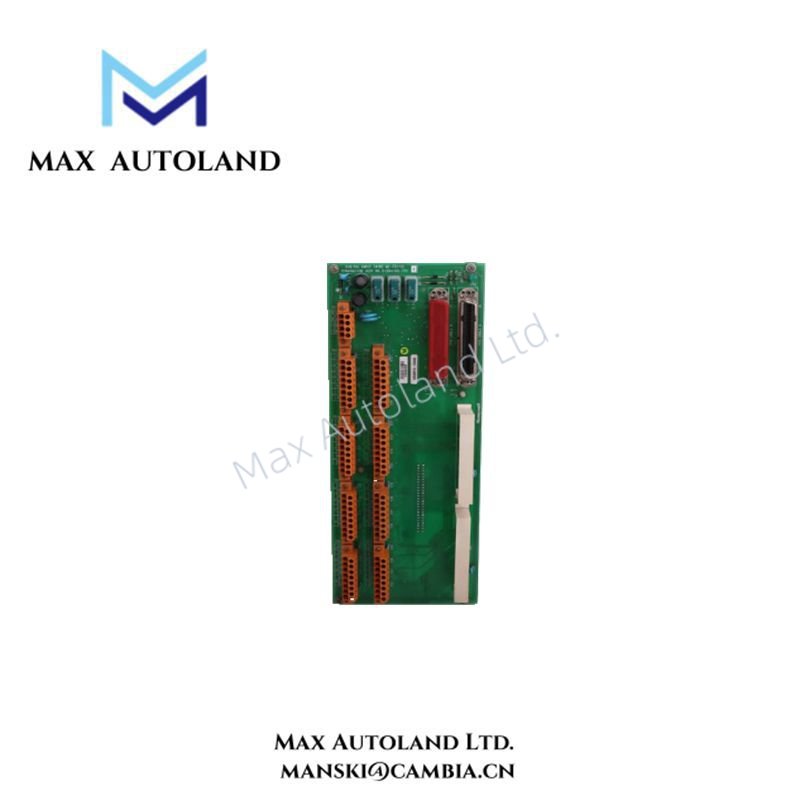

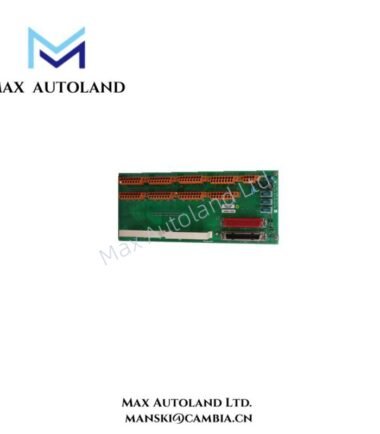

The Honeywell MC-TDIY22 80366180-175 is a high-performance Digital Input Field Termination Assembly (FTA) designed for Honeywell FSC systems. It offers 32 isolated digital input channels, each capable of handling 24 VDC signals, making it ideal for industrial automation and machine control applications.
Specification
| Specification | Details |
|---|
| Manufacturer | Honeywell |
| Model Number | MC-TDIY22 80366180-175 |
| Module Type | Digital Input Field Termination Assembly |
| Input Channels | 32 |
| Input Voltage | 24 VDC |
| Input Current | Approx. 200 mA per channel |
| Power Consumption | Up to 1.5 W |
| Isolation Voltage | 1500 VDC |
| Dimensions (L × W × H) | 17.8 cm × 11.4 cm × 6.4 cm |
| Weight | Approx. 1 kg |
| Operating Temperature | –40 °C to +85 °C |
| Mounting | Rack-mounted in field termination setup |
| Terminal Type | Compression terminals |
| Compliance | CE Compliant (Part Number: 80366180-175) |
