Overview

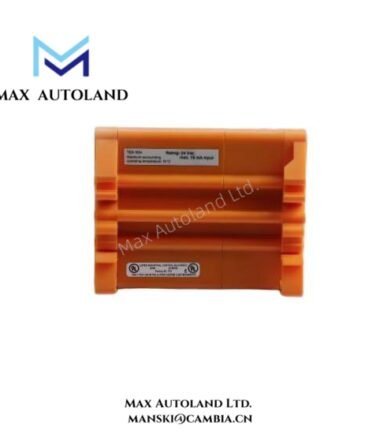

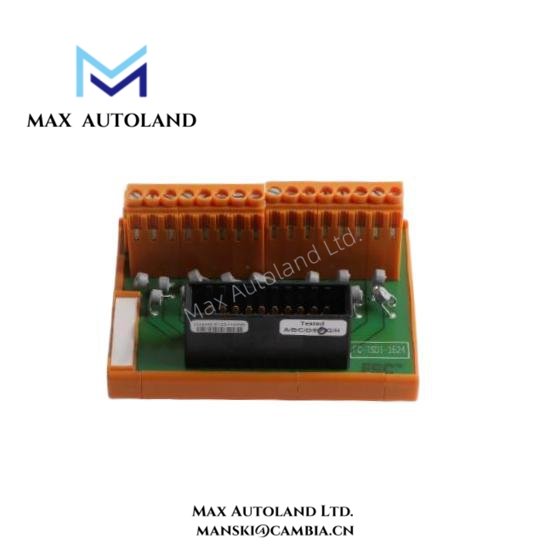

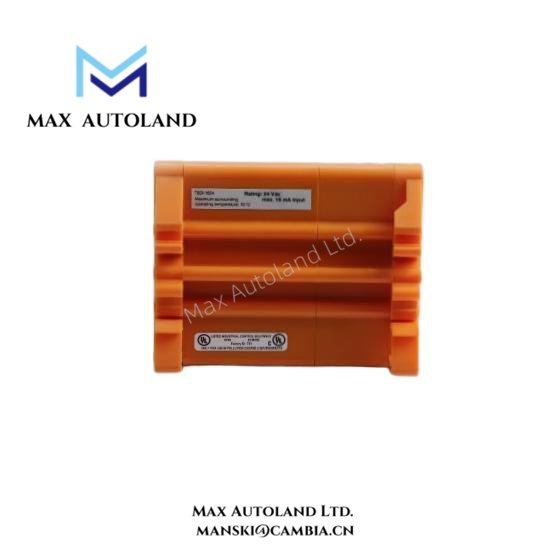

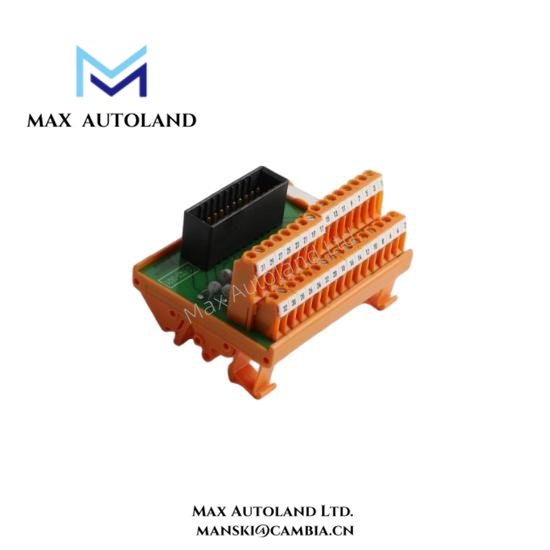

The FS-TSDI-1624 from Honeywell functions as a digital input field termination assembly for FSC Series control systems. It offers 16 discrete channels, which provide reliable field wiring connections for digital input signals. Moreover, the assembly operates at 24 VDC and integrates signal conditioning, ensuring accurate and stable communication with connected modules. Furthermore, as part of the FSC Series, the FS-TSDI-1624 connects directly to Honeywell controller racks and digital input modules, which simplifies installation and streamlines maintenance procedures.
Specification
| Specification Item | Details |
|---|---|
| Model Number | FS-TSDI-1624 |
| Manufacturer | Honeywell |
| Product Series | FSC Series |
| Product Type | Digital Input Field Termination Assembly |
| Number of Channels | 16 discrete digital inputs |
| Input Voltage | 24 VDC nominal |
| Status Indicators | LED per channel for signal and fault detection |
| Signal Conditioning | Integrated for noise reduction and accurate communication |
| Backplane Interface | FSC Series digital input module connector |
| Module Slot Requirement | 1 FSC rack slot |
| Power Consumption | Approximately 1 W |
| Mechanical Construction | Industrial-grade assembly with protective enclosure |
| Cooling Method | Passive convection |
| Approximate Dimensions (W×H×D) | 50 × 130 × 160 mm |
| Approximate Weight | 0.75 kg |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation Location | FSC Series control rack or field panel |
| Typical Applications | Digital input signal termination, field wiring, distributed control systems |
FAQ
Q1: Is the FS-TSDI-1624 a brand-new original Honeywell product?
A1: Yes, every FS-TSDI-1624 we supply is brand-new, factory original, and manufactured by Honeywell.
Q2: Do you currently have FS-TSDI-1624 in stock?
A2: Yes, we maintain ready stock of FS-TSDI-1624 for immediate fulfillment.
Q3: How quickly can you ship FS-TSDI-1624?
A3: We ship FS-TSDI-1624 within three days to two weeks depending on the order size.
Q4: Which logistics carriers are commonly used?
A4: We typically ship FS-TSDI-1624 using DHL and other trusted international couriers.
Q5: How many digital input channels does FS-TSDI-1624 support?
A5: The FS-TSDI-1624 provides 16 discrete digital input channels for FSC Series modules.
Q6: What return policy applies if quality issues occur?
A6: We support returns for FS-TSDI-1624 within 30 days if any verified quality issues are found.
