Overview

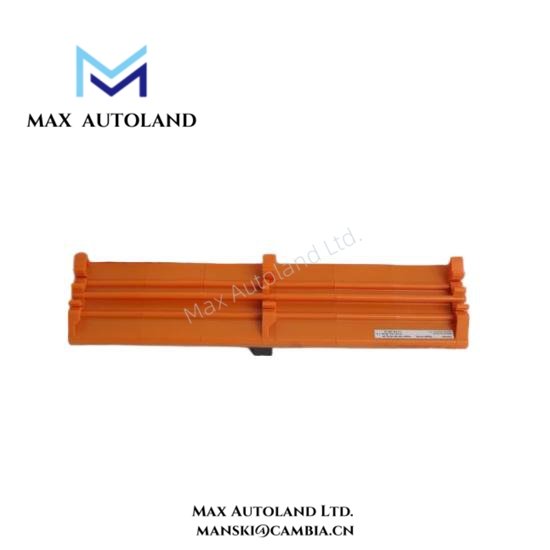

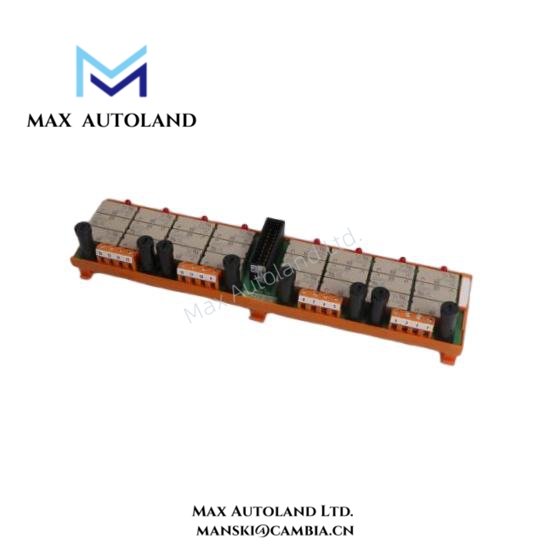

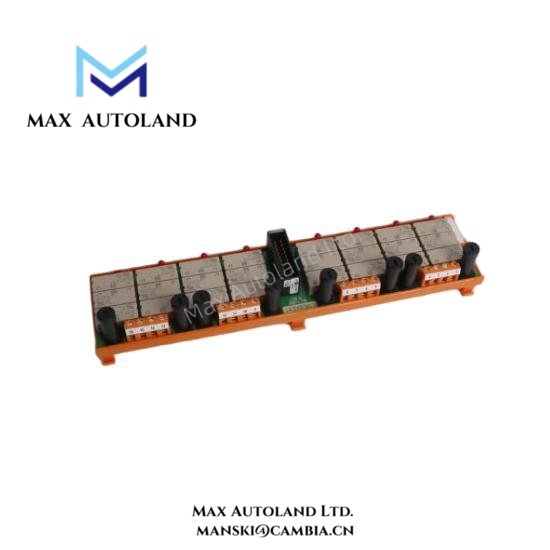

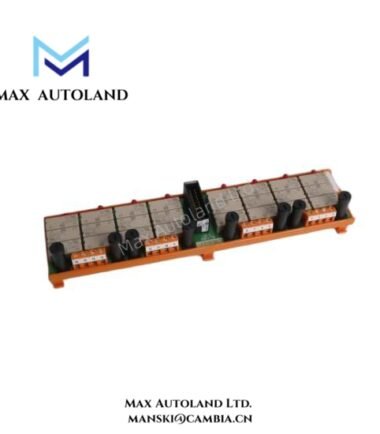

The FC-TSRO-0824 V1.1 Honeywell FSC Series Digital Output Field Termination Assembly provides a reliable interface between safety controllers and field actuators. It simplifies wiring for digital output signals while maintaining signal integrity in safety-critical systems. Moreover, this assembly supports consistent termination practices within Honeywell Safety Manager architectures.
Specification
| Parameter | Specification |
|---|---|
| Model | FC-TSRO-0824 V1.1 |
| Manufacturer | Honeywell |
| Series | FSC (Fail Safe Controller) Series |
| Product Type | Digital Output Field Termination Assembly (FTA) |
| Supported Output Channels | 8 digital output channels |
| Output Type | Relay output termination |
| Rated Output Voltage | Up to 24 V DC (system dependent) |
| Rated Output Current | According to connected output module specifications |
| Channel Isolation | Relay-based electrical isolation |
| Terminal Type | Screw terminals for field wiring |
| Field Wiring Capacity | Supports standard industrial control cabling |
| Diagnostics Support | Status indication via controller diagnostics |
| Backplane Interface | Direct connection to FSC Series output modules |
| Mounting Method | DIN rail mounting |
| Dimensions (L × W × H) | Approx. 170 × 95 × 60 mm |
| Weight | Approx. 0.45 kg |
| Operating Temperature | –5 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| System Compatibility | Honeywell Safety Manager FSC systems |
FAQ
Q1: What is the primary function of the FC-TSRO-0824 V1.1?
A1: The FC-TSRO-0824 V1.1 provides field termination for eight relay-based digital output channels.
Q2: Is this unit compatible with Honeywell FSC Series systems?
A2: Yes, it integrates directly with Honeywell FSC Series digital output modules and Safety Manager systems.
Q3: Does the assembly provide electrical isolation?
A3: Yes, relay outputs provide effective electrical isolation between controller and field devices.
Q4: What type of field wiring does it support?
A4: The assembly uses industrial screw terminals suitable for standard control and safety wiring.
Q5: Is the product supplied new and original?
A5: Yes, all units are brand-new, original Honeywell products.
Q6: What are the shipping and return conditions?
A6: In-stock items ship within 3 days to 2 weeks, and we support 30-day returns for quality issues.
