Overview

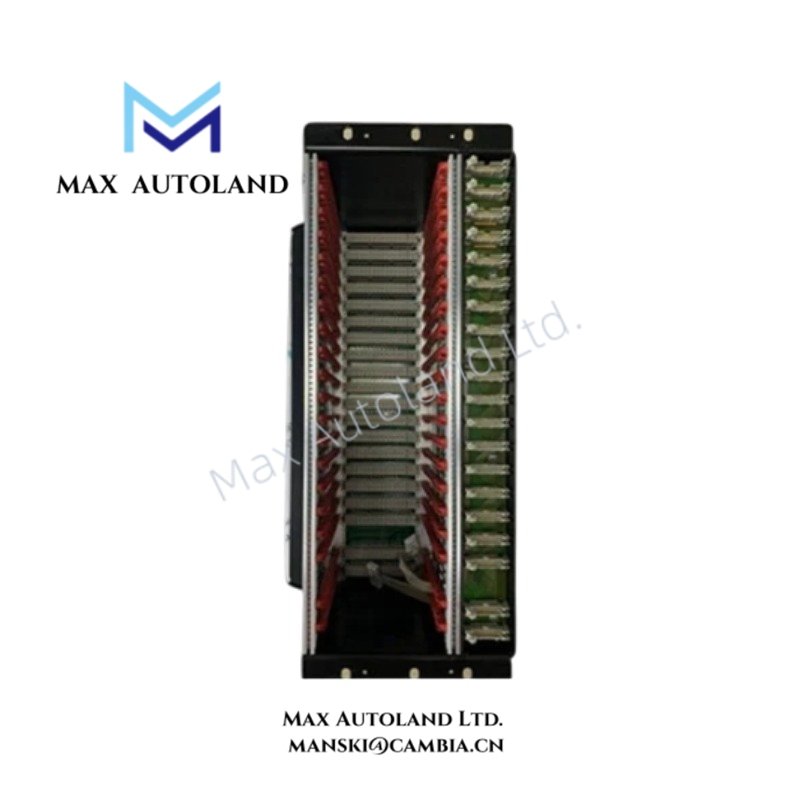

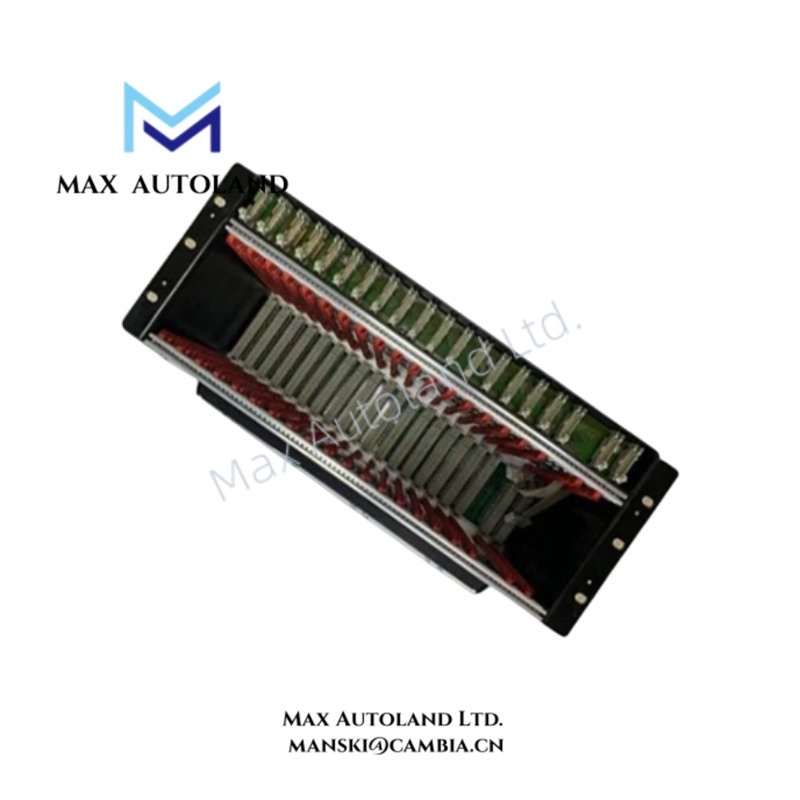

Configured for structured mounting and backplane interconnection of safety I/O modules in Honeywell Safety Manager and compatible control system configurations, the Honeywell FC-IOCHAS-0002S (FC-IOCHAS-0002S Safety I/O Chassis) provides the mechanical framework for module installation, power distribution, and internal signal interconnection.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FC-IOCHAS-0002S |
| Brand | Honeywell |
| Product Type | Safety I/O Chassis / Mounting Rack |
| Dimensions | 482.6 mm W x 280 mm D; height varies with slot configuration |
| Mounting | Standard 19-inch rack or panel mount |
| Operating Temp | 0 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Operating Humidity | 5% to 95% non-condensing |
| Power Consumption | Not specified in provided data |
| System Compatibility | Honeywell Safety Manager / compatible I/O configurations |
| Chassis Function | Module mounting, backplane interconnection, and internal power distribution |
| Enclosure Material | Industrial-grade coated steel/aluminum |
Backplane and Process Control Integration
The FC-IOCHAS-0002S provides the mechanical and electrical infrastructure required to position compatible I/O modules within a structured chassis assembly. It supports module placement and internal backplane connections while maintaining defined physical separation between installed hardware.
For Honeywell process control configurations, the chassis provides the mounting path for I/O hardware rather than performing signal conversion itself. Therefore, functions such as 4-20 mA processing, HART communication, FOUNDATION Fieldbus communication, and channel-level isolation depend on the installed I/O modules and termination hardware.
The chassis also supports organized power and signal routing. Consequently, field wiring should remain separated from internal module and backplane connections according to the applicable Honeywell installation documentation.
Frequently Asked Questions
Q: Does the FC-IOCHAS-0002S itself perform analog or digital signal processing?
A: No specific signal-processing function is assigned to the chassis in the provided data. The installed I/O modules perform the applicable field signal functions.
Q: Does the supplied data specify chassis power consumption?
A: No. The provided specifications do not state a chassis power-consumption value.
Q: Can the chassis be installed in a standard 19-inch rack?
A: The supplied data identifies the FC-IOCHAS-0002S as suitable for a standard 19-inch rack or panel-mount arrangement.
Field Installation Guidelines
Install the chassis on a mechanically rigid rack or panel surface that supports the complete installed module assembly. Confirm the available enclosure depth before installation because the supplied chassis depth is 280 mm.
Maintain adequate clearance around the chassis for module insertion, cable routing, inspection, and service access. Route field wiring separately from power and internal signal wiring where the installation design requires segregation.
Connect protective grounding and chassis bonding according to the applicable Honeywell system installation requirements. Keep cable shields and drain conductors controlled at the designated grounding points rather than creating unintended ground loops.
Before energizing the system, verify module orientation, connector engagement, mounting hardware, backplane connections, and cable routing. Also confirm that each installed I/O module matches the system configuration and applicable Honeywell hardware documentation.
