Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CC-TAIX01 51308363-175 |
| Brand | Honeywell |
| Product Type | Analog Input Module |
| Spare Model | 51308363-175 |
| Origin | USA |
| Weight | 0.24 kg |
| Dimensions | 14.5 x 12 x 6.5 cm (estimated shipping size) |
| Power Consumption | 0.195 A at 24 VDC |
| Input Type | Voltage, current |
| Input Channels | 16 channels |
| Analog Input Resolution | 16 bits A/D converter |
| Common Mode Voltage | -6 to +5 V peak, dc to 60 Hz |
| Normal Mode Rejection Ratio | 19 dB at 60 Hz |
| Normal Mode Filter Response | Single-pole RC filter, -3 dB at 6.5 Hz |
| Channel-to-Channel Crosstalk | -60 dB, dc to 60 Hz |
| Termination Type | Input Output Termination Assembly (IOTA) |
| Tariff Code | 8537101190 |
| Manufacturer Status | Discontinued by manufacturer |
Process Signal Conditioning and Channel Isolation

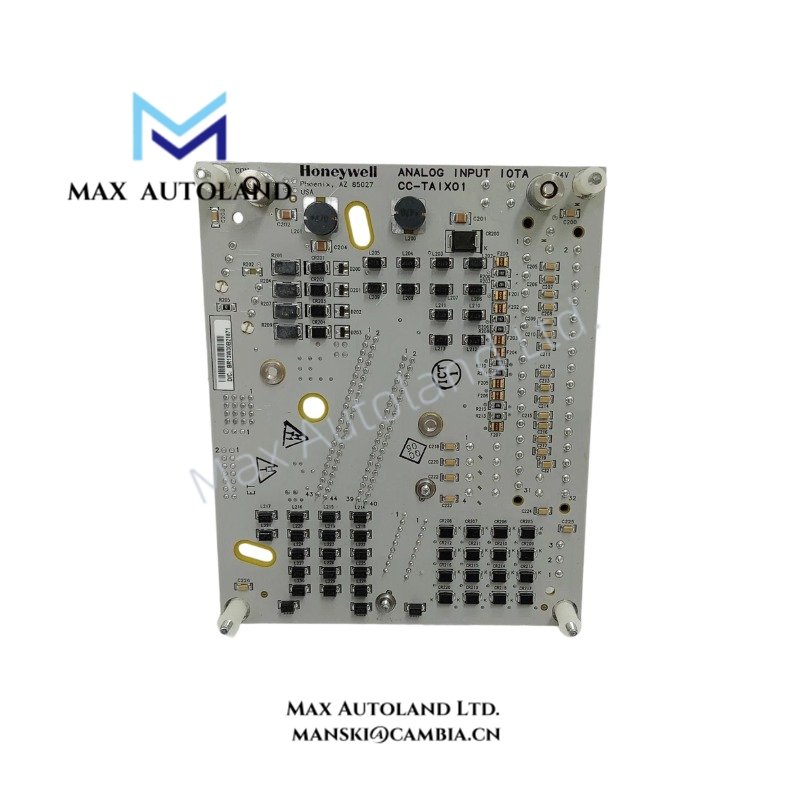

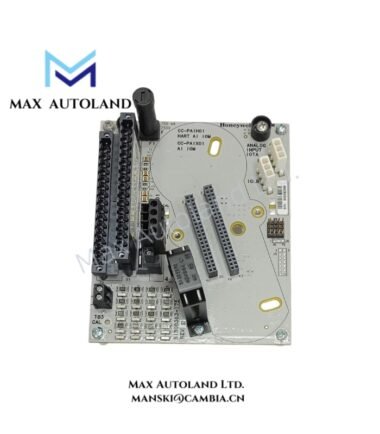

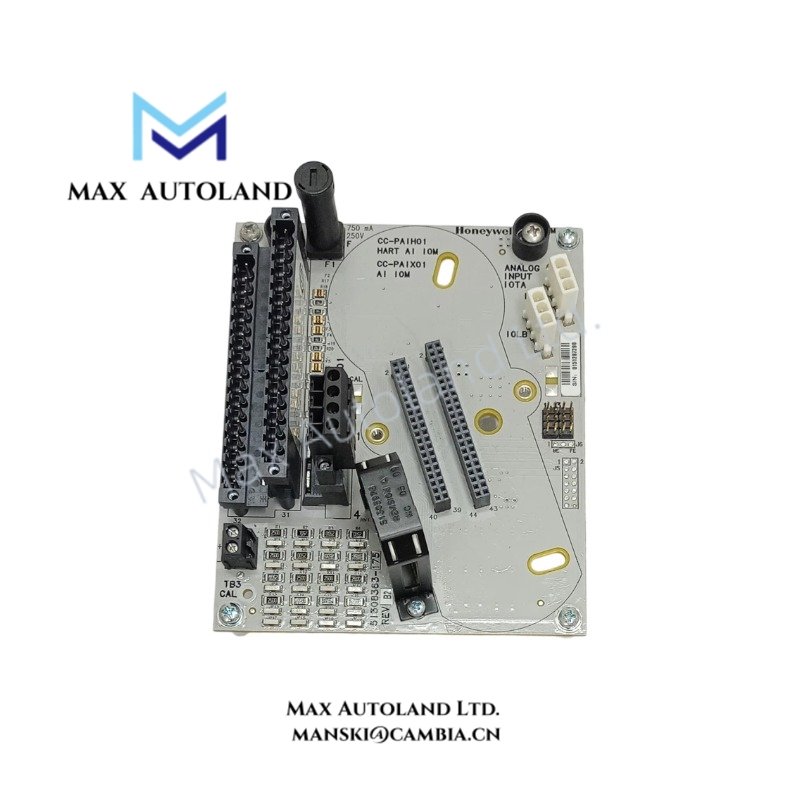

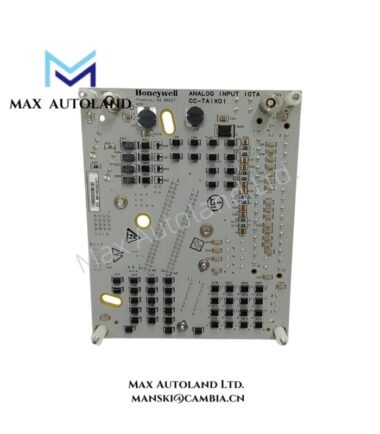

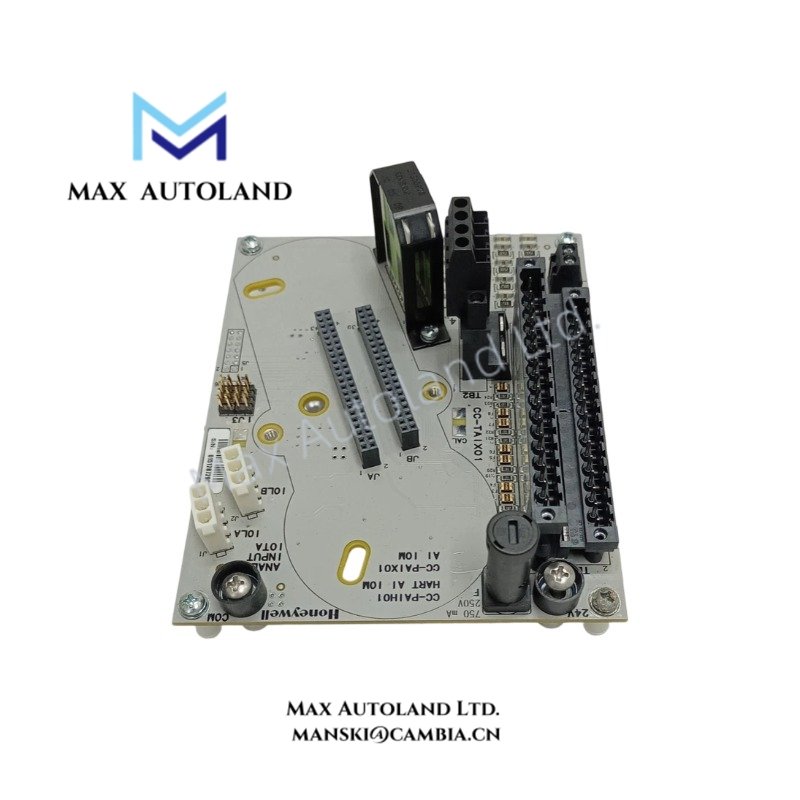

The Honeywell CC-TAIX01 51308363-175 processes voltage and current analog signals through 16 independent input channels. The module uses a 16-bit analog-to-digital converter to convert field signals into digital values for controller processing.
In addition, the module applies channel-to-channel crosstalk suppression with a specified value of -60 dB from dc to 60 Hz. Therefore, adjacent analog input channels maintain signal separation during multi-point measurement applications.
The input design supports process control instrumentation requirements, including analog transmitter interfaces and field measurement loops. However, the available specifications do not define HART, FOUNDATION Fieldbus, or Profibus PA communication capability for this module.
Frequently Asked Questions (FAQ)
Q: What signal types does the Honeywell CC-TAIX01 51308363-175 accept?
A: The CC-TAIX01 accepts voltage and current analog input signals through 16 input channels.
Q: What is the analog conversion resolution of this module?
A: The module uses a 16-bit A/D converter for analog signal conversion.
Q: Does the CC-TAIX01 provide channel isolation or filtering functions?
A: The module provides normal mode filtering and specifies channel-to-channel crosstalk performance. Detailed galvanic isolation specifications are not provided.
Field Installation Guidelines
- Install the CC-TAIX01 51308363-175 in the designated Honeywell I/O termination assembly position according to system hardware documentation.
- Verify that the 24 VDC supply wiring matches the module power requirements before energizing the I/O assembly.
- Separate analog signal wiring from high-voltage power cables to reduce electrical interference.
- Use shielded instrumentation cables where required by the field transmitter installation practice.
- Connect cable shields according to the control system grounding standard to minimize noise coupling.
- Confirm field polarity and signal type before connecting voltage or current inputs to the module channels.
- Inspect terminal connections and mechanical mounting conditions before system startup.
