Overview

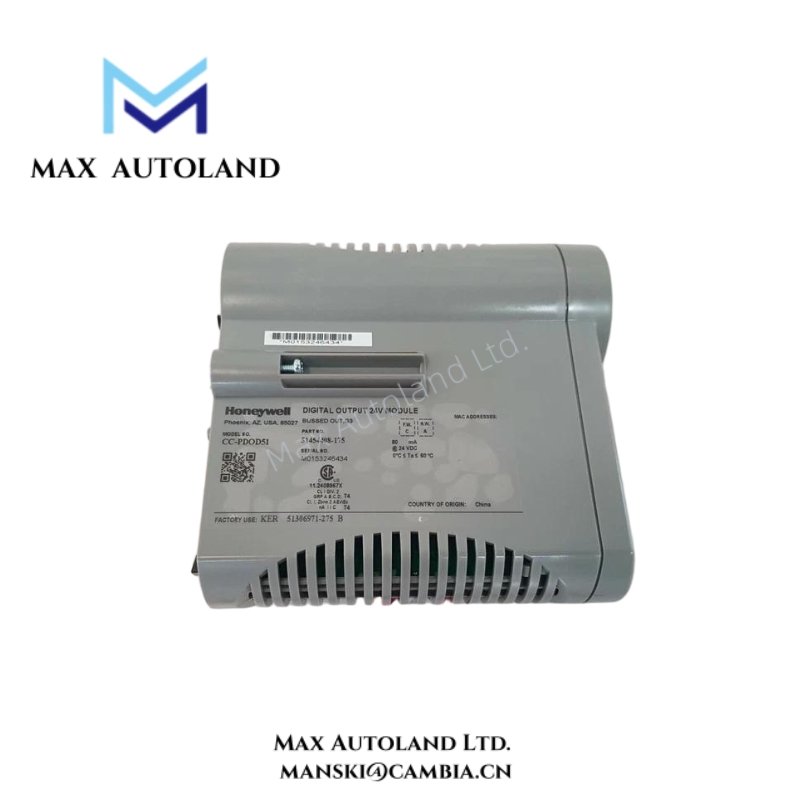

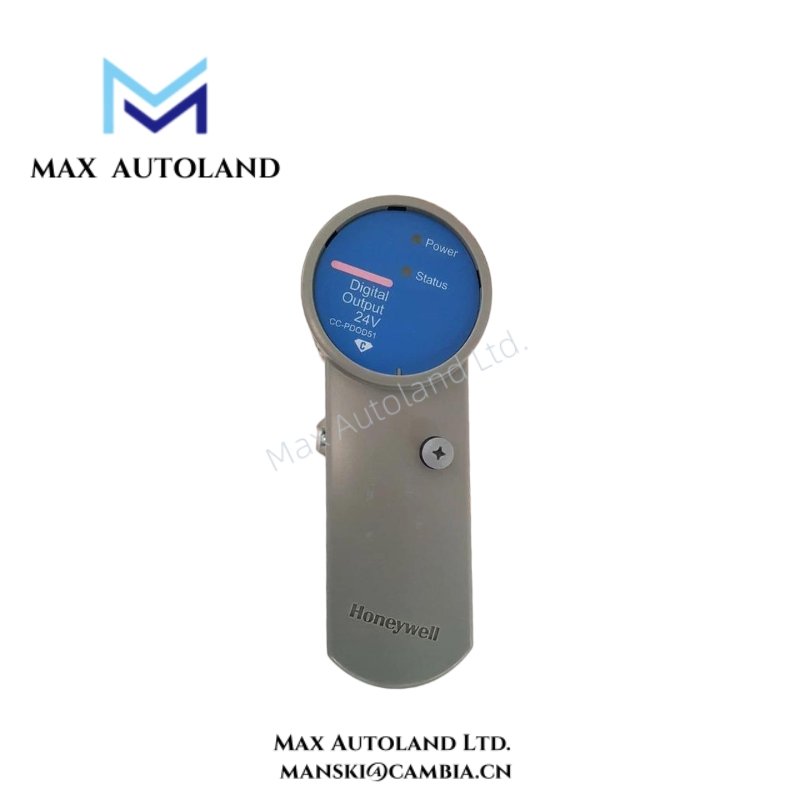

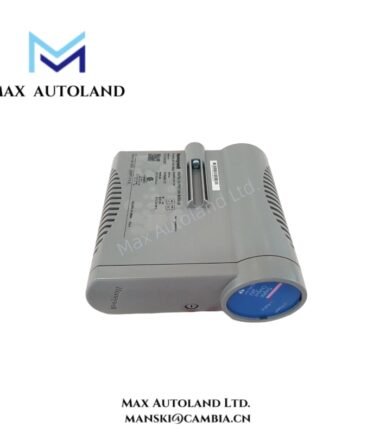

The Honeywell CC-PDOD51 Digital Output Module delivers reliable and precise digital signal control for industrial automation systems. Moreover, it integrates seamlessly with Experion PKS C200 Series controllers, enabling efficient management of process outputs. Engineers benefit from its robust design, which ensures stable performance in harsh industrial environments. Therefore, the module improves operational safety, reduces maintenance requirements, and enhances process efficiency. In addition, its user-friendly diagnostics simplify troubleshooting and system monitoring.
Specification
| Parameter | Specification |
|---|---|
| Model Number | CC-PDOD51 |
| Module Type | Digital Output Module |
| Compatible System | Honeywell Experion PKS C200 Series |
| Number of Outputs | 16 discrete outputs |
| Output Type | Isolated digital, relay-compatible |
| Output Voltage | 24 VDC nominal, 0–30 VDC max |
| Output Current | 0.5 A per channel |
| Isolation | Channel-to-channel isolation |
| Response Time | < 5 ms |
| Diagnostics | LED indicators for status and fault detection |
| Input Power | Supplied via C200 Series chassis |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -40–85°C (-40–185°F) |
| Humidity | 5–95% non-condensing |
| Form Factor | Standard C200 module size |
| Environmental Protection | Industrial-grade, vibration and EMI resistant |
FAQ
Q1: How many outputs does the CC-PDOD51 module provide?
A1: It provides 16 discrete, isolated digital outputs for precise control.
Q2: Which systems is this module compatible with?
A2: It is fully compatible with Honeywell Experion PKS C200 Series controllers.
Q3: Can it operate in harsh industrial environments?
A3: Yes, it is vibration-resistant, EMI-protected, and operates from 0–60°C.
Q4: How does the module indicate output status or faults?
A4: Built-in LED indicators display the status of each channel and any detected faults.
Q5: What is the response time for digital outputs?
A5: The module switches outputs in less than 5 milliseconds.
Q6: Is the module easy to integrate with existing C200 systems?
A6: Yes, its plug-in form factor allows seamless integration into standard C200 chassis.
